The Tecnoseal TEC-25 series consists of oval sacrificial plate anodes for marine applications, available in zinc, aluminium and magnesium. All versions measure 232 × 84 × 17 mm and feature a central Ø12.5 mm mounting hole and four additional Ø7 mm holes, with a 97 mm mounting dimension (i). The zinc TEC-25 weighs 1.60 kg, the aluminium TEC-25AL weighs 0.62 kg, and the magnesium TEC-25MG weighs 0.40 kg. The zinc model is also listed under the reference TEC-Z-404.
- Description
- Ask a Question
-

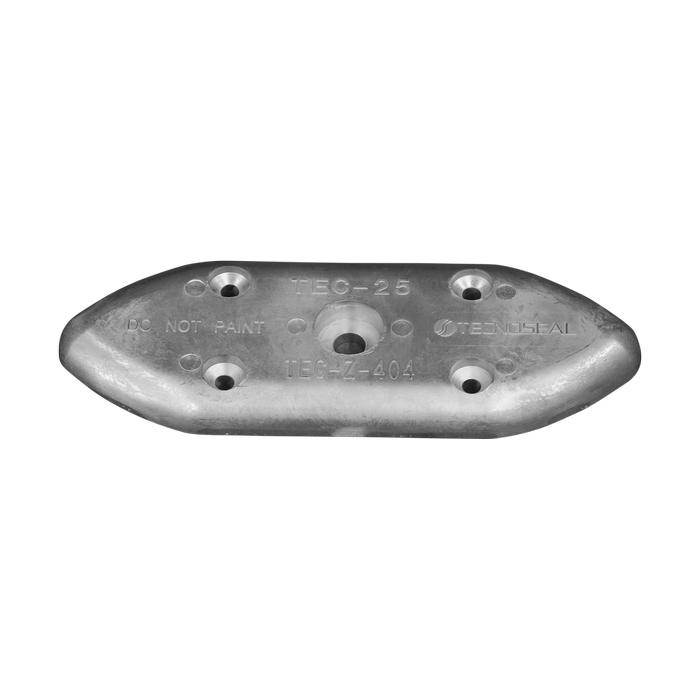

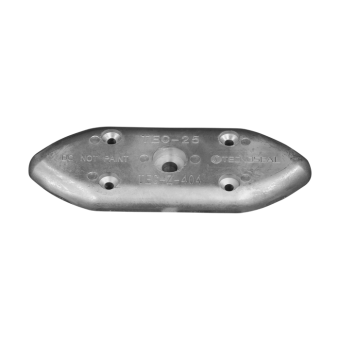

Tecnoseal TEC-25 Oval Plate Anode 232x84x17 mm – Zinc, Aluminium & Magnesium
The Tecnoseal TEC-25 series includes oval sacrificial plate anodes for marine corrosion protection applications. Three material versions are available: zinc (TEC-25), aluminium (TEC-25AL) and magnesium (TEC-25MG).
All three versions measure 232 × 84 × 17 mm and share the same mounting configuration. The catalogue specifies a 97 mm mounting dimension, Ø12.5 mm central hole and four additional Ø7 mm holes.
Key Features
- Manufacturer: Tecnoseal
- Product Series: TEC-25
- Alternative Reference: TEC-Z-404 (zinc model)
- Product Type: Oval sacrificial plate anode
- Available Materials: Zinc, Aluminium, Magnesium
- Application: Marine corrosion protection
- Dimensions: 232 × 84 × 17 mm
- Mounting Dimension (i): 97 mm
- Central Hole Diameter (Ø): 12.5 mm
- Additional Hole Diameter (Ø1): 7 mm
Technical Specifications
Parameter Specification Length (l) 232 mm / 9.13 in Width (a) 84 mm / 3.31 in Height (h) 17 mm / 0.67 in Mounting Dimension (i) 97 mm / 3.82 in Central Hole Diameter (Ø) 12.5 mm / 0.49 in Additional Hole Diameter (Ø1) 7 mm / 0.28 in
Available Models
Product Code Material Weight EAN TEC-25 Zinc 1.60 kg / 3.53 lbs 8033837068709 TEC-25AL Aluminium 0.62 kg / 1.37 lbs 8058774837218 TEC-25MG Magnesium 0.40 kg / 0.88 lbs 8052744982090
Marine Application
The Tecnoseal TEC-25 series provides sacrificial corrosion protection for electrically connected metallic components in marine installations.
The zinc, aluminium and magnesium versions allow selection of the anode material according to the vessel's operating water conditions and existing corrosion protection system.
Mounting and Replacement
All three models have identical dimensions and mounting arrangements. The catalogue specifies a 97 mm mounting dimension, a central Ø12.5 mm hole and four Ø7 mm additional holes.
Before ordering, compare the plate dimensions and mounting configuration with the existing anode.
Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One Tecnoseal TEC-25 series sacrificial plate anode in the selected material.
-
