The Tecnoseal 00282AL is an aluminium oval bolt-on hull anode without inserts, measuring 200 × 90 × 35 mm and weighing 1.20 kg (2.65 lbs). It features two 15 mm mounting holes with a centre-to-centre spacing of 80 mm. Designed for marine galvanic corrosion protection, this anode can be used as a replacement where the dimensions and mounting configuration match the existing installation.
- Description
- Ask a Question
-

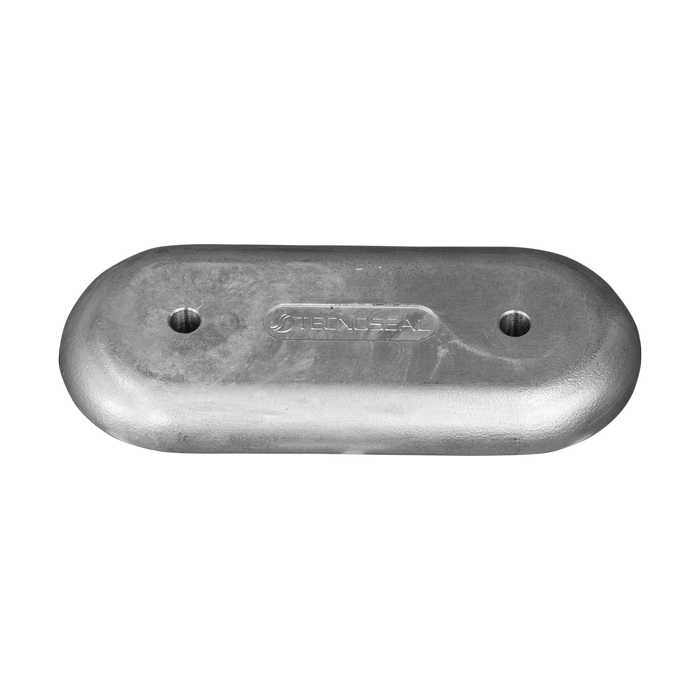

Tecnoseal 00282AL Aluminium Oval Bolt-On Hull Anode 200x90x35 mm H.C.80
The Tecnoseal 00282AL is an aluminium oval sacrificial anode designed for marine hull and underwater metal corrosion protection. It has an oval plate configuration with two mounting holes and no inserts.
The anode measures 200 × 90 × 35 mm, with an 80 mm centre-to-centre mounting distance and 15 mm hole diameter. Its catalogue weight is 1.20 kg.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00282AL
- Material: Aluminium
- Product Type: Oval bolt-on sacrificial anode
- Design: Without inserts
- Overall Dimensions: 200 × 90 × 35 mm
- Mounting Hole Diameter: 15 mm
- Hole Centre Distance: 80 mm
- Weight: 1.20 kg (2.65 lbs)
Technical Specifications
Parameter Specification Product Code 00282AL Material Aluminium Length (l) 200 mm (7.87 in) Width (a) 90 mm (3.54 in) Height (h) 35 mm (1.38 in) Mounting Centres (i) 80 mm (3.15 in) Hole Diameter (Ø) 15 mm (0.59 in) Weight 1.20 kg (2.65 lbs) EAN 8058774832367
Installation and Replacement
The Tecnoseal 00282AL is designed for bolt-on mounting using its two fixing holes. Before installation, compare the anode dimensions, hole diameter and 80 mm mounting centre distance with the existing fixing arrangement.
The anode should be mounted with suitable electrical contact to the metal component requiring galvanic corrosion protection. Inspect the anode periodically and replace it when sufficiently consumed.
Supply
One Tecnoseal 00282AL aluminium oval hull anode.
-
