The Tecnoseal 00280 is a zinc oval sacrificial plate anode without inserts for marine hull applications. It measures 268 × 120 × 30 mm and features two Ø14 mm mounting holes spaced 150 mm centre to centre (HC150). The anode weighs 4.50 kg (9.92 lbs) and is designed to provide galvanic corrosion protection for electrically connected metallic marine components.
- Description
- Ask a Question
-

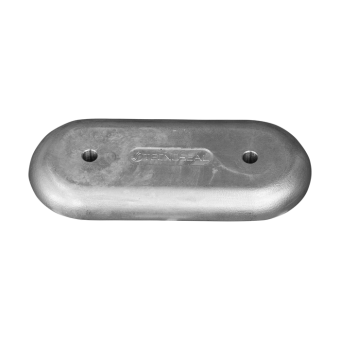

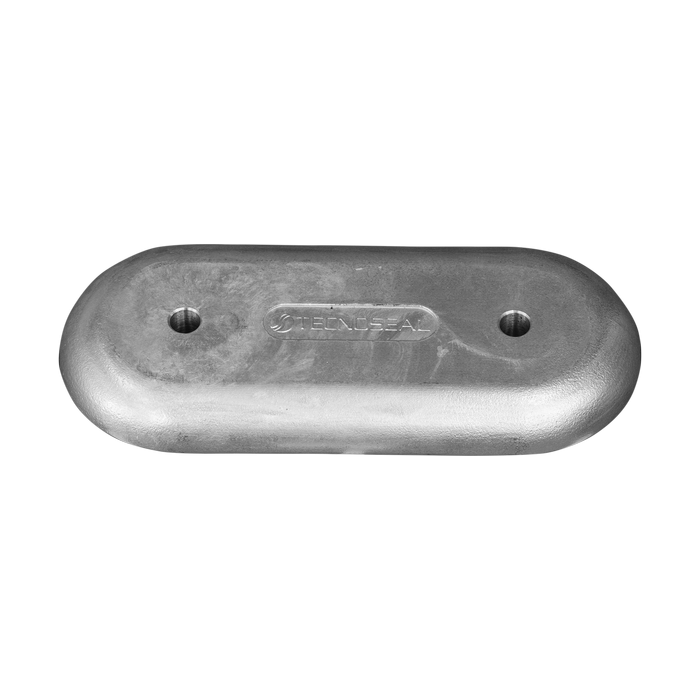

Tecnoseal 00280 Zinc Oval Hull Plate Anode without Insert 268x120x30 mm HC150
The Tecnoseal 00280 is an oval zinc sacrificial plate anode without inserts for marine hull applications. It has a two-hole mounting arrangement and is intended to help protect electrically connected metallic components against galvanic corrosion.
The anode measures 268 × 120 × 30 mm and features two Ø14 mm mounting holes with a centre-to-centre spacing of 150 mm (HC150). Its weight is 4.50 kg (9.92 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00280
- Product Type: Oval sacrificial plate anode without insert
- Material: Zinc
- Application: Marine hull
- Shape: Oval
- Dimensions: 268 × 120 × 30 mm
- Mounting: Two holes without inserts
- Mounting Hole Diameter: Ø14 mm
- Hole Spacing: 150 mm
- Weight: 4.50 kg / 4500 g
- EAN: 8059617810672
Technical Specifications
Parameter Specification Tecnoseal Code 00280 Material Zinc Length (l) 268 mm / 10.55 in Width (a) 120 mm / 4.72 in Height (h) 30 mm / 1.18 in Mounting Hole Spacing (i) 150 mm / 5.91 in Mounting Hole Diameter (Ø) 14 mm / 0.55 in Number of Mounting Holes 2 Construction Without insert Weight 4.50 kg / 9.92 lbs EAN 8059617810672
Marine Hull Application
The Tecnoseal 00280 is intended for marine hull installations requiring an oval zinc sacrificial anode with two mounting holes spaced 150 mm centre to centre.
The zinc material provides sacrificial corrosion protection for electrically connected metallic components when installed with proper electrical contact.
Mounting and Replacement
The plate has two Ø14 mm mounting holes without inserts. The mounting holes are spaced 150 mm centre to centre.
Before ordering, compare the overall dimensions, mounting hole diameter and hole spacing with the existing anode.
Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One Tecnoseal 00280 zinc oval sacrificial plate anode without insert.
-
