The Tecnoseal 00409/2 is a zinc sacrificial propeller anode designed for Dalla Pietà yacht propeller assemblies. It features a cylindrical body with a shaped internal mounting recess, an outside diameter of 147 mm (5.79 in), an overall height of 135 mm (5.31 in), and mounting dimensions of 123 mm (a) and 107 mm (b). The catalogue also specifies a mounting dimension (i) of 125 mm and a fixing hole diameter (Ø1) of 9 mm. Weighing 10.00 kg (22.05 lbs), this anode provides galvanic corrosion protection for compatible underwater propeller components.
- Description
- Ask a Question
-
Tecnoseal 00409/2 Dalla Pietà Zinc Propeller Anode Ø147 mm
The Tecnoseal 00409/2 is a zinc sacrificial propeller anode designed for Dalla Pietà yacht propeller assemblies. It provides galvanic corrosion protection for compatible underwater metallic propeller components.

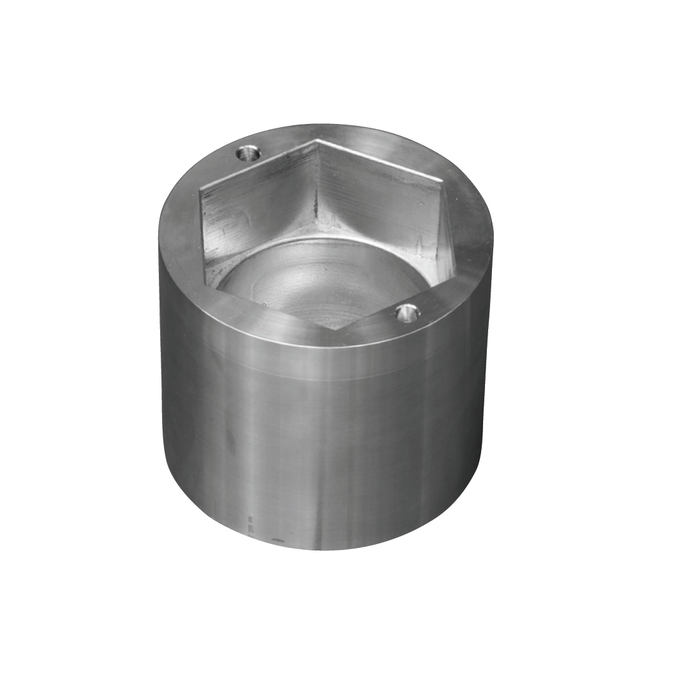

The anode features a cylindrical body with a shaped internal mounting recess. Its outside diameter is 147 mm and its overall height is 135 mm. The manufacturer's technical drawing specifies mounting dimensions of 123 mm (a), 107 mm (b), and 125 mm (i), together with a fixing hole diameter of 9 mm.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 00409/2 Application Dalla Pietà propeller assemblies Product Type Propeller sacrificial anode Material Zinc Outside Diameter (Ø) 147 mm (5.79 in) Overall Height (h) 135 mm (5.31 in) Dimension a 123 mm (4.84 in) Dimension b 107 mm (4.21 in) Mounting Dimension (i) 125 mm (4.92 in) Fixing Hole Diameter (Ø1) 9 mm (0.35 in) Weight 10.00 kg (22.05 lbs) EAN 8033837069522
Mounting Configuration
The Tecnoseal 00409/2 incorporates a shaped internal mounting recess and fixing holes visible in the manufacturer's drawing. The catalogue identifies dimensions a = 123 mm, b = 107 mm, i = 125 mm and Ø1 = 9 mm.
Before ordering, compare the outside diameter, overall height, internal mounting geometry and fixing hole arrangement with the existing Dalla Pietà propeller anode.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 00409/2 Dalla Pietà zinc propeller anode.
-
