The Tecnoseal 19014 is a zinc sacrificial propeller anode designed for Codecasa yacht propeller assemblies. It features a cylindrical body with a recessed mounting section, an outside diameter of 120 mm (4.72 in) and an overall height of 90 mm (3.54 in). The internal mounting dimensions include Ø1 of 88 mm, Ø2 of 55 mm and a recess depth (a) of 30 mm, with additional diameters Ø3 of 19 mm and Ø4 of 12.50 mm. The anode weighs 5.40 kg (11.90 lbs) and provides galvanic corrosion protection for compatible underwater propeller components.
- Description
- Ask a Question
-

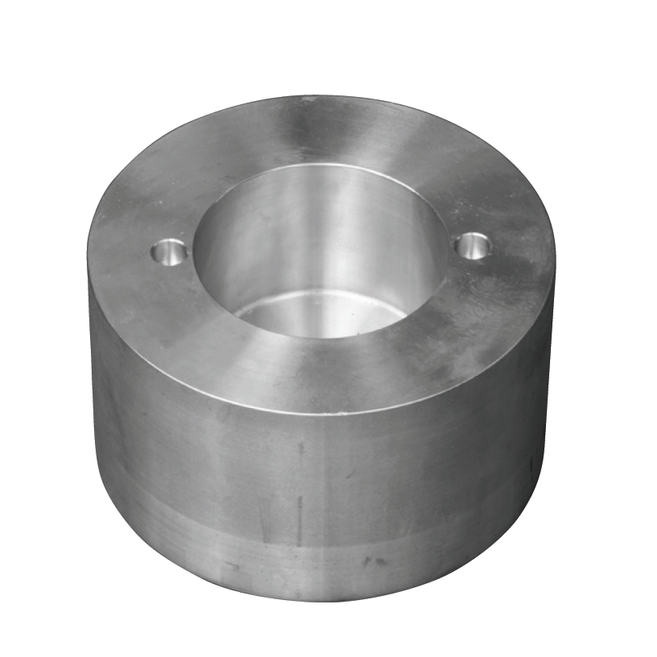

Tecnoseal 19014 Codecasa Zinc Propeller Anode Ø120 mm
The Tecnoseal 19014 is a zinc sacrificial propeller anode designed for Codecasa marine propeller assemblies. It provides galvanic corrosion protection for compatible underwater metallic propeller components.
The anode features a cylindrical profile with a recessed internal mounting section. Its outside diameter is 120 mm and its overall height is 90 mm. Additional mounting dimensions include diameters of 88 mm and 55 mm, with a recessed depth of 30 mm.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 19014 Application Codecasa propeller assemblies Product Type Propeller sacrificial anode Material Zinc Outside Diameter (Ø) 120 mm (4.72 in) Diameter Ø1 88 mm (3.46 in) Diameter Ø2 55 mm (2.17 in) Diameter Ø3 19 mm (0.75 in) Diameter Ø4 12.50 mm (0.49 in) Overall Height (h) 90 mm (3.54 in) Dimension a 30 mm (1.18 in) Weight 5.40 kg (11.90 lbs) EAN 8059617812027
Mounting Configuration
The Tecnoseal 19014 incorporates a recessed mounting section with multiple diameters specified in the manufacturer's technical drawing. The dimensions Ø1 = 88 mm and Ø2 = 55 mm define the internal mounting profile, while Ø3 = 19 mm and Ø4 = 12.50 mm identify additional features of the mounting arrangement.
Before ordering, compare the outside diameter, overall height and internal mounting dimensions with the existing anode and propeller assembly.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 19014 Codecasa zinc propeller anode.
-
