ID
1406453
$ 829.42
1-2 weeks delivery time
-
+
The Tecnoseal 00400COR is a zinc sacrificial propeller anode designed for Cortese propeller assemblies. It features a cylindrical body with a recessed mounting section, an outside diameter of 150 mm (5.91 in), an overall height (a) of 50 mm (1.97 in), and a recessed profile height (h) of 30 mm (1.18 in). The mounting section has a diameter Ø1 of 73 mm (2.87 in), and three fixing holes with a diameter Ø2 of 10.50 mm (0.41 in). Weighing 5.25 kg (11.57 lbs), the anode provides galvanic corrosion protection for compatible underwater propeller components.
- Description
- Ask a Question
-

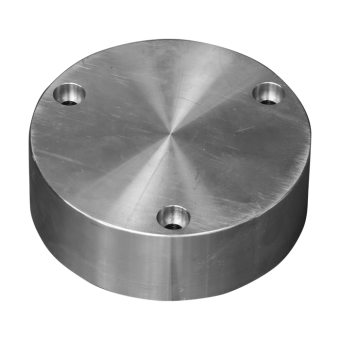

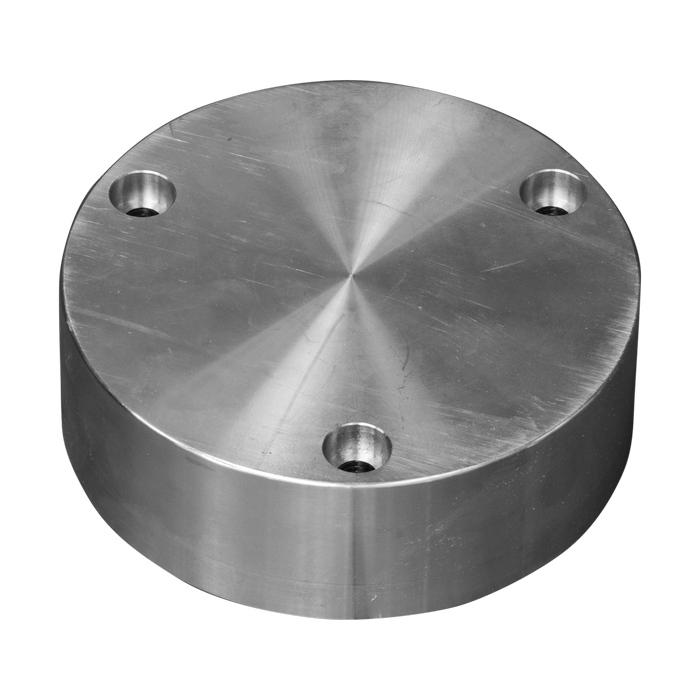

Tecnoseal 00400COR Cortese Zinc Propeller Anode Ø150 mm
The Tecnoseal 00400COR is a zinc sacrificial propeller anode designed for Cortese marine propeller assemblies. It provides galvanic corrosion protection for compatible underwater metallic propeller components.
The anode features a cylindrical design with a recessed central mounting section and three fixing holes. Its outside diameter is 150 mm, overall dimension (a) is 50 mm, and profile height (h) is 30 mm. The central mounting diameter is 73 mm, while the fixing holes measure 10.50 mm in diameter.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 00400COR Application Cortese propeller assemblies Product Type Propeller sacrificial anode Material Zinc Outside Diameter (Ø) 150 mm (5.91 in) Mounting Diameter (Ø1) 73 mm (2.87 in) Fixing Hole Diameter (Ø2) 10.50 mm (0.41 in) Dimension a 50 mm (1.97 in) Profile Height (h) 30 mm (1.18 in) Number of Fixing Holes 3 Weight 5.25 kg (11.57 lbs) EAN 8059617811570
Mounting Configuration
The Tecnoseal 00400COR incorporates a recessed mounting section with a diameter of 73 mm and three fixing holes measuring 10.50 mm in diameter. The circular body has an outside diameter of 150 mm.
Before ordering, verify the external diameter, mounting dimensions, fixing hole arrangement and overall profile against the existing Cortese propeller anode.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 00400COR Cortese zinc propeller anode.
-
