Tecnoseal 00479E and 00479EAL are sacrificial propeller anodes designed for compatible Ferretti yacht propeller assemblies, featuring a cylindrical body with an internal hexagonal mounting profile. Available in zinc and aluminium, both versions have an outside diameter of 155 mm (6.10 in), an overall height of 125 mm (4.92 in), dimension a of 75 mm (2.95 in), mounting diameter Ø1 of 116 mm (4.57 in), and Ø2 of 14.50 mm (0.57 in). The zinc version weighs 12.50 kg (27.56 lbs), while the aluminium version weighs 5.16 kg (11.38 lbs).
- Description
- Ask a Question
-

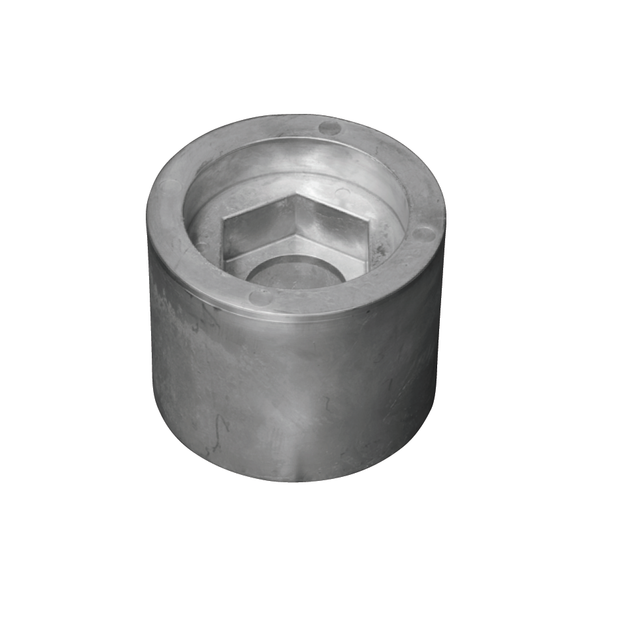

Tecnoseal 00479E / 00479EAL Ferretti Hexagonal Propeller Anode Ø155 mm – Zinc / Aluminium
The Tecnoseal 00479E and 00479EAL are sacrificial propeller anodes designed for compatible Ferretti yacht propeller assemblies. Available in zinc and aluminium, these anodes provide galvanic corrosion protection for underwater metallic propeller components.
Both models feature a cylindrical external body with a recessed internal hexagonal mounting profile. The outside diameter is 155 mm, and the overall height is 125 mm. Additional dimensions include a = 75 mm, Ø1 = 116 mm and Ø2 = 14.50 mm.
Technical Specifications
Parameter 00479E 00479EAL Manufacturer Tecnoseal Application Ferretti propeller assemblies Product Type Propeller sacrificial anode Material Zinc Aluminium Mounting Profile Internal hexagonal recess Outside Diameter (Ø) 155 mm (6.10 in) Diameter Ø1 116 mm (4.57 in) Diameter Ø2 14.50 mm (0.57 in) Overall Height (h) 125 mm (4.92 in) Dimension a 75 mm (2.95 in) Weight 12.50 kg (27.56 lbs) 5.16 kg (11.38 lbs) EAN 8059617816971 8059617816988
Available Materials
- Tecnoseal 00479E – Zinc: 12.50 kg sacrificial anode.
- Tecnoseal 00479EAL – Aluminium: 5.16 kg sacrificial anode.
Both versions share the same mounting configuration and overall dimensions. Select the appropriate material according to the vessel's cathodic protection requirements and the manufacturer's recommendations.
Mounting Configuration
The anode has a recessed internal hexagonal profile, as illustrated in the manufacturer's technical drawing. The drawing specifies the dimensions a = 75 mm, Ø1 = 116 mm and Ø2 = 14.50 mm.
Before ordering, compare the outside diameter, overall height, hexagonal recess and mounting dimensions with the existing Ferretti propeller anode.
Inspection and Replacement
Inspect the sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal Ferretti propeller anode in the selected material.
-
