ID
1406458
$ 68.86
1-2 weeks delivery time
-
+
The Tecnoseal 00476 is a zinc sacrificial propeller anode for Ferretti propeller assemblies with a specified shaft size of Ø45 mm. It features a tapered cylindrical body with rounded edges, an outside diameter of 61 mm (2.40 in) and an overall height of 76 mm (2.99 in). Additional mounting dimensions include Ø1 of 41 mm, Ø2 of 25 mm and h1 of 26 mm. Weighing 0.95 kg (2.09 lbs), the anode is designed to provide galvanic corrosion protection for compatible underwater propeller components.
- Description
- Ask a Question
-
Tecnoseal 00476 Ferretti Zinc Propeller Anode for Ø45 mm Shaft – Rounded Edge
The Tecnoseal 00476 is a zinc sacrificial propeller anode designed for Ferretti propeller assemblies with a specified shaft size of Ø45 mm. It provides galvanic corrosion protection for compatible underwater metallic propeller components.

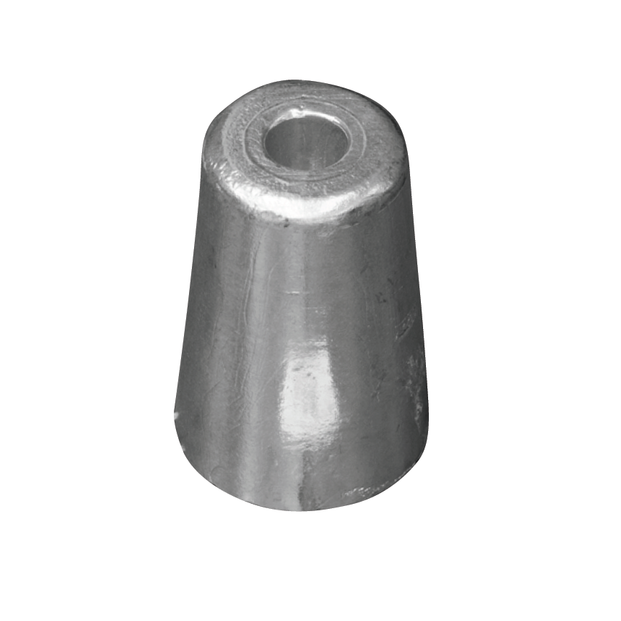

This anode features a tapered cylindrical profile with rounded edges and an internal mounting recess. The outside diameter is 61 mm, and the overall height is 76 mm. Additional dimensions specified by the manufacturer include Ø1 = 41 mm, Ø2 = 25 mm and h1 = 26 mm.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 00476 Application Ferretti propeller assemblies Specified Shaft Size Ø45 mm Product Type Propeller sacrificial anode Material Zinc Design Tapered body with rounded edge Outside Diameter (Ø) 61 mm (2.40 in) Diameter Ø1 41 mm (1.61 in) Diameter Ø2 25 mm (0.98 in) Overall Height (h) 76 mm (2.99 in) Dimension h1 26 mm (1.02 in) Weight 0.95 kg (2.09 lbs) EAN 8033837062400
Mounting Configuration
The Tecnoseal 00476 incorporates a stepped internal recess, with mounting dimensions Ø1 = 41 mm and Ø2 = 25 mm. The manufacturer's drawing also specifies an internal depth dimension h1 of 26 mm.
The catalogue lists this anode for a shaft size of Ø45 mm. Before ordering, verify the existing anode's mounting geometry, outside diameter and height to confirm compatibility with the propeller assembly.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 00476 Ferretti zinc propeller anode.
-
