Tecnoseal 00478 and 00478AL are sacrificial propeller anodes for Ferretti 620 propeller assemblies, with a specified shaft size of Ø55–70 mm. Available in zinc and aluminium, both versions feature a tapered cylindrical body with rounded edges, an outside diameter of 59 mm, an overall height of 88 mm and an internal recess depth (h1) of 44 mm. The mounting diameters are Ø1 = 40 mm and Ø2 = 18 mm. The zinc version weighs 1.08 kg (2.38 lbs), while the aluminium version weighs 0.44 kg (0.97 lbs).
- Description
- Ask a Question
-
Tecnoseal 00478 Ferretti 620 Propeller Zinc Anode for Ø55–70 mm Shaft
The Tecnoseal 00478 and 00478AL are sacrificial propeller anodes designed for Ferretti 620 marine propeller assemblies with a specified shaft size of Ø55–70 mm. They are available in zinc and aluminium versions for galvanic corrosion protection of compatible underwater metallic components.

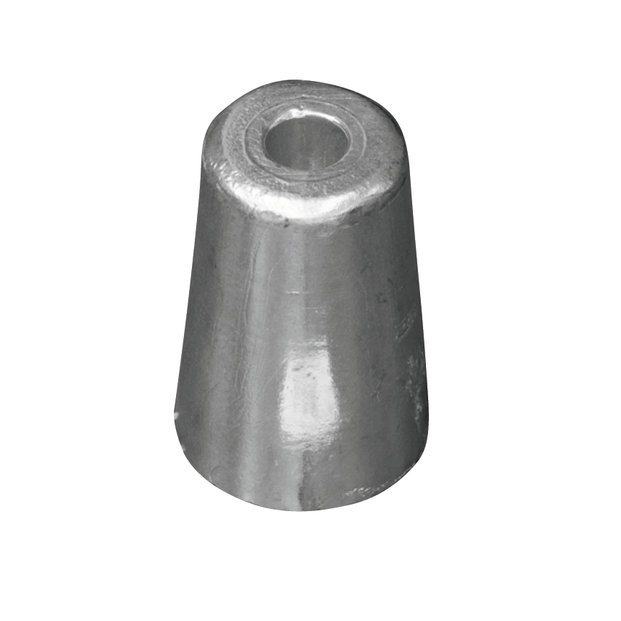

Both anodes feature a tapered cylindrical body with rounded edges and a stepped internal mounting recess. The outside diameter measures 59 mm, with an overall height of 88 mm. Additional mounting dimensions include Ø1 = 40 mm, Ø2 = 18 mm and h1 = 44 mm.
Technical Specifications
Parameter 00478 00478AL Manufacturer Tecnoseal Application Ferretti 620 propeller assemblies Specified Shaft Size Ø55–70 mm Product Type Propeller sacrificial anode Material Zinc Aluminium Design Tapered body with rounded edge Outside Diameter (Ø) 59 mm (2.32 in) Diameter Ø1 40 mm (1.57 in) Diameter Ø2 18 mm (0.71 in) Overall Height (h) 88 mm (3.46 in) Dimension h1 44 mm (1.73 in) Weight 1.08 kg (2.38 lbs) 0.44 kg (0.97 lbs) EAN 8033837062424 8052530703861
Available Materials
- Tecnoseal 00478 – Zinc: 1.08 kg sacrificial anode.
- Tecnoseal 00478AL – Aluminium: 0.44 kg sacrificial anode.
Both versions share the same external dimensions and mounting configuration. Select the appropriate anode material according to the vessel's corrosion protection requirements and the manufacturer's recommendations.
Mounting Configuration
The anodes feature a stepped internal recess with mounting diameters Ø1 = 40 mm and Ø2 = 18 mm, together with a recess dimension h1 of 44 mm.
The manufacturer's catalogue specifies a shaft size range of Ø55–70 mm. Before ordering, compare the anode dimensions, mounting profile and shaft specification with the existing Ferretti propeller assembly.
Inspection and Replacement
Inspect the sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic components requiring corrosion protection.
Supply
One Tecnoseal Ferretti 620 propeller anode in the selected material.
-
