ID
1406455
$ 58.42
1-2 weeks delivery time
Size:
- 51
- 74
Item:
- 0.59 kg
- 1.89 kg

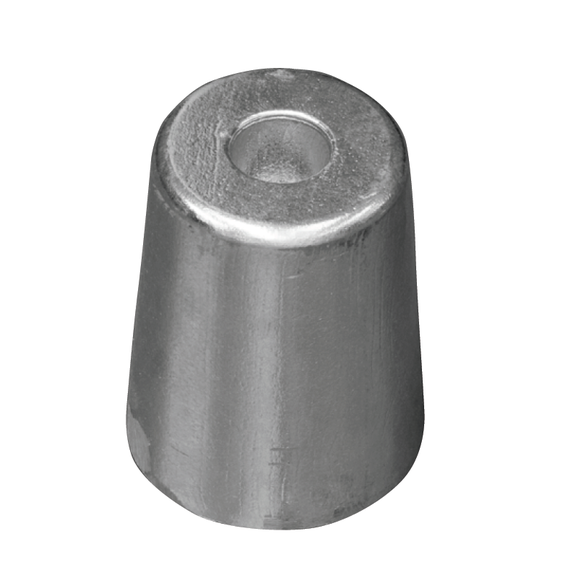

Tecnoseal Ferretti zinc sacrificial propeller anodes with guide holes are designed for compatible Ferretti marine propeller assemblies. Available in two sizes, the 00475 model measures 51 mm in diameter and 67 mm in height, weighing 0.59 kg, while the 00478/1 measures 74 mm in diameter and 96 mm in height, weighing 1.89 kg. Both feature a tapered cylindrical profile, an internal mounting recess and a 4.50 mm guide hole. These anodes provide galvanic corrosion protection for compatible underwater propeller components.
- Description
- Ask a Question
-
Tecnoseal Ferretti Zinc Propeller Anodes with Guide Hole Ø51–74 mm
The Tecnoseal Ferretti zinc propeller anodes are sacrificial anodes designed for compatible Ferretti marine propeller assemblies. They provide galvanic corrosion protection for underwater metallic propeller components.
These anodes feature a tapered cylindrical body with an internal mounting recess and a guide hole. Two versions are available: Tecnoseal 00475 (Ø51 mm) and Tecnoseal 00478/1 (Ø74 mm). Both versions have a 4.50 mm guide hole, while their overall dimensions and mounting diameters differ.
Technical Specifications
Parameter 00475 00478/1 Manufacturer Tecnoseal Application Ferretti propeller assemblies Material Zinc Product Type Propeller sacrificial anode with guide hole Overall Diameter (Ø) 51 mm 74 mm Diameter Ø1 35 mm 55 mm Diameter Ø2 15 mm 22 mm Guide Hole (Ø3) 4.50 mm 4.50 mm Dimension a 25 mm 37 mm Overall Height (h) 67 mm 96 mm Weight 0.59 kg (1.30 lbs) 1.89 kg (4.17 lbs) EAN 8033837062394 8033837068242
Mounting Configuration
Both anodes feature a tapered external profile and a stepped internal mounting recess. The manufacturer's drawing identifies the mounting dimensions as Ø1 and Ø2, together with the smaller Ø3 guide hole.
- Tecnoseal 00475: Ø51 mm, height 67 mm, mounting diameters 35 mm and 15 mm.
- Tecnoseal 00478/1: Ø74 mm, height 96 mm, mounting diameters 55 mm and 22 mm.
Before ordering, compare the outside diameter, overall height and internal mounting dimensions with the existing Ferretti propeller anode.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal Ferretti zinc propeller anode in the selected size.
-
