Tecnoseal Ferretti sacrificial propeller anodes are designed for compatible Ferretti yacht propeller assemblies and are available in zinc and aluminium versions. The range includes outside diameters of 155 mm, 202 mm and 235 mm, with corresponding heights of 125 mm, 161 mm and 160 mm. Each anode features a cylindrical body with a recessed internal mounting profile. Depending on the selected model and material, weights range from 5.00 kg to 36.53 kg. The anodes provide sacrificial corrosion protection for compatible underwater propeller components.
- Description
- Ask a Question
-
Tecnoseal Ferretti Zinc & Aluminium Propeller Anodes Ø155–235 mm

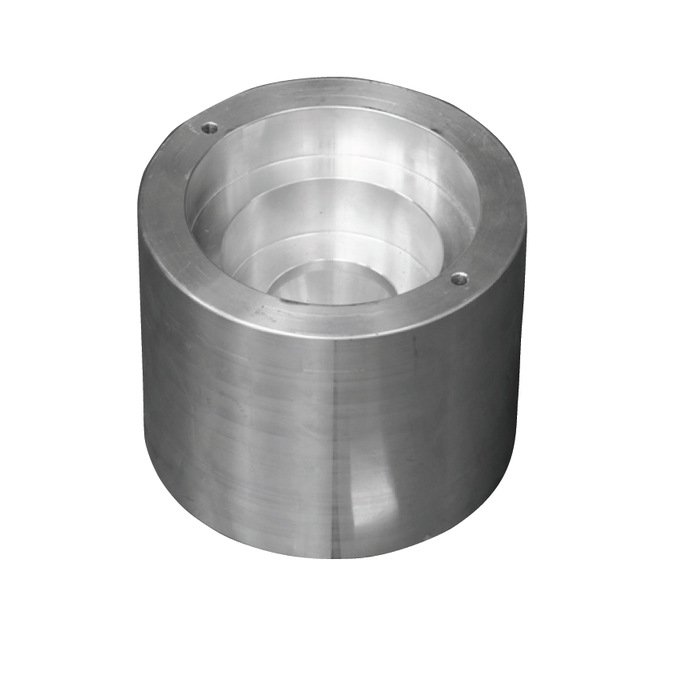

The Tecnoseal Ferretti propeller anodes are sacrificial anodes designed for compatible Ferretti yacht propeller assemblies. Available in zinc and aluminium, they provide galvanic corrosion protection for underwater metallic propeller components.
The range includes three external diameters: 155 mm, 202 mm and 235 mm. Each anode has a cylindrical body with a recessed internal mounting section. Dimensions and weights vary according to the selected version.
Technical Specifications
Product Code Material Ø (mm) Ø1 (mm) h (mm) i (mm) Weight (kg) 00479 Zinc 155 116 125 133 12.50 00479AL Aluminium 155 116 125 133 5.00 00434 Zinc 202 165 161 180 26.10 00434AL Aluminium 202 165 161 180 10.43 00479-1 Zinc 235 183 160 210 36.53
Available Variants
- 00479 / 00479AL: Ø155 mm, height 125 mm, mounting diameter Ø1 = 116 mm; zinc or aluminium.
- 00434 / 00434AL: Ø202 mm, height 161 mm, mounting diameter Ø1 = 165 mm; zinc or aluminium.
- 00479-1: Ø235 mm, height 160 mm, mounting diameter Ø1 = 183 mm; zinc.
Mounting Configuration
These Ferretti propeller anodes feature a cylindrical external profile and recessed internal mounting geometry. The manufacturer's technical drawing identifies the overall diameter (Ø), internal mounting diameter (Ø1), height (h), and dimension (i).
Before ordering, compare all four dimensions with the existing anode and confirm compatibility with the specific Ferretti propeller assembly. The external diameter alone is not sufficient to establish interchangeability.
Material Selection
Zinc and aluminium versions are available for selected sizes. The appropriate material should be chosen according to the vessel's corrosion protection requirements and the manufacturer's recommendations.
Inspection and Replacement
Inspect sacrificial anodes periodically for material consumption and replace them when necessary. During installation, ensure suitable electrical contact with the metallic components requiring protection.
Supply
One Tecnoseal Ferretti propeller anode in the selected size and material.
-
