The Tecnoseal 19020 is a zinc sacrificial propeller anode for Canados 70 yachts, designed to protect compatible underwater propeller components against galvanic corrosion. It features a circular body with an outside diameter of 152 mm, an overall dimension (a) of 60 mm, a recessed profile height (h) of 55 mm, and mounting diameters of 94 mm and 80 mm. Two fixing holes measure 10.50 mm in diameter, with a 125 mm centre-to-centre distance. The anode weighs 6.87 kg (15.15 lbs).
- Description
- Ask a Question
-

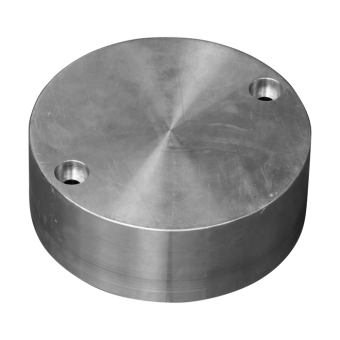

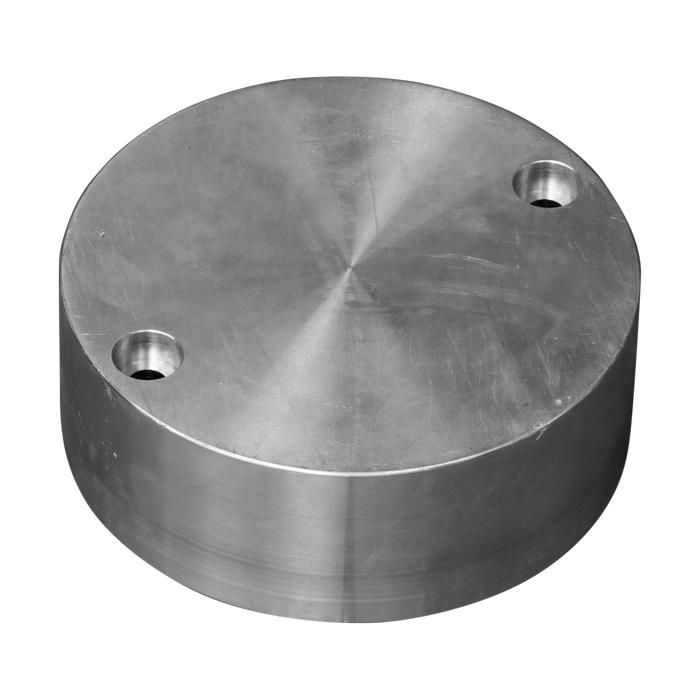

Tecnoseal 19020 Canados 70 Zinc Propeller Anode Ø152 mm
The Tecnoseal 19020 is a zinc sacrificial propeller anode designed for Canados 70 yachts. It provides galvanic corrosion protection for compatible underwater metallic propeller components.
The anode has a circular cylindrical design with a recessed mounting section and two fixing holes. Its outside diameter is 152 mm, with additional diameters of 94 mm and 80 mm. The mounting holes are 10.50 mm in diameter, with a centre-to-centre distance of 125 mm.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 19020 Application Canados 70 Product Type Propeller sacrificial anode Material Zinc Outside Diameter (Ø) 152 mm (5.98 in) Diameter Ø1 94 mm (3.70 in) Diameter Ø2 80 mm (3.15 in) Fixing Hole Diameter (Ø3) 10.50 mm (0.41 in) Dimension a 60 mm (2.36 in) Dimension h 55 mm (2.17 in) Hole Centre Distance (i) 125 mm (4.92 in) Weight 6.87 kg (15.15 lbs) EAN 8059617812034
Mounting Configuration
The Tecnoseal 19020 features two mounting holes with a diameter of 10.50 mm and a centre-to-centre spacing of 125 mm. The recessed mounting section is defined by diameters Ø1 and Ø2, measuring 94 mm and 80 mm respectively.
Before ordering, verify the outside diameter, mounting hole spacing and recessed dimensions against the existing propeller anode.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic components requiring corrosion protection.
Supply
One Tecnoseal 19020 Canados 70 zinc propeller anode.
-
