The Tecnoseal 19013 is a zinc sacrificial propeller anode designed for Codecasa yacht propeller assemblies. It features a cylindrical body with a recessed mounting section, an outside diameter of 180 mm, mounting diameters of 117 mm and 90 mm, and four 10 mm fixing holes. Additional catalogue dimensions are a = 29 mm, b = 83 mm and i = 140 mm. Weighing 16.00 kg (35.27 lbs), the anode provides sacrificial corrosion protection for compatible underwater propeller components.
- Description
- Ask a Question
-

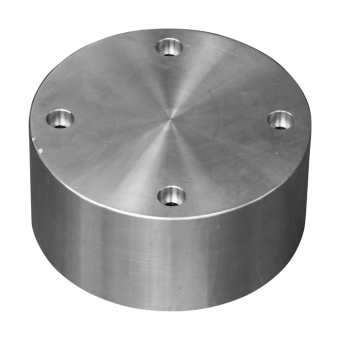

Tecnoseal 19013 Codecasa Zinc Propeller Anode Ø180 mm
The Tecnoseal 19013 is a zinc sacrificial anode designed for Codecasa marine propeller assemblies. It provides galvanic corrosion protection for compatible underwater metallic propeller components.

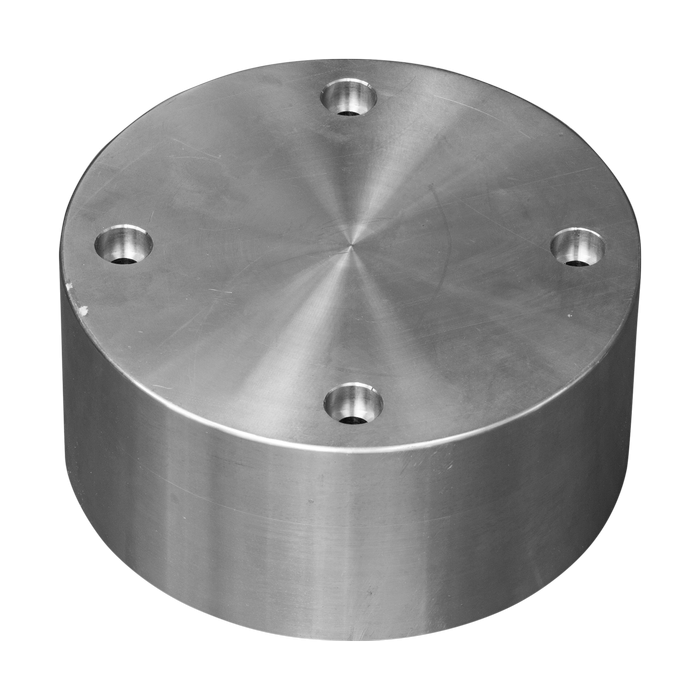

The anode features a cylindrical design with a recessed central mounting section and four fixing holes. Its outside diameter is 180 mm, with additional diameters of 117 mm and 90 mm. The mounting holes measure 10 mm in diameter, and the catalogue specifies a mounting dimension of 140 mm.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 19013 Application Codecasa propeller assemblies Product Type Propeller sacrificial anode Material Zinc Outside Diameter (Ø) 180 mm (7.09 in) Diameter Ø1 117 mm (4.61 in) Diameter Ø2 90 mm (3.54 in) Fixing Hole Diameter (Ø3) 10 mm (0.39 in) Dimension a 29 mm (1.14 in) Dimension b 83 mm (3.27 in) Mounting Dimension (i) 140 mm (5.51 in) Weight 16.00 kg (35.27 lbs) EAN 8059617812010
Mounting Configuration
The Tecnoseal 19013 has a recessed mounting section with two specified diameters, Ø1 = 117 mm and Ø2 = 90 mm. Four fixing holes of 10 mm diameter are distributed around the circular body.
The manufacturer's drawing also identifies dimensions a = 29 mm, b = 83 mm and i = 140 mm. These dimensions should be checked against the existing anode before replacement.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 19013 Codecasa zinc propeller anode.
-
