The Tecnoseal 19012-2 is a zinc sacrificial propeller anode designed for Azimut-Benetti marine propeller assemblies. It features a cylindrical body with a recessed mounting section, an outside diameter of 220 mm (8.66 in), an overall height of 110 mm (4.33 in), and four fixing holes with a diameter of 9 mm (0.35 in). Weighing 19.60 kg (43.21 lbs), this anode provides sacrificial corrosion protection for compatible underwater propeller components.
- Description
- Ask a Question
-

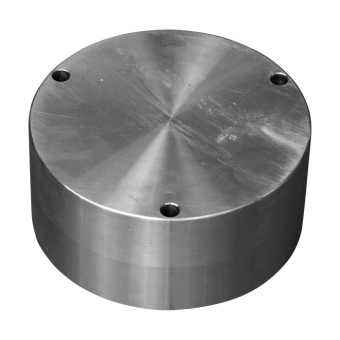

Tecnoseal 19012-2 Azimut-Benetti Zinc Propeller Anode Ø220 mm
The Tecnoseal 19012-2 is a zinc sacrificial anode for Azimut-Benetti marine propeller assemblies. It is designed to provide galvanic corrosion protection for compatible underwater metallic propeller components.

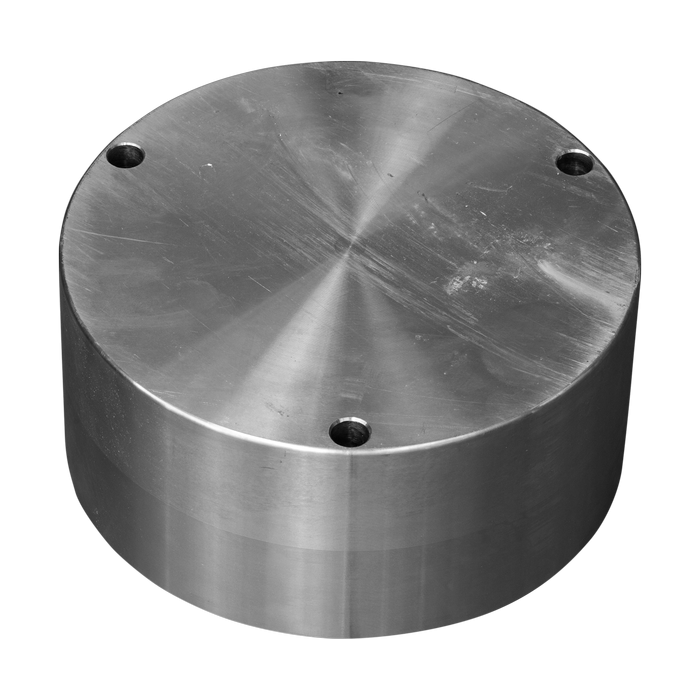

The anode features a cylindrical body with a recessed mounting section and four fixing holes. Its outside diameter is 220 mm, overall height is 110 mm, and each fixing hole has a diameter of 9 mm. The catalogue weight is 19.60 kg.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 19012-2 Application Azimut-Benetti propeller assemblies Product Type Propeller sacrificial anode Material Zinc Outside Diameter (Ø) 220 mm (8.66 in) Overall Height (h) 110 mm (4.33 in) Fixing Hole Diameter (Ø1) 9 mm (0.35 in) Number of Fixing Holes 4 Weight 19.60 kg (43.21 lbs) EAN 8059617812003
Mounting Configuration
The Tecnoseal 19012-2 has four mounting holes positioned around the upper circular section. The holes have a diameter of 9 mm, as specified in the manufacturer's catalogue.
The recessed mounting section is visible in the technical drawing, but its internal diameter and mounting hole spacing are not specified in the available catalogue information.
Before ordering, verify the external diameter, overall height and mounting configuration against the existing anode and propeller assembly.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. Ensure suitable electrical contact with the metallic component requiring corrosion protection during installation.
Supply
One Tecnoseal 19012-2 Azimut-Benetti zinc propeller anode.
-
