ID
1406447
$ 1,434.04
1-2 weeks delivery time
-
+
The Tecnoseal 19012-1 is a zinc sacrificial propeller anode for Azimut-Benetti marine propeller assemblies. It features a circular flanged design with an outside diameter of 180 mm (7.09 in), a height of 40 mm (1.57 in), an additional diameter Ø1 of 140 mm (5.51 in), and four 7 mm (0.28 in) fixing holes. The catalogue mounting dimension (i) is 159 mm, dimension (a) is 20 mm, and the anode weighs 5.80 kg (12.79 lbs). It is intended to provide galvanic corrosion protection for compatible underwater propeller components.
- Description
- Ask a Question
-

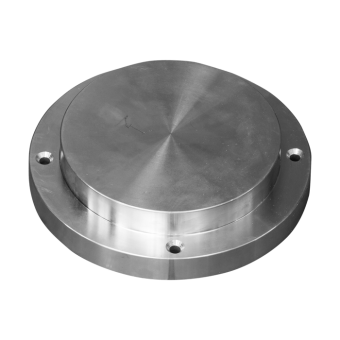

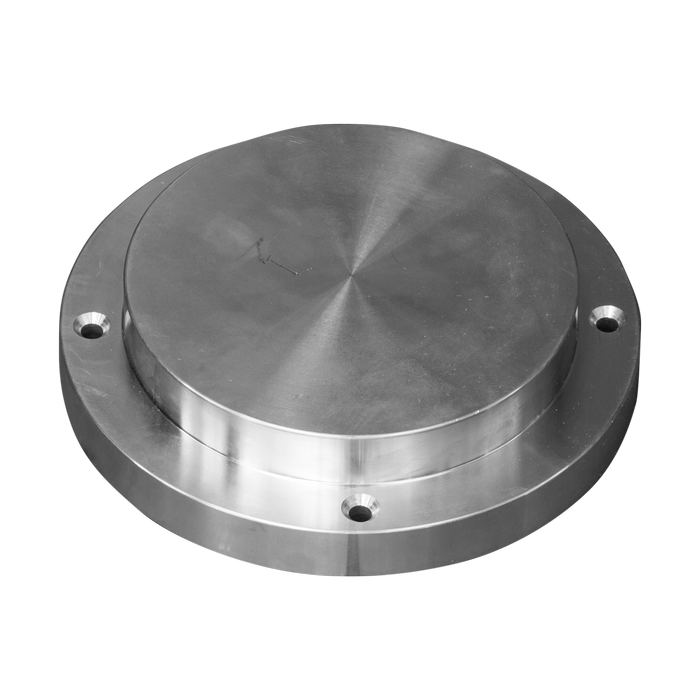

Tecnoseal 19012-1 Azimut-Benetti Zinc Propeller Anode Ø180 mm
The Tecnoseal 19012-1 is a zinc sacrificial anode designed for Azimut-Benetti marine propeller assemblies. It is intended to provide galvanic corrosion protection for compatible underwater metallic propeller components.
The anode features a circular design with a raised central section and a mounting flange. Its outside diameter is 180 mm, overall height is 40 mm, and the additional diameter Ø1 measures 140 mm. Four fixing holes with a diameter of 7 mm are arranged around the flange.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 19012-1 Application Azimut-Benetti propeller assemblies Product Type Propeller sacrificial anode Material Zinc Outside Diameter (Ø) 180 mm (7.09 in) Diameter Ø1 140 mm (5.51 in) Fixing Hole Diameter (Ø2) 7 mm (0.28 in) Overall Height (h) 40 mm (1.57 in) Dimension a 20 mm (0.79 in) Mounting Dimension (i) 159 mm (6.26 in) Weight 5.80 kg (12.79 lbs) EAN 8059617811990
Mounting Configuration
The Tecnoseal 19012-1 incorporates four fixing holes positioned around its circular flange. The manufacturer's drawing specifies a mounting dimension (i) of 159 mm and a fixing hole diameter of 7 mm.
Before ordering, compare the outside diameter, mounting dimensions, fixing hole arrangement and overall height with the existing anode and the propeller assembly.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 19012-1 Azimut-Benetti zinc propeller anode.
-
