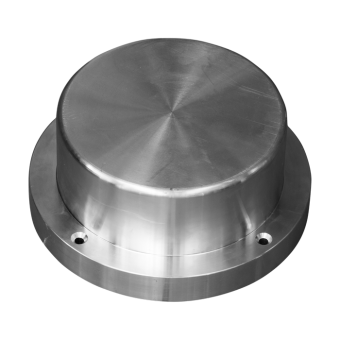

Tecnoseal 19012 Azimut-Benetti DETRA Zinc Propeller Anode Ø160 mm
The Tecnoseal 19012 is a zinc sacrificial anode designed for Azimut-Benetti marine propeller assemblies. It provides galvanic corrosion protection for compatible underwater metallic propeller components.

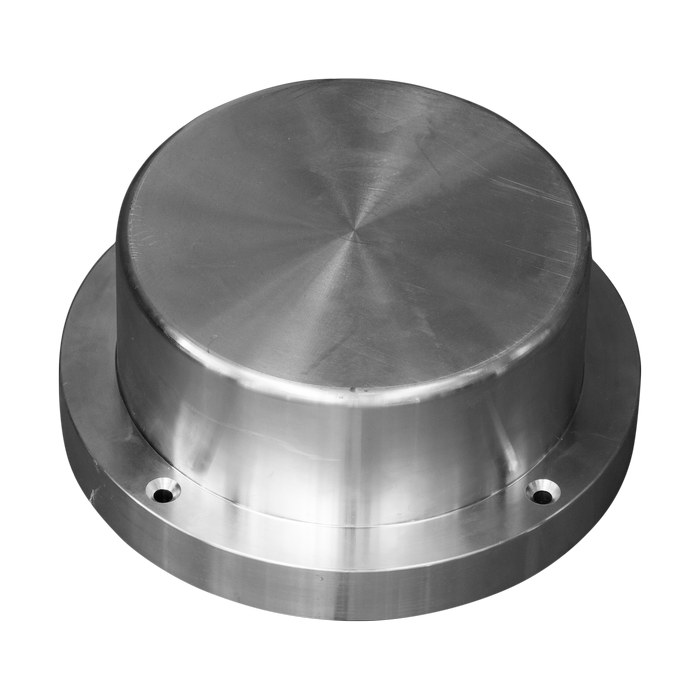

The anode features a cylindrical profile with a flanged mounting section. Its specified outside diameter is 160 mm, with additional diameters of 118 mm and 140 mm. Four fixing holes are arranged around the mounting flange, with a catalogue dimension of 180 mm for the mounting pattern.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 19012 Application Azimut-Benetti propeller assemblies Product Type Propeller sacrificial anode Material Zinc Diameter (Ø) 160 mm (6.30 in) Diameter Ø1 118 mm (4.65 in) Diameter Ø2 140 mm (5.51 in) Mounting Hole Diameter (Ø3) 6.50 mm (0.26 in) Dimension a 57 mm (2.24 in) Mounting Pattern (i) 180 mm (7.09 in) Weight 10.15 kg (22.38 lbs) EAN 8059617811983
Mounting Configuration
The Tecnoseal 19012 has a flanged cylindrical design with four mounting holes of 6.50 mm diameter, positioned around the flange. The manufacturer's drawing specifies a mounting dimension (i) of 180 mm.
Before ordering, verify the diameters Ø, Ø1 and Ø2, the mounting hole arrangement and dimension a against the existing anode and propeller assembly.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 19012 Azimut-Benetti zinc propeller anode.
-
