ID
1406441
$ 761.58
1-2 weeks delivery time
Type:
- Zinc
Size:
- 143
- 178
- 240
Item:
- 15.50 kg
- 4.87 kg
- 7.52 kg

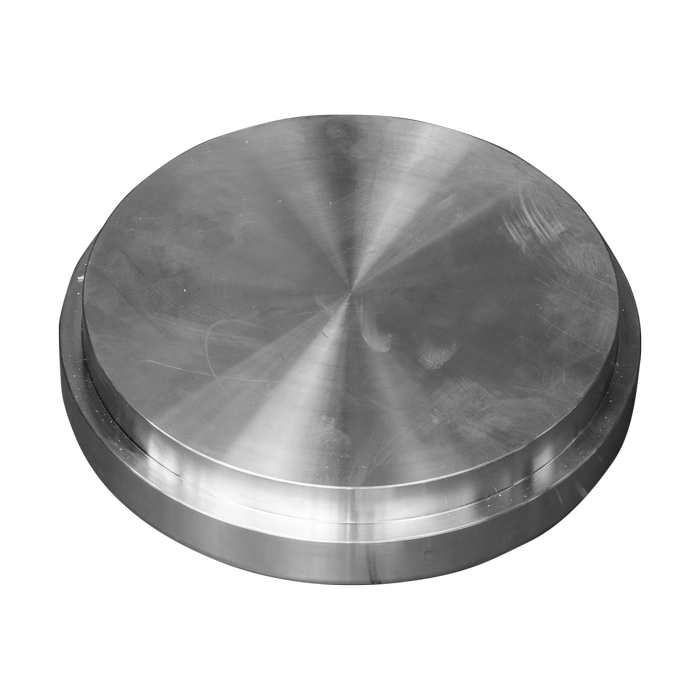

The Tecnoseal DETRA series zinc propeller anodes are designed for Azimut-Benetti marine propeller assemblies, providing sacrificial protection against galvanic corrosion. Available in three sizes with outside diameters of 143, 178 and 240 mm, the anodes feature a circular profile with a recessed mounting base. Depending on the model, overall height ranges from 47 to 52 mm, base diameter from 127 to 220 mm, and weight from 4.87 to 15.50 kg. Select the appropriate size according to the dimensions of the existing propeller anode.
- Description
- Ask a Question
-

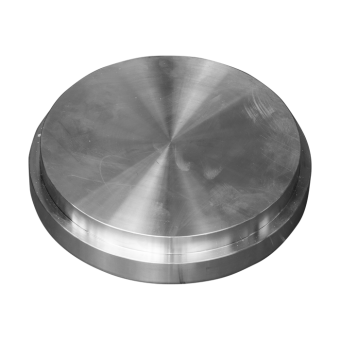

Tecnoseal 19011 / 19012-3 / 19012-7 Azimut-Benetti DETRA Zinc Propeller Anodes Ø143–240 mm
The Tecnoseal DETRA series consists of zinc sacrificial propeller anodes for Azimut-Benetti marine applications. These anodes are designed to provide galvanic corrosion protection for compatible underwater propeller components.
The range includes three models with outside diameters of 143 mm, 178 mm and 240 mm. Each anode features a circular, rounded profile with a recessed mounting base. Dimensions and weights vary depending on the selected model.
Key Features
- Manufacturer: Tecnoseal
- Series: DETRA
- Application: Azimut-Benetti propeller assemblies
- Product Type: Propeller sacrificial anode
- Material: Zinc
- Available Outside Diameters: 143, 178 and 240 mm
- Mounting Design: Recessed circular base
- Weight Range: 4.87–15.50 kg
Technical Specifications by Model
Parameter 19011 19012-3 19012-7 Material Zinc Zinc Zinc Outside Diameter (Ø) 240 mm 143 mm 178 mm Base Diameter (Ø1) 220 mm 127 mm 160 mm Height (h) 52 mm 47 mm 47 mm Dimension (a) 20 mm 18 mm 18 mm Weight 15.50 kg 4.87 kg 7.52 kg EAN 8033837068310 8052744980560 8058774839472
Dimensions and Mounting
All three DETRA anodes share a similar circular design, but their dimensions are not interchangeable. The following measurements should be checked when selecting a replacement:
- Ø: Maximum outside diameter of the anode.
- Ø1: Diameter of the recessed mounting base.
- h: Overall anode height.
- a: Additional mounting profile dimension shown in the manufacturer drawing.
Available Models
- Tecnoseal 19011: Ø240 mm, 52 mm height, 15.50 kg.
- Tecnoseal 19012-3: Ø143 mm, 47 mm height, 4.87 kg.
- Tecnoseal 19012-7: Ø178 mm, 47 mm height, 7.52 kg.
Selection and Replacement
Select the appropriate DETRA zinc anode by comparing the outside diameter, recessed base diameter and height against the existing anode and the propeller assembly's mounting requirements.
Inspect sacrificial anodes periodically for material consumption and replace them when necessary. Ensure suitable electrical contact with the metallic components requiring corrosion protection.
Supply
One Tecnoseal DETRA zinc propeller anode in the selected size.
-
