The Tecnoseal 19011-1 is a zinc sacrificial propeller anode for Azimut-Benetti marine propeller assemblies, designed to protect underwater metallic components against galvanic corrosion. It has an outside diameter of 164 mm, an overall height of 100 mm and a recessed mounting section with a diameter of 114 mm. The anode features two 16.50 mm fixing holes with 140 mm centre-to-centre spacing, a recess dimension (a) of 50 mm and a weight of 11.10 kg (24.47 lbs).
- Description
- Ask a Question
-

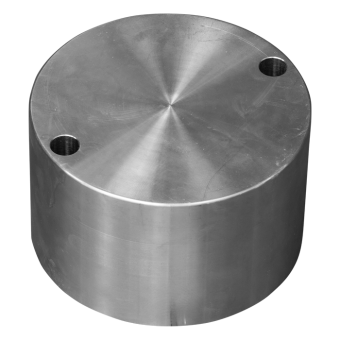

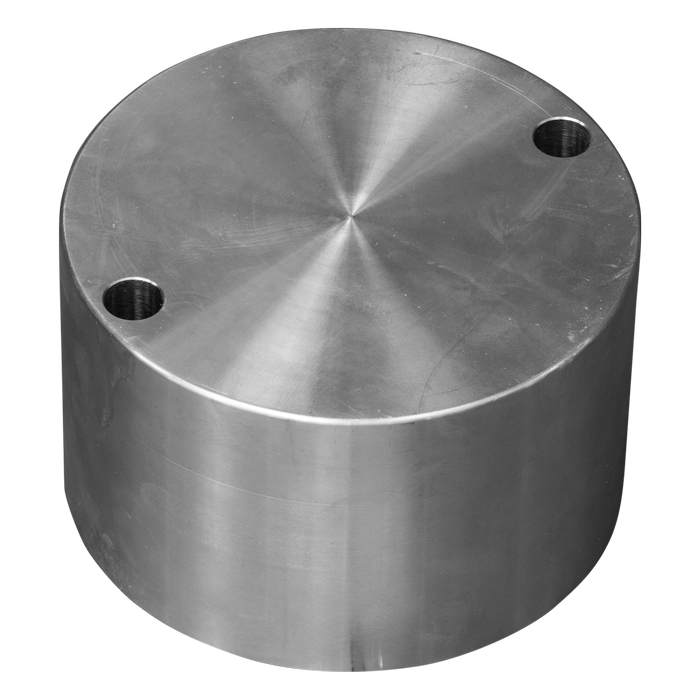

Tecnoseal 19011-1 Azimut-Benetti Zinc Propeller Anode Ø164 mm H.C.140
The Tecnoseal 19011-1 is a zinc sacrificial anode designed for Azimut-Benetti marine propeller assemblies. It provides galvanic corrosion protection for compatible underwater metallic propeller components.
The anode features a cylindrical design with a recessed mounting section and two fixing holes. Its outside diameter is 164 mm, with an overall height of 100 mm, a 114 mm recessed diameter and 140 mm mounting hole centre distance.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 19011-1 Application Azimut-Benetti propeller assemblies Product Type Propeller sacrificial anode Material Zinc Outside Diameter (Ø) 164 mm (6.46 in) Recessed Diameter (Ø1) 114 mm (4.49 in) Mounting Hole Diameter (Ø2) 16.50 mm (0.65 in) Overall Height (h) 100 mm (3.94 in) Recess Dimension (a) 50 mm (1.97 in) Hole Centre Distance (i) 140 mm (5.51 in) Weight 11.10 kg (24.47 lbs) EAN 8059617811976
Mounting Configuration
The Tecnoseal 19011-1 features two mounting holes positioned 140 mm apart, measured centre to centre. The holes have a diameter of 16.50 mm, while the recessed mounting section has a diameter of 114 mm.
Before ordering, verify the mounting hole spacing, recessed diameter and overall dimensions against the existing anode and the propeller assembly.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 19011-1 Azimut-Benetti zinc propeller anode.
-
