The Tecnoseal 03450 is a zinc sacrificial propeller anode for AZBE series marine propeller assemblies. It features a conical design with a maximum outside diameter of 53 mm, an overall height of 54 mm and an M22x2.5 internal mounting thread. Additional dimensions include a = 10 mm, b = 11.50 mm and h1 = 43 mm, with an M6 fixing specification. The anode weighs 0.45 kg (0.99 lbs) and is intended for galvanic corrosion protection of compatible propeller components.
- Description
- Ask a Question
-

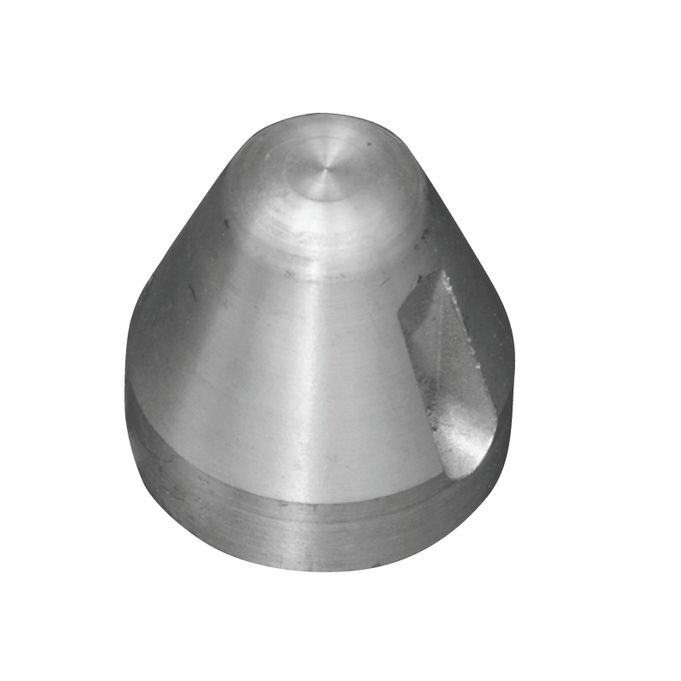

Tecnoseal 03450 AZBE Propeller Zinc Anode Ø53 mm M22x2.5
The Tecnoseal 03450 is a zinc sacrificial propeller anode designed for AZBE series marine propeller assemblies. It provides galvanic corrosion protection for compatible underwater propeller components.
The anode features a conical profile with a maximum outside diameter of 53 mm, an overall height of 54 mm and an M22x2.5 mounting thread. An additional M6 fixing specification is indicated in the manufacturer's dimensional drawing.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 03450 Series AZBE Product Type Conical propeller sacrificial anode Material Zinc Outside Diameter (Ø) 53 mm (2.09 in) Overall Height (h) 54 mm (2.13 in) Internal Height (h1) 43 mm (1.69 in) Dimension a 10 mm (0.39 in) Dimension b 11.50 mm (0.45 in) Fixing Specification (c) M6 Mounting Thread (m) M22x2.5 Weight 0.45 kg (0.99 lbs) EAN 8033837066699
AZBE Propeller Application
The Tecnoseal 03450 is intended for AZBE series propeller assemblies requiring a conical zinc anode with an M22x2.5 mounting thread.
Before ordering, verify the outside diameter, mounting thread, M6 fixing specification and overall dimensions against the existing propeller anode.
Inspection and Replacement
Inspect the sacrificial anode periodically for material consumption. Replace the anode when necessary and ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 03450 AZBE zinc propeller anode.
-
