ID
1406440
$ 132.49
1-2 weeks delivery time
-
+
The Tecnoseal 03451 is a zinc sacrificial anode for AZBE series marine propellers, designed to protect underwater propeller components against galvanic corrosion. It features a tapered cylindrical profile with a maximum outside diameter of 63 mm, an overall height (h1) of 90 mm and an internal recess height (h) of 67 mm. Additional dimensions include Ø1 41 mm, Ø2 14 mm and Ø3 8 mm. The anode weighs 1.02 kg (2.25 lbs).
- Description
- Ask a Question
-
Tecnoseal 03451 AZBE Propeller Zinc Anode Ø63 mm
The Tecnoseal 03451 is a zinc sacrificial anode designed for AZBE series marine propeller assemblies. It provides galvanic corrosion protection for compatible underwater metallic propeller components.

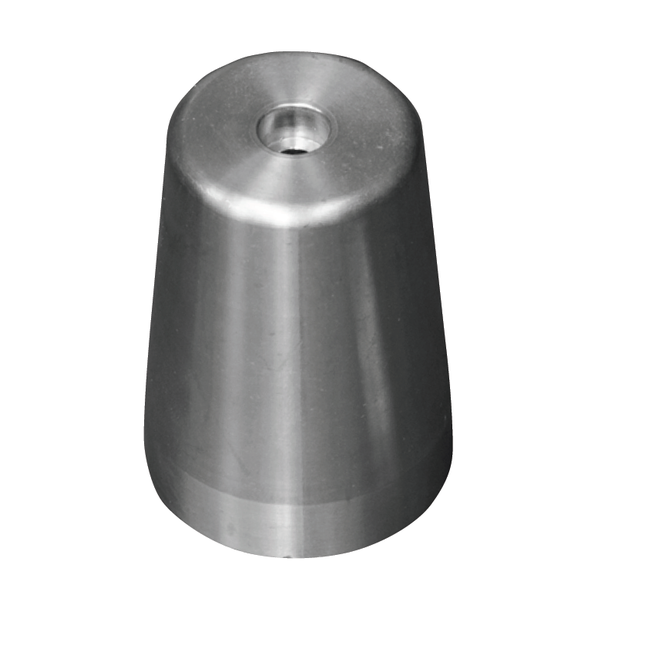

The anode has a tapered cylindrical profile with a recessed internal mounting section. Its maximum outside diameter is 63 mm, with an overall height of 90 mm and an internal recess height of 67 mm. The catalogue weight is 1.02 kg.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 03451 Series AZBE Product Type Propeller sacrificial anode Material Zinc Outside Diameter (Ø) 63 mm (2.48 in) Diameter Ø1 41 mm (1.61 in) Diameter Ø2 14 mm (0.55 in) Diameter Ø3 8 mm (0.31 in) Height (h) 67 mm (2.64 in) Overall Height (h1) 90 mm (3.54 in) Weight 1.02 kg (2.25 lbs) EAN 8033837066705
AZBE Propeller Application
The Tecnoseal 03451 is intended for AZBE series propeller assemblies requiring a zinc anode with the specified tapered profile and mounting dimensions.
Before ordering, verify the outside diameter, internal recess diameter, fixing hole dimensions and overall height against the existing anode or propeller assembly.
Inspection and Replacement
Inspect the sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 03451 AZBE zinc propeller anode.
-
