ID
1406280
$ 217.31
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
Item:
- 3000 g
- 800 g
The Tecnoseal TEC-Z-406 series includes oval sacrificial plate anodes with inserts for marine hull applications. Available in zinc (TEC-Z-406) and magnesium (TEC-Z-406MG), both versions measure 213 × 107 × 27 mm and feature two Ø12.5 mm mounting holes spaced 127 mm centre to centre. The zinc version weighs 3.00 kg (6.61 lbs), while the magnesium version weighs 0.80 kg (1.76 lbs). Both models share the same mounting dimensions and differ only in anode material and weight.
- Description
- Ask a Question
-

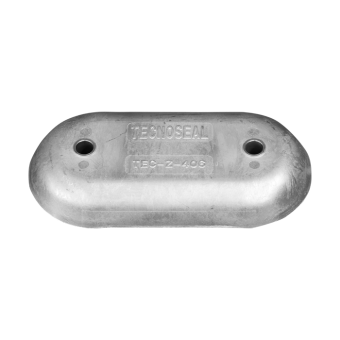

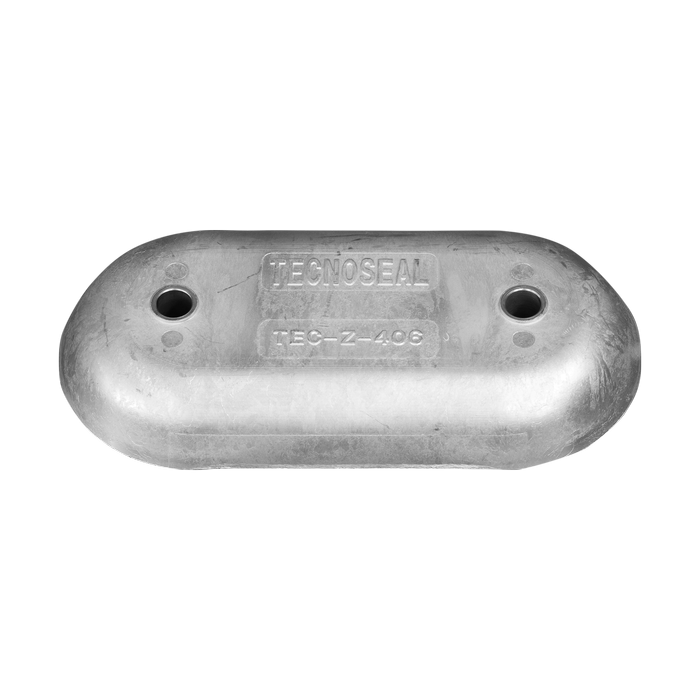

Tecnoseal TEC-Z-406 Oval Hull Plate Anode with Insert 213x107x27 mm – Zinc / Magnesium
The Tecnoseal TEC-Z-406 series consists of oval sacrificial plate anodes with inserts for marine hull applications. Two material versions are available: zinc (TEC-Z-406) and magnesium (TEC-Z-406MG).
Both versions measure 213 × 107 × 27 mm and have two Ø12.5 mm mounting holes with a centre-to-centre spacing of 127 mm. The models share the same body dimensions and mounting configuration.
Key Features
- Manufacturer: Tecnoseal
- Product Series: TEC-Z-406
- Product Type: Oval sacrificial plate anode with insert
- Application: Marine hull
- Available Materials: Zinc, Magnesium
- Shape: Oval
- Dimensions: 213 × 107 × 27 mm
- Mounting: Two holes with inserts
- Mounting Hole Diameter: Ø12.5 mm
- Hole Spacing: 127 mm
Technical Specifications
Parameter Specification Length (l) 213 mm / 8.39 in Width (a) 107 mm / 4.21 in Height (h) 27 mm / 1.06 in Mounting Hole Spacing (i) 127 mm / 5.00 in Mounting Hole Diameter (Ø) 12.5 mm / 0.49 in Number of Mounting Holes 2 Construction Oval plate with insert
Available Models
Product Code Material Weight EAN TEC-Z-406 Zinc 3.00 kg / 6.61 lbs 8033837068792 TEC-Z-406MG Magnesium 0.80 kg / 1.76 lbs 8052744980508
Marine Hull Application
These oval sacrificial anodes are intended for marine hull installations requiring a plate with two mounting holes spaced 127 mm centre to centre.
The zinc and magnesium versions help protect electrically connected metallic marine components against galvanic corrosion. Select the appropriate material according to the vessel's operating water conditions and existing corrosion protection system.
Mounting and Replacement
Both versions feature two Ø12.5 mm mounting holes with inserts and a centre-to-centre spacing of 127 mm.
Before ordering, compare the 213 × 107 × 27 mm dimensions and mounting configuration with the existing anode.
Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One Tecnoseal TEC-Z-406 series oval sacrificial plate anode in the selected material.
-
