ID
1400109
$ 69.17
1-2 weeks delivery time
-
+
E. Polipodio spare zinc shaft nut ogive anode with squared pin and M36x3 thread. The anode has an overall diameter of Ø68.5 mm and height of 85 mm, with dimensions A 46.5 mm, B 45 mm and Ø1 54 mm. Designed as a replacement shaft nut anode with a squared internal pin configuration.
- Description
- Ask a Question
-

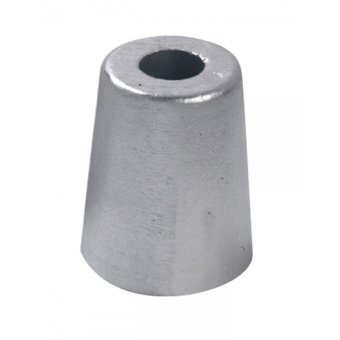

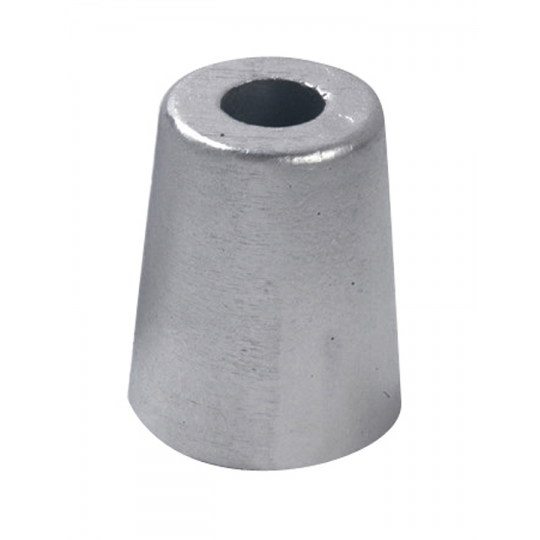

E. Polipodio Spare Zinc Shaft Nut Ogive Anode with Squared Pin – M36x3, Ø68.5x85 mm
The E. Polipodio Spare Zinc Shaft Nut Ogive Anode is a replacement anode featuring a squared pin configuration and M36x3 thread. The anode has an overall diameter of Ø68.5 mm and an overall height of 85 mm.

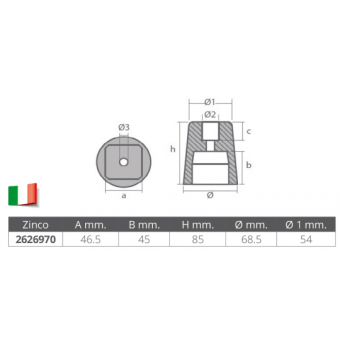

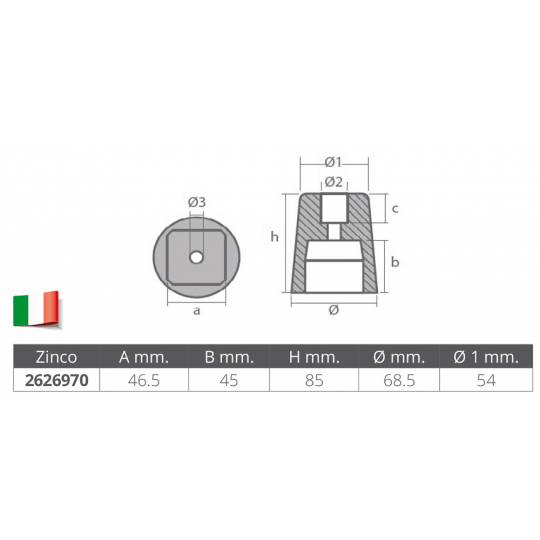

Technical Specifications
- Brand: E. Polipodio
- Product Number: 2626970
- E. Polipodio Reference: 00405Q
- Material: Zinc
- Type: Spare shaft nut ogive anode
- Pin Type: Squared pin
- Thread: M36x3
- A: 46.5 mm
- B: 45 mm
- Height H: 85 mm
- Overall Diameter Ø: 68.5 mm
- Ø1: 54 mm
Reference Product Number Thread A B H Ø Ø1 00405Q 2626970 M36x3 46.5 mm 45 mm 85 mm 68.5 mm 54 mm -
