The Maxwell RC12-10 24V 1200W 190TDC CW Vertical Anchor Windlass (Vetus P104937) is a top-range automatic rope/chain windlass designed for large vessels requiring increased deck clearance. Powered by a 24 V DC, 1200 W motor, this RC12 Series model is suitable for 10 mm (3/8") short-link chain and 16–20 mm (5/8"–3/4") nylon rope. The extended 190 TDC configuration supports installation on thick decks while delivering a maximum pull of 1134 kg for demanding anchoring conditions.
- Description
- Ask a Question
-

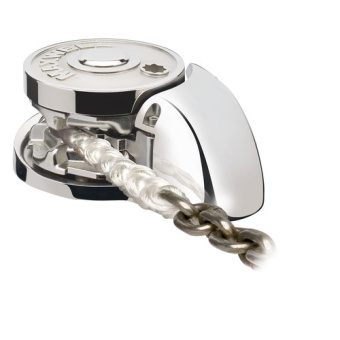

Maxwell RC12-10 24V 1200W 190TDC CW Vertical Anchor Windlass (Vetus P104937)
The Maxwell RC12-10 is a fully automatic vertical rope/chain anchor windlass and represents the top-range model within the Maxwell RC Series. This configuration features an increased Total Deck Clearance of 190 TDC, making it suitable for vessels with thick deck structures or special installation requirements.
Manufactured from marine-grade AISI 316 stainless steel, the RC12-10 offers excellent corrosion resistance and long-term durability. The patented Wave Design™ chainwheel ensures smooth anchor deployment and retrieval, secure grip of both rope and chain, and reliable handling of the rope-to-chain splice.
Driven by a powerful 1200 W motor operating on a 24 V DC supply, this windlass delivers a maximum pull of 1134 kg. A ratcheted mechanism prevents backwinding during emergency manual retrieval, ensuring safe and controlled operation under all anchoring conditions.
Specification Value Vetus Part Number P104937 Model RC12-10 Series Maxwell RC Series Voltage 24 V DC Motor Power 1200 W Installation Type Vertical Operation Automatic rope / chain Drum No Total Deck Clearance 190 TDC Maximum Pull / Lift 1134 kg Net Weight 29 kg Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 10 mm (3/8")
- Chain diameter: 10 mm
- Recommended rope material: Nylon
- Rope diameter: 16–20 mm (5/8"–3/4")
Recommended Vessel Application
- Large cruising yachts
- Powerboats with thick deck structures
- Bluewater and long-range cruising vessels
Key Features
- Top-range vertical automatic rope/chain anchor windlass
- High pulling capacity for heavy anchors
- 190 TDC increased deck clearance for demanding installations
- Wave Design™ chainwheel for smooth and secure anchoring
- Ratcheted mechanism to prevent backwinding during manual retrieval
- Marine-grade AISI 316 stainless steel construction
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system must also be used to secure the anchor in the fully raised position while the vessel is under way.
-
