The Maxwell RC10-8 12V 1000W 150TDC CW Vertical Anchor Windlass with Drum (Vetus P105435) is an automatic rope/chain windlass designed for vessels requiring increased deck clearance and independent rope handling capability. Powered by a 12 V DC, 1000 W motor, this vertical RC10 Series model supports 8 mm (5/16") DIN 766 chain and 14–16 mm (9/16"–5/8") nylon rope. The 150 TDC configuration allows installation on thicker decks, while the integrated capstan drum enables flexible rope handling alongside standard anchoring operations.
- Description
- Ask a Question
-

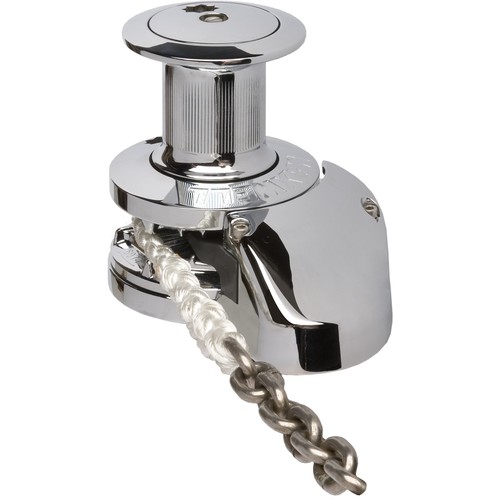

Maxwell RC10-8 12V 1000W 150TDC CW Vertical Anchor Windlass with Drum (Vetus P105435)
The Maxwell RC10-8 is an automatic vertical rope/chain anchor windlass from the Maxwell RC10 Series, engineered for reliable anchoring on cruising yachts and powerboats. This version features an increased Total Deck Clearance of 150 TDC, making it suitable for installations where greater deck thickness must be accommodated.
This capstan version is supplied with a fluted stainless steel drum, enabling independent rope handling operations in addition to standard anchor deployment and retrieval. Manufactured from marine-grade stainless steel and chromed bronze, the windlass offers excellent durability and corrosion resistance in demanding marine environments.
Specification Value Vetus Part Number P105435 Model RC10-8 Series Maxwell RC10 Series Voltage 12 V DC Motor Power 1000 W Installation Type Vertical Operation Automatic rope / chain Drum Yes, fluted stainless steel capstan drum Total Deck Clearance 150 TDC Maximum Pull / Lift Approximately 700 kg Static Hold Approximately 1500 kg Chain Speed (Retrieval) Approximately 24 m/min Rope Speed (Retrieval) Approximately 20 m/min Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 8 mm (5/16") DIN 766
- Chain diameter: 8 mm
- Rope material: Nylon
- Rope diameter: 14–16 mm (9/16"–5/8")
Key Features
- Vertical automatic rope/chain anchor windlass
- Integrated capstan drum for independent rope handling operations
- Increased 150 TDC deck clearance for thicker deck installations
- Marine-grade stainless steel and chromed bronze construction
- Designed for dependable anchoring performance on cruising vessels
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while the vessel is under way.
-
