The Vetus Maxwell VWRC10-8 Vertical Windlass 12V 1000W (Part No. P105444) is a robust marine anchoring windlass designed for vertical installation with combined rope/chain handling capability. Equipped with a 1000 W 12-volt DC motor and a 150 TDC tapered drum clutch/brake, this windlass delivers reliable anchoring performance for small to medium vessels, capable of handling 8 mm chain and 14-16 mm rope.
- Description
- Ask a Question
-

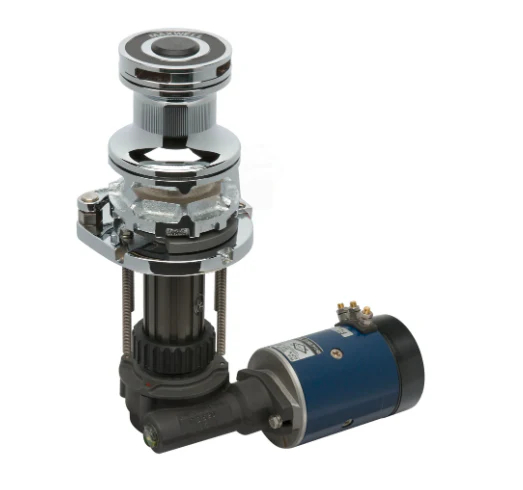

Vetus Maxwell VWRC10-8 Vertical Windlass 12V 1000W (P105444)
Attribute Specification Manufacturer Vetus / Maxwell Model VWRC10-8 Vertical Windlass Part Number (SKU) P105444 Voltage 12 V DC Motor Power 1000 W Drive Type Reversible electric motor Rated TDC 150 TDC Rope/Chain Handling Combined rope and chain operation Chain Size 8 mm (5/16″) Rope Diameter 14–16 mm (9/16″ – 5/8″) Maximum Pull (approx.) ~700 kg (~1540 lbs) Static Hold (approx.) ~1500 kg (~3300 lbs) Haulage Speed ~20–24 m/min (dependant on load) Installation Vertical foredeck mount Materials Marine-grade finishes (stainless steel / chromed bronze elements)
The Vetus Maxwell VWRC10-8 windlass is engineered for dependable anchoring operations on small to medium yachts and motorboats. Featuring a robust 12 V DC motor producing 1000 W of power, this unit provides reliable haulage and holding capacity for combined rope and chain anchor rodes. Its tapered drum clutch/brake and quality construction ensure smooth anchor retrieval and deployment under load. The windlass is designed for vertical installation and is suitable for marine environments where space and durability are critical.
- Vertical rope/chain windlass for combined anchor rode operation.
- Reversible 12 V DC electric motor with 1000 W rated output.
- Capable of handling 8 mm chain with 14–16 mm nylon rope.
- Designed for vessels with moderate anchoring demands.
- Tapered drum clutch/brake for controlled anchor deployment.
- Marine-grade construction for corrosion resistance.
-
