ID
1282136
$ 5,828.48
1-2 weeks delivery time
-
+

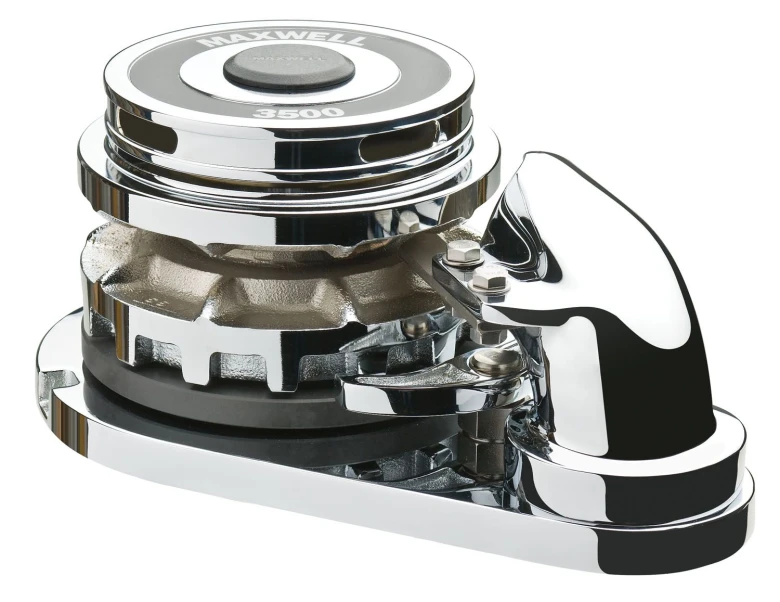

Maxwell VWC Series Vertical Windlass VWCLP, article P100425, is a hydraulic vertical anchor windlass designed for automatic handling of chain-only anchor rodes. The unit is equipped with an independent capstan for retrieval of a secondary rope or chain rode or for assisting docking procedures, supports short link chain sizes from 6 to 10 mm, provides a maximum pull of 700 kg, and has a total weight of 24 kg.
- Description
- Ask a Question
-
Maxwell VWC Series Vertical Hydraulic Windlass with Independent Capstan
The Maxwell VWC Series vertical hydraulic windlass is designed for fully automatic vertical handling of chain-only anchor rodes. An integrated independent capstan allows controlled retrieval of a secondary rope or chain rode and provides additional support during docking procedures. The windlass combines robust mechanical design with corrosion-resistant materials to ensure reliable performance in demanding marine environments.
Key Features
- Designed for automatic vertical handling of chain-only anchor rodes
- Independent capstan for secondary rope or chain retrieval and docking assistance
- Fully automatic single or dual direction chainwheel operation
- Above-deck components manufactured from marine-grade stainless steel (AISI 316)
- Integral chain pipe and stripper aligned for virtually jam-free operation
- Automatic feed of chain into and out of the anchor locker
- Cone-type brake and clutch mechanism enabling manual free-fall anchoring
- Smooth, progressive clutch engagement for safe and precise operator control
- Chainwheel locking pawl for secure operation
- Clutch disengagement enables independent rope hauling using the warping drum
- Modular through-deck installation with precise gearbox alignment
- Anodized aluminium gearbox and spacer tube on all models
- Low-profile configuration available without warping drum
Technical Specifications
Parameter Value Article Number P100425 Drive Type Hydraulic Voltage 0 V Configuration Vertical Rode Type Chain Warping Drum No Maximum Pull / Lift 700 kg Supported Chain Size 6 – 10 mm (short link) Weight 24 kg
Construction and Installation
- Marine-grade stainless steel fasteners for corrosion resistance
- Through-deck installation enabled by modular construction
- Precise alignment of gearbox to topworks for reliable power transmission
- Anodized aluminium gearbox and spacer tube for durability
-
