Maxwell VWC 1500 Vertical Windlass, article P102755, is a 24V electric windlass with a 1200W heavy-duty motor and a 50TDC clockwise (CW) chainwheel, featuring a warping drum for auxiliary rope handling. Designed for automatic vertical chain anchor handling with chain sizes 6–10 mm and marine-grade construction for persistent durability.
- Description
- Ask a Question
-

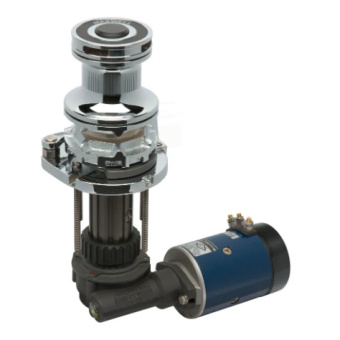

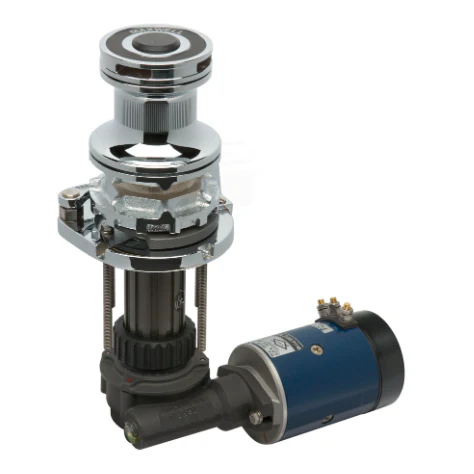

Maxwell VWC 1500 Vertical Windlass 1200W 24V, 50TDC CW with Warping Drum
The Maxwell VWC 1500 vertical windlass (Vetus P102755) is engineered for automatic vertical handling of chain anchor rodes on marine vessels. Powered by a 1200W 24V electric motor and equipped with a 50TDC clockwise (CW) chainwheel, this unit features an integrated warping drum for controlled rope handling during docking and mooring operations. Designed with durable marine-grade components to withstand harsh saltwater environments. :contentReference[oaicite:2]{index=2}
Key Features
- Vertical windlass for automatic handling of chain-only anchor rodes
- Integrated warping drum for auxiliary rope hauling and docking assistance
- 50TDC clockwise (CW) chainwheel optimized for 6–10 mm chain
- Fully automatic single or dual direction chainwheel operation
- Above-deck components crafted from marine-grade stainless steel (AISI 316)
- Integral chain pipe and stripper aligned for smooth, jam-free chain feed
- Cone-type brake/clutch mechanism enables manual free-fall anchoring
- Chainwheel locking pawl for secure operation
- Modular through-deck installation with precise alignment of gearbox and topworks
- Anodized aluminium gearbox and spacer tube for corrosion resistance
- Heavy-duty dual-direction motor designed specifically for marine windlass applications
Technical Specifications
Parameter Value Article Number P102755 Model VWC 1500 Voltage 24 V Motor Power 1200 W Chainwheel 50TDC, CW Rode Type Chain (6–10 mm) Warping Drum Included
Application and Installation
- Ideal for vessels needing a reliable electric vertical windlass with rope handling capability
- Designed for through-deck installation with modular alignment for precise fit
- Provides controlled anchoring and docking support operations
- Engineered for long-lasting service in marine environments
-
