ID
1282140
$ 5,431.79
1-2 weeks delivery time
-
+
Maxwell VWC 1500 Vertical Windlass, article P102754, is a 12V electric anchor windlass with a 1200W motor and a 50TDC clockwise (CW) chainwheel, equipped with an integrated warping drum for secondary rope handling. Designed for automatic vertical handling of 6–10 mm chain rodes with a maximum pull of approximately 500 kg and durable marine-grade construction.
- Description
- Ask a Question
-

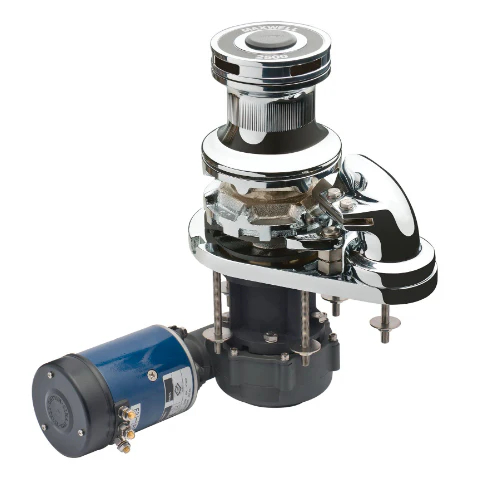

Maxwell VWC 1500 Vertical Windlass 1200W 12V, 50TDC CW with Drum
The Maxwell VWC 1500 vertical windlass (Vetus P102754) is engineered for automatic vertical handling of chain anchor rodes on marine vessels. Powered by a robust 1200W 12V motor and featuring a 50TDC clockwise (CW) chainwheel, this model includes an integrated warping drum for controlled rope handling and docking assistance. Constructed with marine-grade materials for long-lasting performance at sea. :contentReference[oaicite:2]{index=2}
Key Features
- Vertical electric windlass for automatic chain anchor handling
- Integrated warping drum for auxiliary rope operations
- 50TDC clockwise (CW) chainwheel for 6–10 mm short link chain
- Fully automatic single or dual direction chainwheel operation
- Marine-grade stainless steel (AISI 316) above-deck components
- Integral chain pipe and stripper providing jam-free chain feed
- Cone-type brake/clutch enabling safe free-fall anchoring
- Chainwheel locking pawl for secure anchoring control
- Modular design for simple through-deck installation
- Anodized aluminium gearbox and spacer tube for corrosion resistance
Technical Specifications
Parameter Value Article Number P102754 Model VWC 1500 Voltage 12 V Motor Power 1200 W Chainwheel 50TDC, CW Rode Type Chain (6–10 mm) Warping Drum Included Maximum Pull / Lift ≈ 500 kg Weight 50 kg
Application and Installation
- Suitable for boats requiring a reliable vertical windlass with rope handling capability
- Designed for through-deck installation with modular alignment of gearbox and topworks
- Ideal for anchoring operations and docking-assistance tasks
- Durable construction ensures long-term service in marine environments
-
