ID
1300728
$ 5,431.79
1-2 weeks delivery time
-
+
Maxwell VWC 1500 Vertical Windlass, article P102727, is a 24V electric anchor windlass with a 1200W motor and a 150TDC clockwise (CW) chainwheel, featuring an integrated warping drum for auxiliary rope handling. Designed for automatic vertical handling of 6–10 mm chain anchor rodes, it offers a maximum pull/lift of 850 kg, a static hold of 1500 kg, and a normal working line speed of approximately 18 m/min.
- Description
- Ask a Question
-

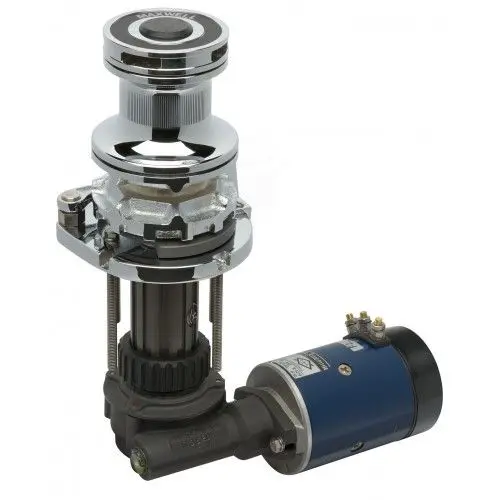

Maxwell VWC 1500 Vertical Windlass 1200W 24V with 150TDC CW Chainwheel and Warping Drum
The Maxwell VWC 1500 vertical windlass (Vetus P102727) is designed for automatic vertical handling of chain-only anchor rodes. Powered by a 1200W 24V motor, this windlass features a 150TDC clockwise (CW) chainwheel for anchor retrieval and an integrated warping drum for controlled rope handling during docking and mooring operations. Marine-grade construction ensures reliable performance and long service life. :contentReference[oaicite:2]{index=2}
Key Features
- Electric vertical windlass for automatic chain anchor handling
- Integrated warping drum for auxiliary rope hauling and docking support
- 150TDC clockwise (CW) chainwheel optimized for 6–10 mm short link chain
- Fully automatic single or dual direction chainwheel operation
- High-quality finish on above-deck components made from marine-grade stainless steel (AISI 316) :contentReference[oaicite:3]{index=3}
- Integral chain pipe and stripper aligned for smooth, jam-free chain feed
- Cone-type brake/clutch mechanism permitting manual free-fall anchoring with precise control
- Chainwheel locking pawl for secure anchoring operation
- Modular through-deck installation with precise gearbox alignment
- Anodized aluminium gearbox and spacer tube for enhanced corrosion resistance
Technical Specifications
Parameter Value Article Number P102727 Model VWC 1500 Voltage 24 V Motor Power 1200 W Chainwheel 150TDC, CW Rode Type Chain (6–10 mm) Warping Drum Included Maximum Pull / Lift 850 kg Static Holding Force 1500 kg Line Speed (Normal Working) 18 m/min Net Weight 24 kg
Application and Installation
- Ideal for vessels requiring powerful electric vertical anchor handling with rope handling capability
- Designed for through-deck installation with modular alignment for precise fit
- Provides secure anchoring and controlled docking assistance
- Engineered for long-term durability in marine environments
-
