ID
1282142
$ 6,223.82
1-2 weeks delivery time
-
+
Maxwell VWC 1500 Vertical Hydraulic Windlass, article P102756, is a hydraulic-powered vertical anchor windlass with a 50TDC clockwise (CW) chainwheel and integrated warping drum for auxiliary rope handling. Engineered for automatic vertical handling of 6–10 mm chain rodes with marine-grade construction, it supports docking assistance and secondary rope/chain retrieval.
- Description
- Ask a Question
-

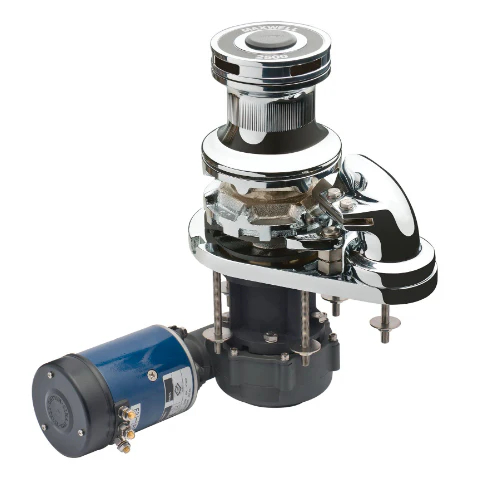

Maxwell VWC 1500 Vertical Hydraulic Windlass 50TDC CW with Warping Drum
The Maxwell VWC 1500 vertical hydraulic windlass (Vetus P102756) is a robust anchoring system designed for automatic vertical handling of chain-only anchor rodes. Equipped with a 50TDC clockwise (CW) chainwheel and an integrated warping drum, this unit provides controlled rope handling for docking and secondary rode retrieval. Its heavy-duty hydraulic drive and marine-grade construction ensure reliable performance in challenging marine environments. :contentReference[oaicite:2]{index=2}
Key Features
- Hydraulic-powered vertical windlass for automated chain anchor handling
- Integrated warping drum for auxiliary rope hauling and docking support
- 50TDC clockwise (CW) chainwheel optimized for 6–10 mm short link chain
- Fully automatic chainwheel operation with smooth engagement mechanisms
- High-quality marine-grade stainless steel (AISI 316) above-deck components
- Integral chain pipe and stripper aligned for jam-free chain feed
- Cone-type brake/clutch mechanism allowing controlled manual free-fall anchoring
- Chainwheel locking pawl for secure operation
- Modular design for simplified through-deck installation
- Anodized aluminium gearbox and spacer tube for enhanced corrosion resistance
Technical Specifications
Parameter Value Article Number P102756 Model VWC 1500 Drive Type Hydraulic Configuration Vertical Chainwheel 50TDC, CW Rode Type Chain (6–10 mm) Warping Drum Included Hydraulic System Yes
Application and Installation
- Ideal for vessels requiring hydraulic vertical chain handling with rope support
- Designed for through-deck installation with precise modular alignment
- Engineered to withstand long-term exposure in marine environments
- Offers docking-assistance capabilities through integrated warping drum
-
