ID
1282148
$ 4,833.71
1-2 weeks delivery time
-
+

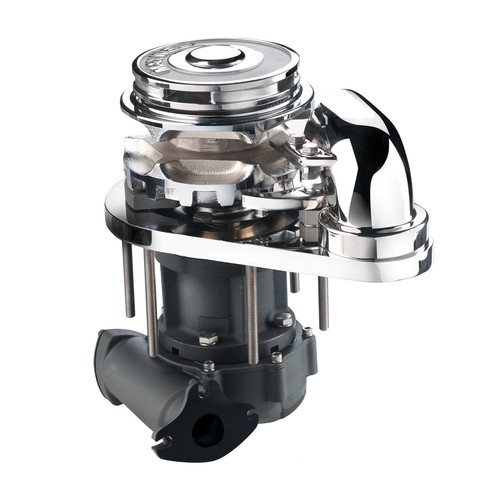

Maxwell VWC Series Vertical Windlass VWCLP, article P100431, is a hydraulic vertical anchor windlass designed for automatic handling of chain-only anchor rodes. The unit features an independent capstan for retrieving a secondary rope or chain rode or for assisting docking procedures, supports short link chain sizes from 6 to 10 mm, delivers a maximum pull of 850 kg, and has a total weight of 17 kg.
- Description
- Ask a Question
-
Maxwell VWC Series Vertical Hydraulic Windlass with Independent Capstan
The Maxwell VWC Series vertical hydraulic windlass is designed for fully automatic vertical handling of chain-only anchor rodes and incorporates an independent capstan for secondary rope or chain retrieval. This configuration also supports docking procedures, allowing controlled rope hauling from any direction. The windlass is engineered for reliable performance in demanding marine environments through robust mechanical design and corrosion-resistant materials.
Key Features
- Designed for automatic vertical handling of chain-only anchor rodes
- Independent capstan for secondary rope or chain retrieval and docking assistance
- Fully automatic single or dual direction chainwheel operation
- Above-deck components manufactured from marine-grade stainless steel (AISI 316)
- Integral chain pipe and stripper aligned for virtually jam-free chain operation
- Automatic feed of chain into and out of the anchor locker
- Cone-type brake and clutch mechanism permitting manual free-fall anchoring
- Smooth progressive clutch engagement ensuring safe and precise operator control
- Chainwheel locking pawl for secure anchoring operation
- Clutch disengagement enables independent rope hauling using the capstan
- Simple through-deck installation enabled by modular design
- Precise alignment of gearbox to topworks using marine-grade stainless steel fasteners
- Anodized aluminium gearbox and spacer tube on all models
- Low-profile configuration available without warping drum
Technical Specifications
Parameter Value Article Number P100431 Drive Type Hydraulic Voltage 0 V Configuration Vertical Rode Type Chain Warping Drum No Maximum Pull / Lift 850 kg Supported Chain Size 6 – 10 mm (short link) Weight 17 kg
Construction and Installation
- Marine-grade stainless steel fasteners for long-term corrosion resistance
- Through-deck installation with modular alignment of gearbox and topworks
- Compact and robust construction suitable for demanding marine applications
-
