Maxwell VWC 1500 Vertical Hydraulic Windlass, article P102728, is a hydraulic-powered vertical anchor windlass with a 150TDC clockwise (CW) chainwheel and integrated warping drum for auxiliary rope handling. Designed for automatic vertical handling of chain-only anchor rodes with chain sizes 6–10 mm, this model delivers robust marine anchoring performance with a static holding capacity of 1500 kg and reliable construction for demanding marine environments.
- Description
- Ask a Question
-

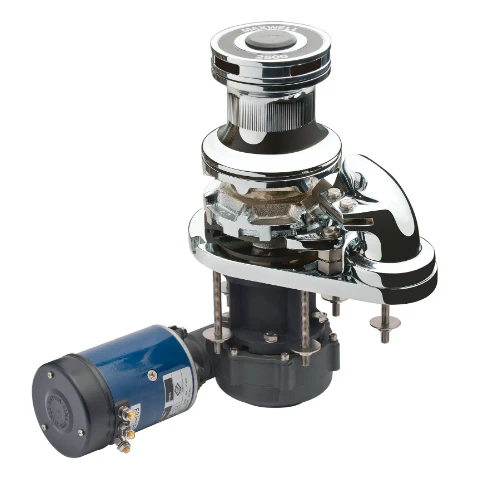

Maxwell VWC 1500 Vertical Hydraulic Windlass 150TDC CW with Warping Drum
The Maxwell VWC 1500 vertical hydraulic windlass (Vetus P102728) is engineered for automatic vertical handling of chain-only anchor rodes. This hydraulic variant features a 150TDC clockwise (CW) chainwheel and an integrated warping drum, enabling controlled rope handling for docking and mooring tasks alongside standard anchor retrieval. Designed with durable marine-grade materials and a hydraulic drive system suited for demanding marine operations. :contentReference[oaicite:2]{index=2}
Key Features
- Hydraulic-powered vertical windlass providing automated chain anchor handling
- 150TDC clockwise (CW) chainwheel optimized for 6–10 mm short link chain
- Integrated warping drum for auxiliary rope hauling and docking assistance
- High-quality marine-grade materials for durable performance in saltwater environments
- Cone-type brake/clutch mechanism allowing controlled manual free-fall anchoring
- Chainwheel locking pawl for added operational security
- Modular through-deck installation design for precise alignment and installation
- Anodized aluminium gearbox and spacer tube for enhanced corrosion resistance
Technical Specifications
Parameter Value Article Number P102728 Model VWC 1500 Drive Type Hydraulic Chainwheel 150TDC, CW Rode Type Chain (6–10 mm) Warping Drum Included Static Holding Force 1500 kg Maximum Pull 850 kg Line Speed (Normal Working) 18 m/min Hydraulic Pressure 138 bar (2000 psi) Hydraulic Flow 20 l/min
Application and Installation
- Ideal for vessels requiring a hydraulic-driven vertical windlass with both chain and rope handling capabilities
- Designed for through-deck installation with modular alignment of gearbox and topworks
- Provides secure anchoring and controlled docking support operations
- Constructed to withstand long-term exposure to marine environments
-
