Maxwell VWC 1500 Vertical Windlass, article P102726, is a 12V electric anchor windlass with a 1200W motor, fitted with a 150TDC clockwise (CW) chainwheel and integrated warping drum for rope handling. Designed for automatic vertical handling of 6–10 mm chain anchor rodes, this unit delivers robust performance with a maximum pull of approximately 850 kg and durable marine-grade construction.
- Description
- Ask a Question
-

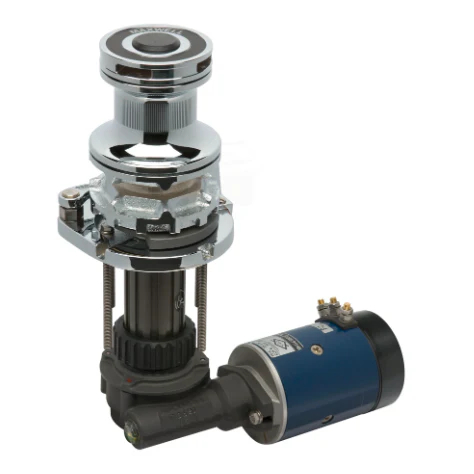

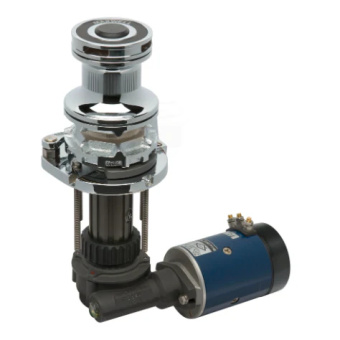

Maxwell VWC 1500 Vertical Windlass 1200W 12V with 150TDC CW Chainwheel and Warping Drum
The Maxwell VWC 1500 vertical windlass (Vetus P102726) is engineered for automatic vertical handling of chain-only anchor rodes on marine vessels. Powered by a 1200W 12V electric motor and equipped with a 150TDC clockwise (CW) chainwheel, this model includes an integrated warping drum for auxiliary rope hauling during docking and mooring operations. Constructed with marine-grade components for reliable long-term service. :contentReference[oaicite:2]{index=2}
Key Features
- Vertical windlass designed for automatic handling of chain anchor rodes :contentReference[oaicite:3]{index=3}
- 150TDC clockwise (CW) chainwheel optimized for 6–10 mm short link chain :contentReference[oaicite:4]{index=4}
- Integrated warping drum for controlled rope handling and docking assistance :contentReference[oaicite:5]{index=5}
- Heavy-duty electric motor tailored for marine windlass applications :contentReference[oaicite:6]{index=6}
- High-quality finish on above-deck components made from marine-grade stainless steel (AISI 316) :contentReference[oaicite:7]{index=7}
- Cone-type brake/clutch mechanism allowing manual free-fall anchoring :contentReference[oaicite:8]{index=8}
- Chainwheel locking pawl for secure anchoring control :contentReference[oaicite:9]{index=9}
- Modular through-deck installation with precise gearbox alignment :contentReference[oaicite:10]{index=10}
- Anodized aluminium gearbox and spacer tube for corrosion resistance :contentReference[oaicite:11]{index=11}
Technical Specifications
Parameter Value Article Number P102726 Model VWC 1500 Voltage 12 V Motor Power 1200 W Chainwheel 150TDC, CW Rode Type Chain (6–10 mm) Warping Drum Included Maximum Pull ≈ 850 kg Static Holding Force 1500 kg Line Speed (Normal Load) ≈ 18 m/min Net Weight (DC) 24 kg
Application and Installation
- Suitable for vessels needing a powerful vertical electric windlass with rope handling capability
- Designed for through-deck installation with modular alignment for precise deck fit
- Provides controlled anchoring and docking support
- Engineered for long-lasting performance in marine environments
-
