ID
1379952
$ 1,903.93
1-2 weeks delivery time
Diameter, mm:
- 8
- 10
Voltage:
- 12V
- 24V
Power, W
- 1000W
- 1500W
- 700W
Item:
- Without drum
- With drum
The Italwinch Smart-R3 is a premium vertical anchor windlass designed for boats up to 16 metres. Built with polished AISI 316 stainless steel and available in high-profile or low-profile configurations, it combines durability with reliable anchoring performance. The Smart-R3 series is offered with 700W, 1000W and 1500W motors in 12V and 24V versions, supports 8 mm and 10 mm anchor chain (including 10 mm DIN766), and is available with or without an integrated drum. Every model includes a built-in chain counter sensor for precise chain monitoring during anchoring operations.
- Description
- Ask a Question
-

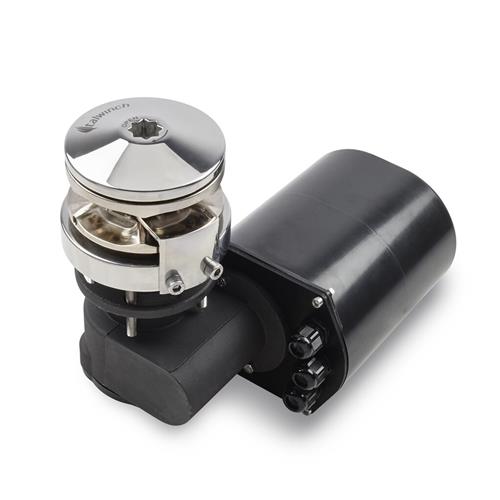

Italwinch Smart-R3 Vertical Anchor Windlass 700W, 1000W & 1500W – AISI 316 Stainless Steel for Boats up to 16 m
The Italwinch Smart-R3 is a premium vertical anchor windlass developed for recreational and cruising vessels up to 16 metres. Manufactured from polished AISI 316 stainless steel, the Smart-R3 combines outstanding corrosion resistance with dependable performance for demanding marine environments.
The series is available with 700W, 1000W and 1500W electric motors in both 12V and 24V DC versions. Depending on the selected model, windlasses are supplied with or without an integrated drum and in high-profile or low-profile configurations, allowing installation on a wide variety of vessels.
The Smart-R3 accommodates 8 mm and 10 mm anchor chain, including 10 mm DIN766 chain, making it suitable for a broad range of anchoring systems. Every model features an integrated chain counter sensor, allowing connection to compatible chain counters for accurate monitoring of deployed chain and improved anchoring control.
Key Features
- Original Italwinch Smart-R3 vertical anchor windlass
- Recommended for boats up to 16 metres
- Polished AISI 316 stainless steel construction
- Available in high-profile and low-profile versions
- Integrated chain counter sensor fitted as standard
- Electric drive in 12V and 24V DC versions
- Motor options: 700W, 1000W and 1500W
- Available with or without integrated drum
- Compatible with 8 mm and 10 mm anchor chain
- Supports 10 mm DIN766 chain depending on model
- Designed for reliable anchoring in demanding marine conditions
Series Specifications
Specification Value Series Smart-R3 Product Type Vertical Anchor Windlass Recommended Boat Length Up to 16 m Construction Material Polished AISI 316 Stainless Steel Motor Power Options 700W, 1000W, 1500W Voltage Options 12V / 24V DC Chain Compatibility 8 mm, 10 mm, 10 mm DIN766 (depending on model) Installation Profile High Profile / Low Profile Drum Options With Drum / Without Drum Chain Counter Sensor Integrated
Available Configurations
- 700W • 12V / 24V
- 1000W • 12V / 24V
- 1500W • 12V / 24V
- 8 mm chain
- 10 mm chain
- 10 mm DIN766 chain
- With or without integrated drum
- High-profile or low-profile installation
Applications
- Motor yachts up to 16 m
- Sailing yachts up to 16 m
- Cruising and offshore vessels
- Daily anchoring operations
- Professional and recreational marine installations
-
