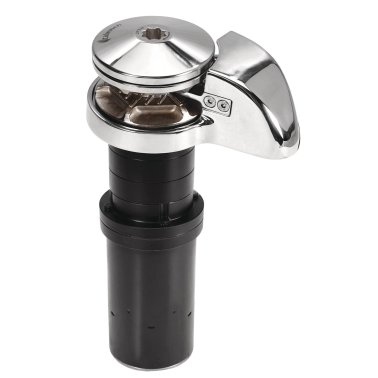

Italwinch Smart V Vertical Anchor Windlass with Vertical Motor 500W & 800W

ID 1379971

$ 1,293.34

1-2 weeks delivery time

Voltage:

Power, W

Size, mm:

Item:

Without drum

The Italwinch Smart V is a compact vertical motor anchor windlass designed for boats up to 8 metres. Its vertical electric motor allows for efficient below-deck installation while keeping the deck layout clean and compact. Built from polished AISI 316 stainless steel, the windlass features an IP67 waterproof motor, integrated chain counter sensor, and a mixed gypsy for 6 mm and 8 mm chain with rope/chain compatibility. Available in 500W and 800W 12V versions, all supplied without an integrated drum.

Description
Ask a Question

Italwinch Smart V Vertical Motor Anchor Windlass 500W & 800W – AISI 316 Stainless Steel for Boats up to 8 m

The Italwinch Smart V is a compact vertical motor anchor windlass engineered for boats up to 8 metres. Its vertically mounted electric motor is positioned below deck, creating a clean deck layout while ensuring efficient power transmission and reliable anchoring performance.

Constructed from polished AISI 316 stainless steel, the Smart V is designed to withstand harsh marine environments while delivering excellent corrosion resistance and long service life. The sealed IP67 waterproof motor provides dependable operation in demanding onboard conditions.

The Smart V series is available with 500W and 800W 12V motors and is designed for 6 mm and 8 mm anchor chain. Its mixed gypsy also accepts rope/chain combinations, providing flexibility for different anchoring systems. Every windlass is equipped with an integrated chain counter sensor for connection to compatible chain counters, allowing accurate monitoring of deployed anchor chain.

All versions included in this series are supplied without an integrated drum, making the Smart V an excellent choice for compact recreational boats where space-efficient installation is important.

Key Features

Original Italwinch Smart V vertical motor anchor windlass
Recommended for boats up to 8 metres
Vertically mounted electric motor for compact below-deck installation
Polished AISI 316 stainless steel housing
IP67 waterproof motor
Integrated chain counter sensor as standard
Mixed gypsy for chain or rope/chain combination
Compatible with 6 mm and 8 mm anchor chain
12V electric drive
Available without integrated drum
Compact vertical design for efficient deck installation

Series Specifications

Specification	Value
Series	Smart V
Product Type	Vertical Motor Anchor Windlass
Recommended Boat Length	Up to 8 m
Construction	Polished AISI 316 Stainless Steel
Motor Configuration	Vertical Electric Motor
Motor Power	500W / 800W
Voltage	12V DC
Chain Compatibility	6 mm / 8 mm
Rope Compatibility	Rope/Chain Combination Gypsy
Motor Protection	IP67
Chain Counter Sensor	Integrated
Drum	Without Drum
