ID
1379776
$ 26,517.23
1-2 weeks delivery time
Diameter, mm:
- 12
- 13
- 14
- 16
- 16 DIN766
- 16 ISO
Voltage:
- 230/400V
- Hydraulic
Power, W
- 3000W
- 3500W
- Hydraulic
- 4000W
- Hydrauli
Item:
- With drum
- Stud Link

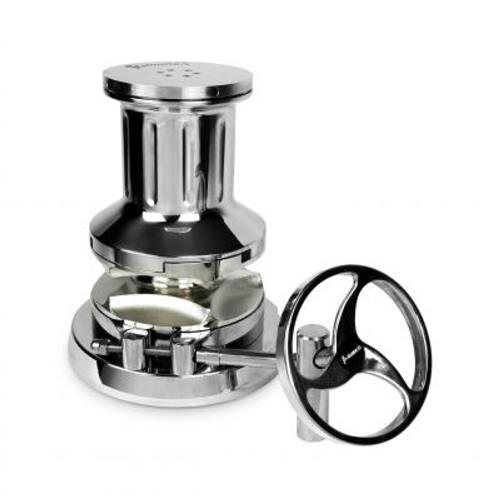

The Italwinch NV16 Vertical Anchor Windlass is a heavy-duty anchoring system designed for boats up to 42 metres. Manufactured from AISI 316 stainless steel, it is available with 230/400V electric motors (3000W, 3500W or 4000W) or hydraulic drive, all supplied with drum. The NV16 supports 12 mm, 13 mm, 14 mm and 16 mm chains, including DIN 766, ISO and Stud Link configurations. Standard features include an electromagnetic brake and dog clutch system, providing dependable anchoring performance for large yachts and commercial vessels.
- Description
- Ask a Question
-
Italwinch NV16 Vertical Anchor Windlass 3000/3500/4000W & Hydraulic for Boats up to 42 m – AISI 316 Stainless Steel
The Italwinch NV16 is a professional-grade vertical anchor windlass engineered for large yachts and commercial vessels up to 42 metres. Constructed entirely from AISI 316 stainless steel, it delivers exceptional corrosion resistance, structural strength and long-term reliability in demanding marine environments.
The NV16 series is available with 230/400V electric motors rated at 3000W, 3500W or 4000W, as well as hydraulic drive versions. Every configuration is supplied with an integrated drum and is designed to accommodate 12 mm, 13 mm, 14 mm and 16 mm anchor chains, including DIN 766, ISO and Stud Link chain standards.
Unlike conventional systems using cone clutches, the NV16 features a robust dog clutch mechanism combined with an electromagnetic brake as standard equipment, ensuring secure anchor holding, reliable engagement and precise operation under heavy loads.
Key Features
- Professional vertical anchor windlass for vessels up to 42 m
- Marine-grade AISI 316 stainless steel construction
- Available with 230/400V electric or hydraulic drive
- Electric motor options: 3000W, 3500W and 4000W
- Integrated drum on all available models
- Supports 12 mm, 13 mm, 14 mm and 16 mm anchor chains
- Compatible with DIN 766, ISO and Stud Link chains
- Electromagnetic brake fitted as standard
- Heavy-duty dog clutch system for secure operation
- Designed for demanding commercial and large yacht applications
Technical Specifications
Specification Value Product Type Vertical Anchor Windlass Recommended Boat Length Up to 42 m Construction Material AISI 316 Stainless Steel Available Drives 230/400V Electric • Hydraulic Electric Motor Power 3000 W / 3500 W / 4000 W Chain Sizes 12 mm • 13 mm • 14 mm • 16 mm Chain Standards DIN 766 • ISO • Stud Link Drum Integrated on all listed models Brake System Electromagnetic Brake Clutch Type Dog Clutch
Available Variants
230/400V Electric
- 3000W • 12 mm • With Drum
- 3000W • 13 mm • With Drum
- 3000W • 14 mm • With Drum
- 3000W • 14 mm • Stud Link
- 3000W • 16 mm DIN766 • With Drum
- 3000W • 16 mm ISO • With Drum
- 3500W • 12 mm • With Drum
- 3500W • 13 mm • With Drum
- 3500W • 14 mm • With Drum
- 3500W • 14 mm • Stud Link
- 3500W • 16 mm DIN766 • With Drum
- 3500W • 16 mm ISO • With Drum
- 3500W • 16 mm • Stud Link
- 4000W • 12 mm • With Drum
- 4000W • 13 mm • With Drum
- 4000W • 14 mm • With Drum
- 4000W • 14 mm • Stud Link
- 4000W • 16 mm DIN766 • With Drum
- 4000W • 16 mm ISO • With Drum
- 4000W • 16 mm • Stud Link
Hydraulic
- Hydraulic • 12 mm • With Drum
- Hydraulic • 13 mm • With Drum
- Hydraulic • 14 mm • With Drum
- Hydraulic • 14 mm • Stud Link
- Hydraulic • 16 mm DIN766 • With Drum
- Hydraulic • 16 mm ISO • With Drum
- Hydraulic • 16 mm • Stud Link
Applications
- Luxury yachts
- Superyachts
- Commercial vessels
- Heavy-duty anchoring systems
- Professional marine installations
-
