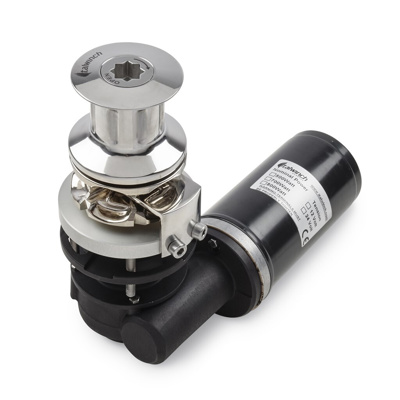

Italwinch Smart Plus 1000, 1500 and 1700W Windlass for boats 8-16 meters, chain 6/8/10 mm

€ 1.343,06

1-2 weeks delivery time
Price incl. 19% VAT

Voltage:

Electric power, W:

1000
1500
1700

Size, mm:

Item:

Without drum
With drum

Reinforced (1000-1700 W) version of the classic vertical anchor winch from the Italian manufacturer Italwinch. The Smart Plus winch is made of 316 stainless steel and will last for many years. The Italwinch Smart Plus model is equipped with an anchor chain counter sensor. Suitable for both DIN 766 (6 to 10 mm) and cable (up to 16 mm) circuits. It also provides for the possibility of simultaneously tightening the chain and cable. Suitable for medium vessels from 8 to 16 meters long. They come with and without a cabestan (drum).

Description
Ask a Question

Features:

Voltage, B	Chain thickness, mm	Standard	Power, W	Power, A	Drop speed, m/min	Reel	Maximum load, kg	Workload, kg	Line, mm
12	8	DIN 766	700	90	25	Net	300	100	14-16
12	6	DIN 766	1000	115	23	Da	420	140
24	6	DIN 766	1000	60	23	Da	420	140
12	6	DIN 766	1000	115	23	Net	420	140
24	6	DIN 766	1000	60	23	Net	420	140
12	8	DIN 766	1000	115	23	Da	420	140	14-16
24	8	DIN 766	1000	60	23	Da	420	140	14-16
12	8	DIN 766	1000	115	23	Net	420	140	14-16
24	8	DIN 766	1000	60	23	Net	420	140	14-16
12	10	DIN 766	1000	115	23	Da	420	140
24	10	DIN 766	1000	60	23	Da	420	140
12	10	DIN 766	1000	115	23	Net	420	140
24	10	DIN 766	1000	60	23	Net	420	140
12	8	DIN 766	1500	130	23	Da	480	160	14-16
24	8	DIN 766	1500	70	23	Da	480	160	14-16
12	8	DIN 766	1500	130	23	Net	480	160	14-16
24	8	DIN 766	1500	70	23	Net	480	160	14-16
12	10	DIN 766	1500	130	23	Da	480	160
24	10	DIN 766	1500	70	23	Da	480	160
12	10	DIN 766	1500	130	23	Net	480	160
24	10	DIN 766	1500	70	23	Net	480	160
12	10	DIN 766	1700	138	25	Da	720	240
24	10	DIN 766	1700	75	25	Da	720	240
12	10	DIN 766	1700	138	25	Net	720	240
24	10	DIN 766	1700	75	25	Net	720	240

Documents

Instruction Italwinch Smart Plus Size: 6,6 Mb
