The Italwinch Moon Vertical Anchor Windlass is a premium anchoring system for boats up to 30 metres, manufactured entirely from AISI 316 marine-grade stainless steel for maximum corrosion resistance and durability. Available in 24V DC, 230/400V AC, and hydraulic configurations, the Moon series supports 13 mm DIN 766 and 14 mm ISO chains, features an integrated chain counter sensor, and is offered in high or low profile versions to suit different deck layouts. Selected models include a drum for combined rope and chain handling.
- Description
- Ask a Question
-

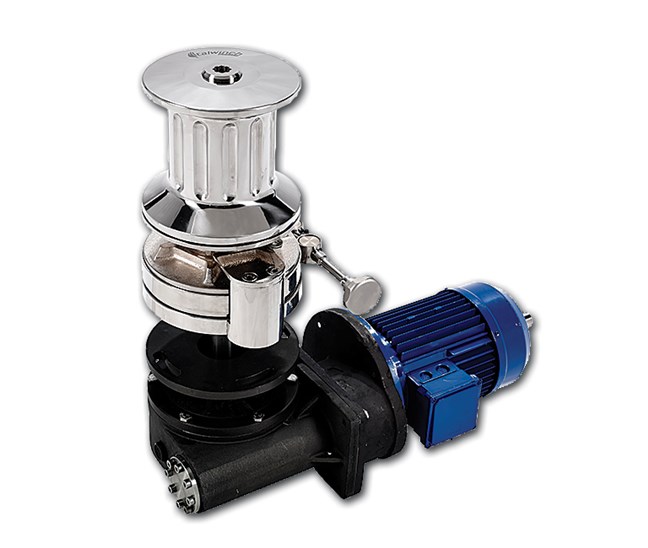

Italwinch Moon Vertical Anchor Windlass 3500/4000W with Drum for Boats up to 30 m – AISI 316 Stainless Steel
The Italwinch Moon Vertical Anchor Windlass is a heavy-duty anchoring solution developed for large yachts and professional vessels up to 30 metres in length. Manufactured entirely from AISI 316 stainless steel, it provides outstanding corrosion resistance, strength and long-term reliability in demanding marine environments.
The Moon series is available with 24V DC, 230/400V AC, and hydraulic drive systems, allowing the windlass to be matched to a wide variety of onboard power installations. High-profile and low-profile versions are available, while selected models are equipped with a drum for combined rope and chain operation.
Designed for 13 mm DIN 766 and 14 mm ISO anchor chains, the windlass incorporates an integrated chain counter sensor for precise anchor monitoring. Stud-link versions also support a detachable joining link (kenter link), making the Moon series suitable for demanding commercial and superyacht applications.
Key Features
- Vertical anchor windlass for vessels up to 30 m
- Manufactured entirely from AISI 316 marine-grade stainless steel
- Available in high-profile and low-profile versions
- 24V DC, 230/400V AC and hydraulic drive options
- Compatible with 13 mm DIN 766 and 14 mm ISO anchor chains
- Integrated chain counter sensor
- Selected models supplied with drum
- Stud-link versions compatible with kenter joining links
- Designed for heavy-duty marine applications
Technical Specifications
Specification Value Product Type Vertical Anchor Windlass Recommended Boat Length Up to 30 m Construction Material AISI 316 Stainless Steel Available Power 3500 W / 4000 W Available Voltages 24 V DC, 230/400 V AC, Hydraulic Chain Compatibility 13 mm DIN 766, 14 mm ISO Maximum Supported Chain Size Up to 16 mm (depending on version) Integrated Chain Counter Sensor Yes Profile Options High Profile / Low Profile Drum Available on selected models
Available Variants
- 230/400V • 4000W • 13 mm DIN 766 • Without Drum
- 230/400V • 4000W • 14 mm ISO • Without Drum
- 24V • 3500W • 13 mm DIN 766 • With Drum
- 24V • 3500W • 14 mm ISO • With Drum
- Hydraulic • 13 mm DIN 766 • With Drum
- Hydraulic • 14 mm ISO • With Drum
Applications
- Luxury yachts
- Superyachts
- Commercial vessels
- Heavy-duty anchoring systems
- Professional marine installations
-
