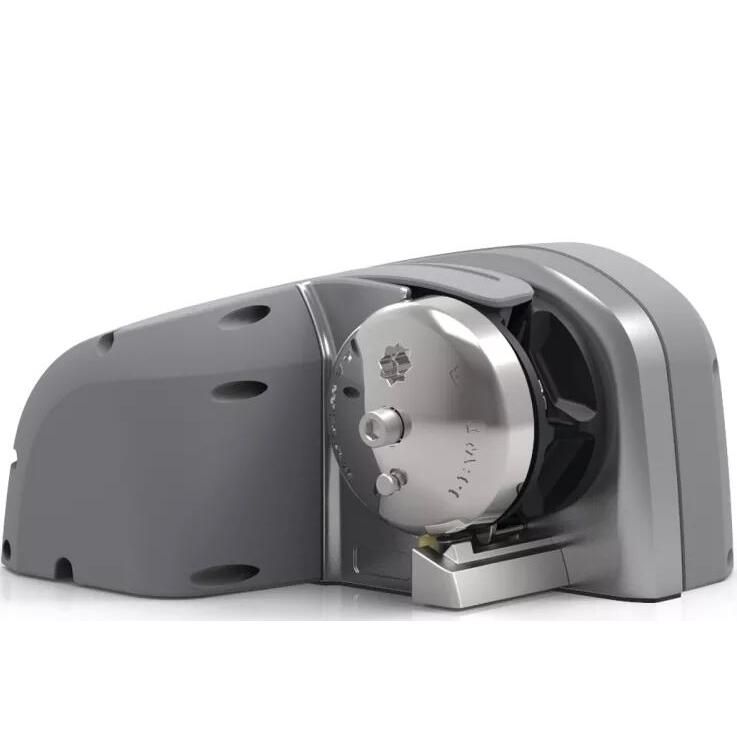

Lewmar HX1 Horizontal Anchor Windlass 12V

ID 1380277

$ 1,706.16

1-2 weeks delivery time

Diameter, mm:

Power, W

Item:

Without drum
With drum
GF Type

The Lewmar HX1 is a premium series of 12V horizontal anchor windlasses designed for reliable anchoring on boats from approximately 6 to 13 metres. The range includes both GO (single gypsy) and GD (gypsy with capstan) configurations, available with 500W or 800W motors and compatible with 6/7 mm or 8 mm DIN 766 chain. Built around an anodised aluminium base with a sealed deck unit and IP67 motor protection, the HX1 combines quiet planetary drive technology, low maintenance, and dependable performance in demanding marine environments.

Description
Ask a Question

Lewmar HX1 Horizontal Anchor Windlass 12V – GO & GD Versions, 500W & 800W for 6/7 mm & 8 mm Chain

The Lewmar HX1 is a professional horizontal anchor windlass series engineered for dependable anchoring performance, quiet operation, and long service life. Designed for recreational and cruising vessels, the HX1 combines an efficient planetary gearbox with a robust anodised aluminium chassis and durable composite housing, providing excellent corrosion resistance and reliable operation in harsh marine conditions.

The series is available in two deck configurations. The GO version features a single gypsy for rope and chain handling, while the GD version combines a rope/chain gypsy with an integrated capstan for additional mooring operations. All models are equipped with sealed deck units, IP67 motor protection and are designed for quick installation with minimal maintenance.

Depending on the selected version, the HX1 is supplied with either a 500 W or 800 W 12V motor and supports 6/7 mm or 8 mm DIN 766 anchor chain. GO models can also be upgraded with the optional Lewmar Free Fall Kit.

Key Features

Horizontal anchor windlass
Available in GO (gypsy only) and GD (gypsy + capstan) versions
12V electric motor
500W or 800W motor options
Quiet and efficient planetary gearbox
Waterproof sealed deck unit
IP67 motor protection
Strong anodised aluminium base
Durable composite housing
Low maintenance construction
Fast and straightforward installation
Optional Free Fall Kit available for GO versions

Available Variants

Lewmar Part No.	Version	Motor	Chain	Max Pull	Working Load	Weight
69140001	HX1 500 GO	500 W	6/7 mm DIN 766	700 daN	175 daN	9.0 kg
69140004	HX1 800 GO	800 W	8 mm DIN 766	1065 daN	266 daN	9.0 kg
69140005	HX1 500 GD	500 W	6/7 mm DIN 766	700 daN	175 daN	9.5 kg
69140008	HX1 800 GD	800 W	8 mm DIN 766	1065 daN	266 daN	9.5 kg

GO vs GD Configuration

Feature	GO	GD
Chain Gypsy	Yes	Yes
Capstan Drum	No	Yes
Free Fall Kit Compatible	Yes	No
Ideal Application	Anchor handling	Anchor handling + mooring lines

Technical Specifications

Specification	500 W Models	800 W Models
Voltage	12 V	12 V
Motor Power	500 W	800 W
Maximum Pull	700 daN	1065 daN
Working Load	175 daN	266 daN
Maximum Retrieval Speed	20 m/min	21 m/min
Motor Protection	IP67	IP67
Construction	Anodised aluminium & composite	Anodised aluminium & composite

Optional Accessories

Accessory	Lewmar Part Number
HX1 Free Fall Kit (GO only)	66140008
50 A Circuit Breaker	68000348
70 A Circuit Breaker	68000240

Package Contents

Lewmar HX1 windlass
Electric motor
External control unit
Gypsy (GO or GD configuration)
Installation hardware

Note: GO versions are supplied with a single rope/chain gypsy and are compatible with the optional Lewmar Free Fall Kit. GD versions incorporate an additional capstan for handling mooring lines. Always select the appropriate version according to your chain size (6/7 mm or 8 mm DIN 766) and onboard requirements.
