Italwinch OBI Horizontal Anchor Windlass for Boats up to 15 m

Italwinch OBI Horizontal Anchor Windlass 500–1500W for Boats up to 15 m – 12V & 24V

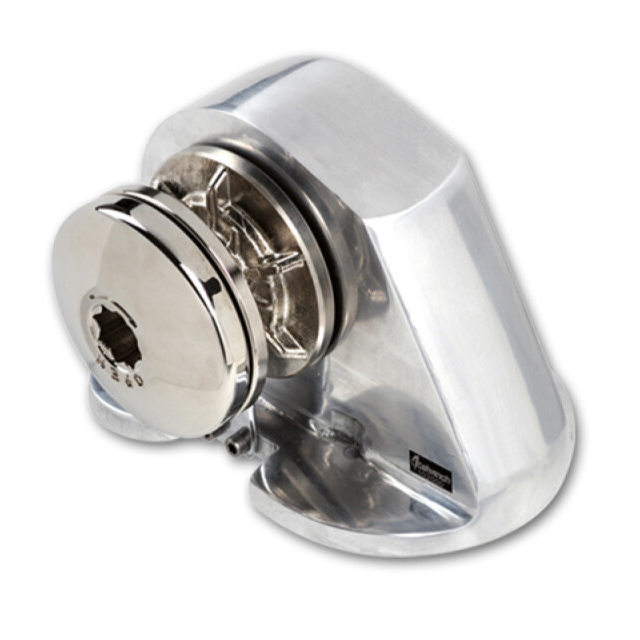

The Italwinch OBI is a compact horizontal anchor windlass designed for reliable anchoring on boats up to 15 metres. Manufactured with an anodized aluminium body, chromed brass gypsy and polished chromed cap, it provides excellent corrosion resistance while maintaining low weight and high durability for marine environments.

The OBI family is available with 12V and 24V electric motors ranging from 500W to 1500W. Depending on the selected model, the windlass is supplied either with or without an integrated drum and supports 6 mm, 8 mm, 10 mm and 10 mm DIN766 anchor chains. Selected configurations can also be used with rope-and-chain combinations when the rope is properly spliced to pass through the gypsy.

Every OBI windlass includes a built-in chain counter sensor, integrated line tensioner, solenoid, and a manual friction free-fall release lever, ensuring safe anchor deployment and smooth retrieval during everyday operation.

Key Features

• Horizontal electric anchor windlass for boats up to 15 m
• Corrosion-resistant anodized aluminium housing
• Chromed brass gypsy with chromed protective cap
• 12V and 24V electric versions available
• Motor ratings from 500W to 1500W
• Models available with or without integrated drum
• Compatible with 6 mm, 8 mm, 10 mm and 10 mm DIN766 anchor chains
• Built-in chain counter sensor
• Integrated line tensioner
• Solenoid included
• Manual free-fall release lever
• Suitable for chain or rope-and-chain anchor systems

Technical Specifications

Available Variants

12V Models

• 500W • 6 mm • Without Drum — Osculati 02.408.01
• 500W • 8 mm • Without Drum
• 700W • 6 mm • Without Drum — Osculati 02.408.02
• 700W • 8 mm • Without Drum — Osculati 02.408.03
• 1000W • 8 mm • With Drum — Osculati 02.408.05
• 1000W • 10 mm • With Drum
• 1000W • 10 mm DIN766 • With Drum — Osculati 02.408.09
• 1500W • 8 mm • With Drum — Osculati 02.408.08
• 1500W • 10 mm • With Drum

24V Models

• 1000W • 8 mm • With Drum
• 1000W • 10 mm • With Drum
• 1000W • 10 mm DIN766 • With Drum
• 1500W • 8 mm • With Drum — Osculati 02.408.10
• 1500W • 10 mm • With Drum

Applications

• Motorboats
• Cruising yachts
• Sailing yachts
• Boats up to 15 metres
• Chain-only or rope-and-chain anchoring systems
