ID
1379936
$ 1,857.94
1-2 weeks delivery time
Voltage:
- 12
- 24
Power, W
- 500
- 1000
Size, mm:
- 8
Item:
- Without drum

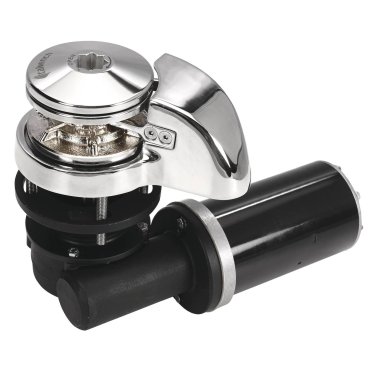

The Italwinch Smart is a compact vertical anchor windlass designed for boats up to 12 metres. Manufactured from polished AISI 316 stainless steel, it features an IP67 waterproof motor, integrated water outlet and a built-in chain counter sensor for reliable anchoring performance. This Trading Offer includes 500W (24V) and 1000W (12V) versions, both designed for 8 mm chain, supplied without a drum, and compatible with chain or rope-chain anchor systems using up to 12 mm three-strand rope.
- Description
- Ask a Question
-
Italwinch Smart Vertical Anchor Windlass 500W & 1000W – 8 mm Chain, AISI 316 Stainless Steel for Boats up to 12 m
The Italwinch Smart is a compact vertical anchor windlass engineered for reliable anchoring on boats up to 12 metres. Built from polished AISI 316 stainless steel, it provides excellent corrosion resistance together with dependable everyday performance in demanding marine environments.
The windlass features an IP67 waterproof motor, an integrated water outlet, and a factory-installed chain counter sensor for accurate anchor management. A mixed gypsy allows operation with both 8 mm anchor chain and 3-strand rope up to 12 mm, making the Smart series suitable for rope-chain anchor systems.
This Trading Offer includes two configurations without an integrated drum, providing a choice between a compact 500W 24V model and a more powerful 1000W 12V version.
Key Features
- Original Italwinch Smart vertical anchor windlass
- Recommended for boats up to 12 metres
- Polished AISI 316 stainless steel construction
- IP67 waterproof electric motor
- Integrated water outlet
- Built-in chain counter sensor
- Relay and release lever included
- Mixed gypsy for chain and rope-chain systems
- Compatible with 8 mm chain and 12 mm three-strand rope
- Without integrated drum
Technical Specifications
Specification Value Series Smart Product Type Vertical Anchor Windlass Recommended Boat Length Up to 12 m Material Polished AISI 316 Stainless Steel Motor Protection IP67 Water Outlet Integrated Chain Counter Sensor Integrated Included Components Relay and release lever Power Options 500W / 1000W Voltage 24V / 12V Chain Size 8 mm Rope Compatibility 3-strand rope up to 12 mm Drum Without drum
Available Variants
- 24V • 500W • 8 mm chain • Without drum
- 12V • 1000W • 8 mm chain • Without drum
Applications
- Motorboats
- Sailing yachts
- Boats up to 12 metres
- Chain and rope-chain anchoring systems
Documents
Instruction Italwinch Smart Size: 6,6 Mb2D drawing Italwinch Smart Size: 41,7 KbTechnical data sheet Italwinch Smart Size: 186,5 Kb -
