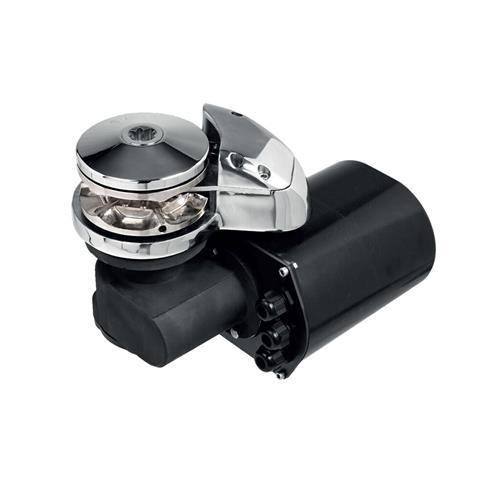

Italwinch CL-P Vertical Anchor Windlass 12V/24V, 700W–1500W

ID 1379703

$ 2,011.38

1-2 weeks delivery time

Diameter, mm:

Voltage:

Power, W

1000W
1500W
700W

Item:

Without drum
With drum

The Italwinch CLP Vertical Anchor Windlass is a premium AISI 316 stainless steel anchoring system designed for boats up to 16 meters. The series includes 12V and 24V versions with 700W, 1000W, and 1500W motors in low-profile (without drum) and drum configurations. Depending on the model, the windlass is compatible with 6 mm, 8 mm, or 10 mm DIN766 chain and selected rope/chain combinations. It features an integrated rope tension system, built-in chain counter sensor, IP67 motor protection, and delivers up to 1290 kg maximum pull, 160 kg working load, and line speeds up to 26 m/min.

Description
Ask a Question

Italwinch CLP Vertical Anchor Windlass 12V/24V, 700W–1500W, Low Profile or Drum for Boats up to 16 m

The Italwinch CLP Vertical Windlass is a professional anchoring system designed for sailing yachts and motorboats up to 16 metres in length. Manufactured entirely from corrosion-resistant AISI 316 stainless steel, the CLP series combines compact dimensions, modern engineering and dependable anchoring performance for demanding marine environments.

The range is available with 700W, 1000W and 1500W motors in both 12V and 24V configurations. Depending on the model, the windlass is supplied either as a low-profile unit without drum or as a version with an integrated drum, supporting 6 mm, 8 mm or 10 mm DIN766 anchor chain, with selected models also compatible with 14 mm rope.

Every CLP windlass incorporates an integrated rope tension system, reinforced chain guide, inspection hatch, built-in chain counter sensor and IP67-protected motor. Designed for reliable long-term operation, the units are supplied with relay and clutch handle for straightforward installation and dependable anchor handling.

Key Features

Vertical anchor windlass for boats up to 16 metres
Entirely manufactured from AISI 316 marine-grade stainless steel
Available with 700W, 1000W and 1500W motors
12V and 24V DC versions
Low-profile (without drum) and drum configurations
Compatible with 6 mm, 8 mm and 10 mm DIN766 anchor chain
Selected models support 14 mm rope/chain combination
Integrated rope tension system
Built-in chain counter sensor
Reinforced chain guide with inspection hatch
IP67 motor protection
Supplied with relay and clutch handle

Technical Specifications

Motor Power	Voltage	Chain Size	Maximum Pull	Working Load	Line Speed	Current Draw	Recommended Boat Size
700 W	12V / 24V	6 mm / 8 mm	Up to 1060 kg	130–140 kg	25 m/min	60–115 A	Up to 16 m
1000 W	12V / 24V	6 mm / 8 mm / 10 mm	Up to 1250 kg	130–150 kg	25 m/min	60–115 A	Up to 16 m
1500 W	12V / 24V	8 mm / 10 mm	Up to 1290 kg	150–160 kg	26 m/min	60–130 A	Up to 16 m

Available Versions

The CLP series is available in multiple voltage, power and configuration options to suit different anchor chain sizes and installation requirements.

Motor Configuration	Available Versions	Osculati Articles
700 W	12V / 24V 6 mm or 8 mm chain Without drum	02.414.32
1000 W	12V / 24V 6 mm, 8 mm or 10 mm chain With or without drum	02.414.42, 02.414.44
1500 W	12V / 24V 8 mm or 10 mm chain With or without drum	02.414.46, 02.414.48

Applications

Motorboats and sailing yachts up to 16 metres
Bow-mounted anchor handling systems
Chain and rope/chain anchoring installations
Recreational and professional marine applications
