ID
1379678
$ 1,262.22
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
Voltage:
- 12V
- 24V
Power, W
- 500W
- 1000W
- 700W
Item:
- Without drum
- With drum

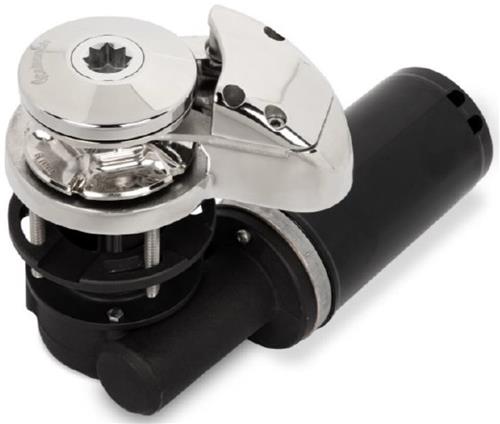

The Italwinch CLS Vertical Anchor Windlass is a compact AISI 316 stainless steel anchoring solution designed for boats up to 13 meters. The CLS series is available in 12V and 24V versions with 500W, 700W, and 1000W motors, offered in both low-profile (without drum) and drum configurations. Compatible with 6 mm and 8 mm DIN766 anchor chain, selected models also support 12 mm or 14 mm rope. Every windlass features an integrated chain counter sensor, reinforced chain guide, inspection hatch, IP67 motor protection, and delivers up to 1020 kg maximum pull, 130 kg working load, and 26 m/min retrieval speed.
- Description
- Ask a Question
-
Italwinch CLS Vertical Anchor Windlass 12V/24V, 500W–1000W, Low Profile or Drum for Boats up to 13 m
The Italwinch CLS Vertical Windlass is a compact and reliable anchoring system engineered for sailing yachts and motorboats up to 13 metres in length. Manufactured entirely from marine-grade AISI 316 stainless steel, the CLS series combines corrosion resistance, compact dimensions and dependable performance for everyday anchoring.
The range is available with 500W, 700W and 1000W motors in both 12V and 24V configurations. Models are offered either as low-profile windlasses without drum or as versions with an integrated drum, supporting 6 mm and 8 mm DIN766 anchor chain. Depending on the gypsy, the windlass is compatible with 12 mm or 14 mm anchor rope.
Every CLS windlass incorporates a reinforced chain guide, inspection hatch, integrated chain counter sensor and IP67 motor protection. The compact vertical design makes the series suitable for installations where below-deck space is limited while maintaining excellent anchoring performance.
Key Features
- Vertical anchor windlass for boats up to 13 metres
- Entirely manufactured from AISI 316 marine-grade stainless steel
- Available with 500W, 700W and 1000W motors
- 12V and 24V DC versions
- Low-profile (without drum) and drum configurations
- Compatible with 6 mm and 8 mm DIN766 anchor chain
- Supports 12 mm or 14 mm rope depending on model
- Integrated chain counter sensor
- Reinforced chain guide and inspection hatch
- IP67 protected motor
- Compact vertical installation
Technical Specifications
Motor Power Voltage Chain Size Rope Size Maximum Pull Working Load Line Speed Suitable Boats 500 W 12V / 24V 6 mm / 8 mm 12 mm 650 kg 90 kg 23 m/min Up to 13 m 700 W 12V / 24V 6 mm / 8 mm 12 mm 750 kg 100 kg 25 m/min Up to 13 m 1000 W 12V / 24V 6 mm / 8 mm 14 mm 1020 kg 130 kg 26 m/min Up to 13 m
Available Versions
The CLS series is available in multiple motor, voltage and installation configurations to match different anchor chain sizes and vessel requirements.
Motor Configuration Available Versions Osculati Articles 500 W 12V / 24V
6 mm or 8 mm chain
With or without drum02.411.21, 02.411.31 700 W 12V / 24V
6 mm or 8 mm chain
With or without drum02.411.23, 02.411.24 1000 W 12V / 24V
6 mm or 8 mm chain
With or without drum02.411.25, 02.411.35
Applications
- Motorboats and sailing yachts up to 13 metres
- Bow-mounted anchor handling systems
- Chain and rope/chain anchoring installations
- Recreational and professional marine applications
-
