JL Audio MV1000/5i 5-Channel Amplifier is designed for complete marine systems, supplying clean multi-channel power and a dedicated subwoofer channel with efficient Class D performance.
- Description
- Ask a Question
-

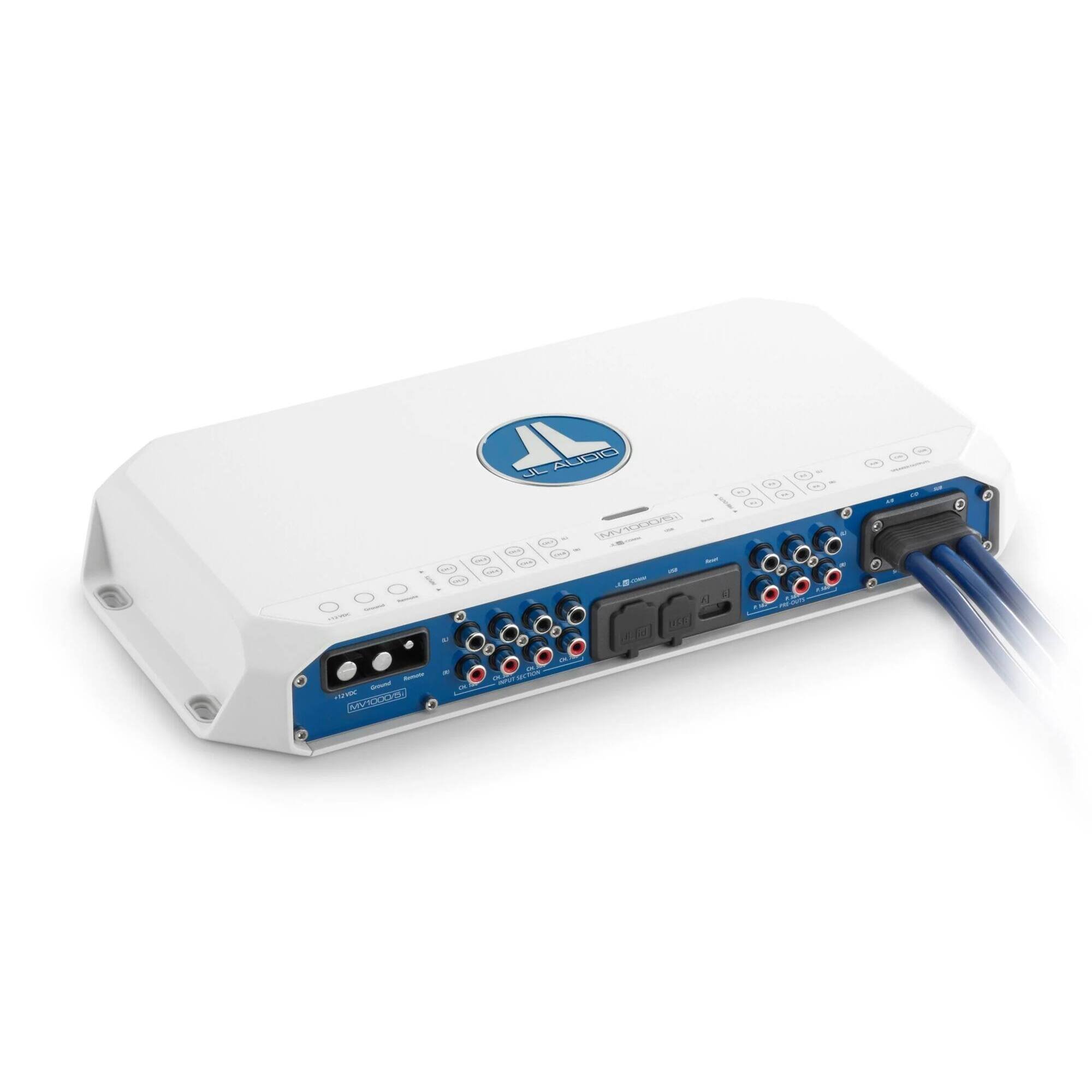

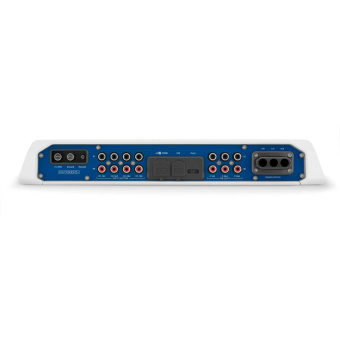

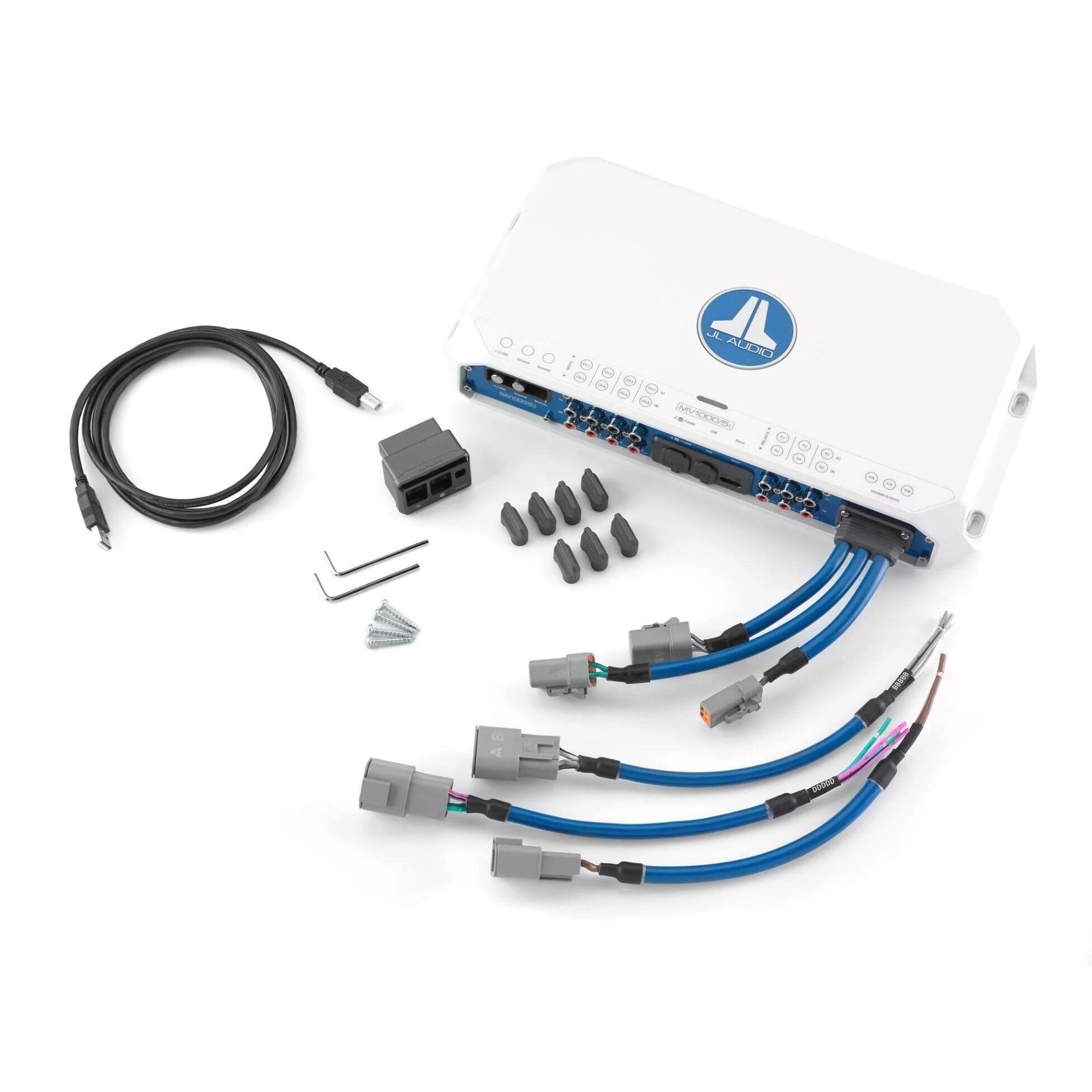

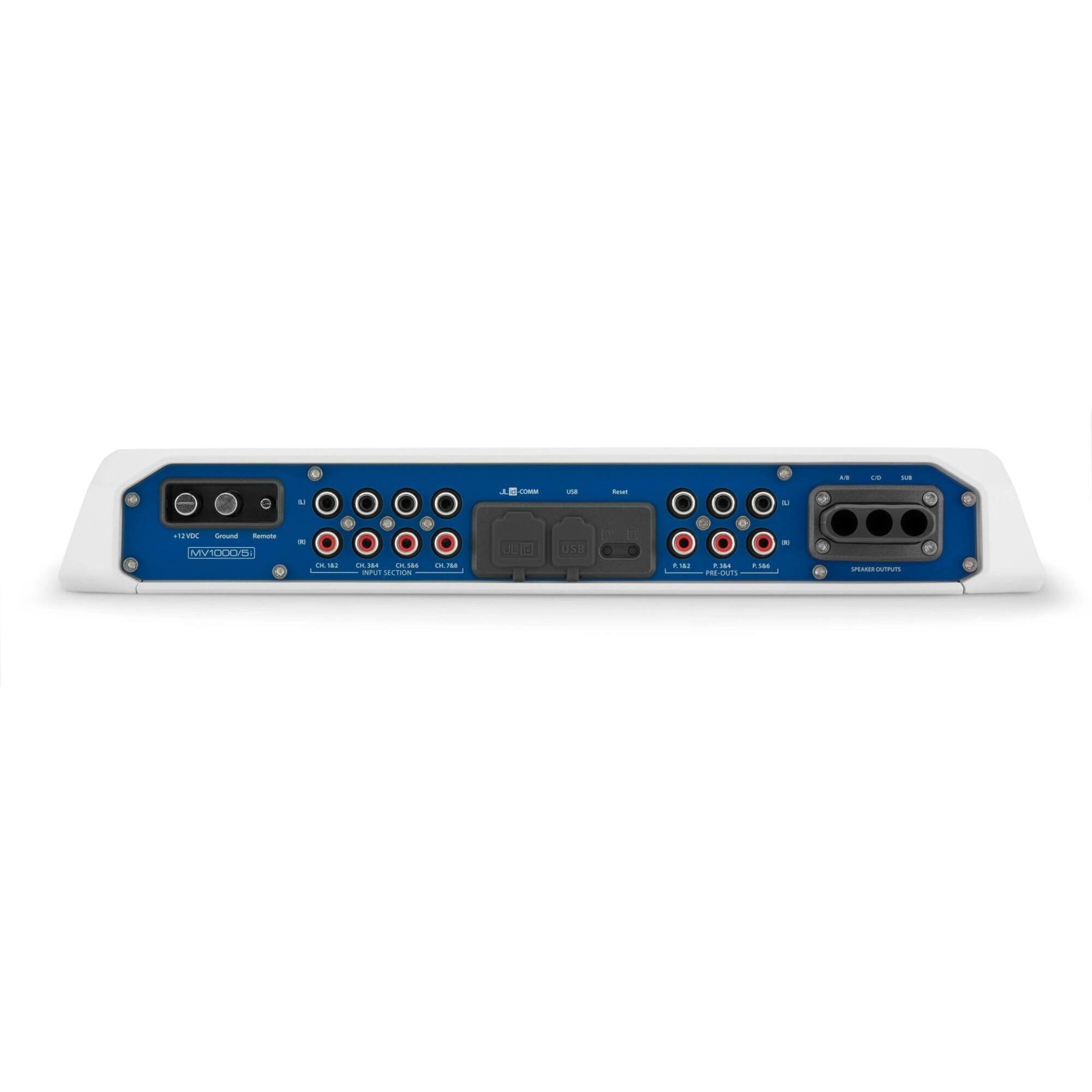

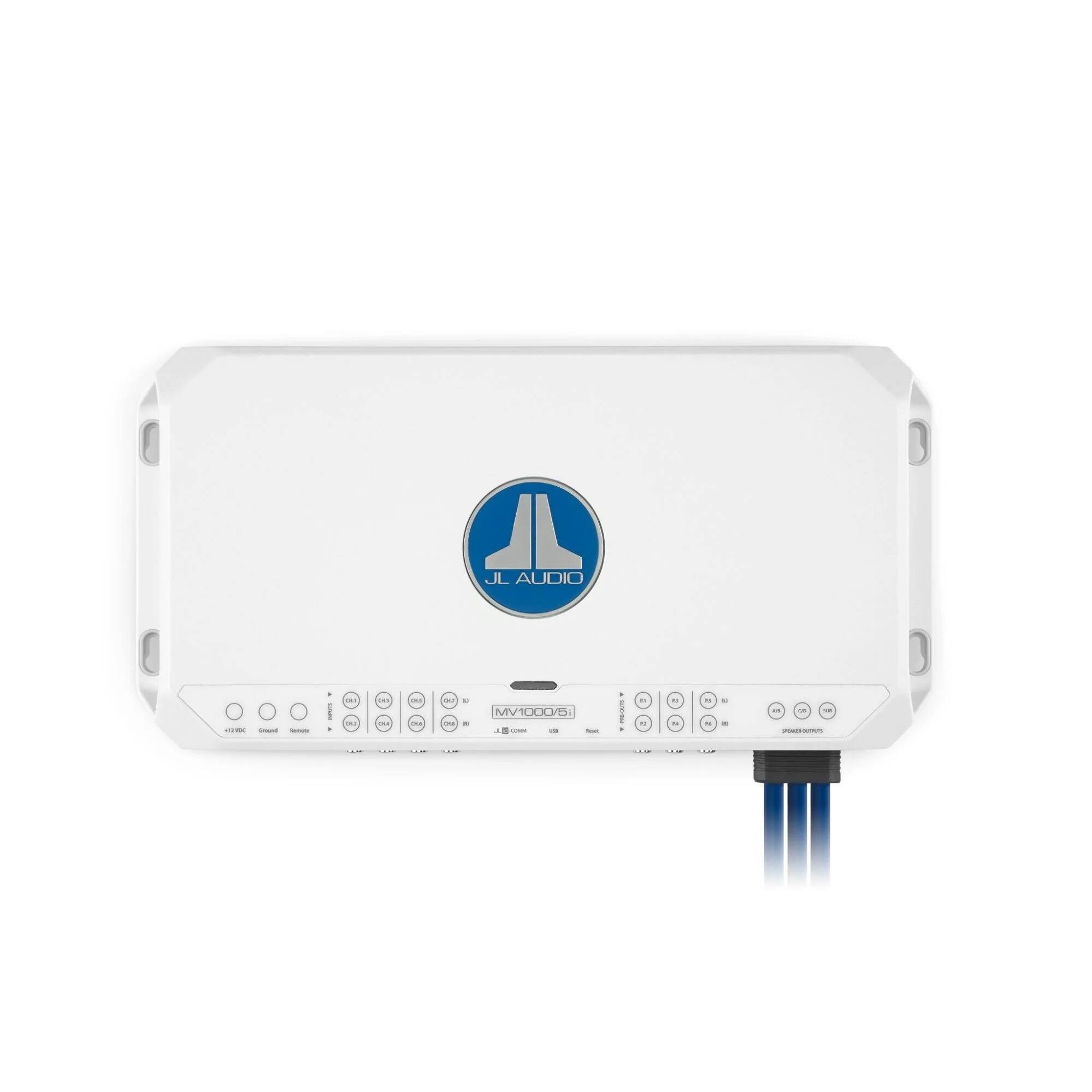

JL Audio 010-03341-00 - MV1000/5i 5-Channel Amplifier
The JL Audio MV1000/5i is a powerful 5-channel marine amplifier designed to deliver flexible system configuration and high-performance audio in demanding environments. Built with efficient Class D amplification and reinforced for marine use, it supports multiple channel modes and delivers clean, controlled power for both full-range speakers and subwoofers.

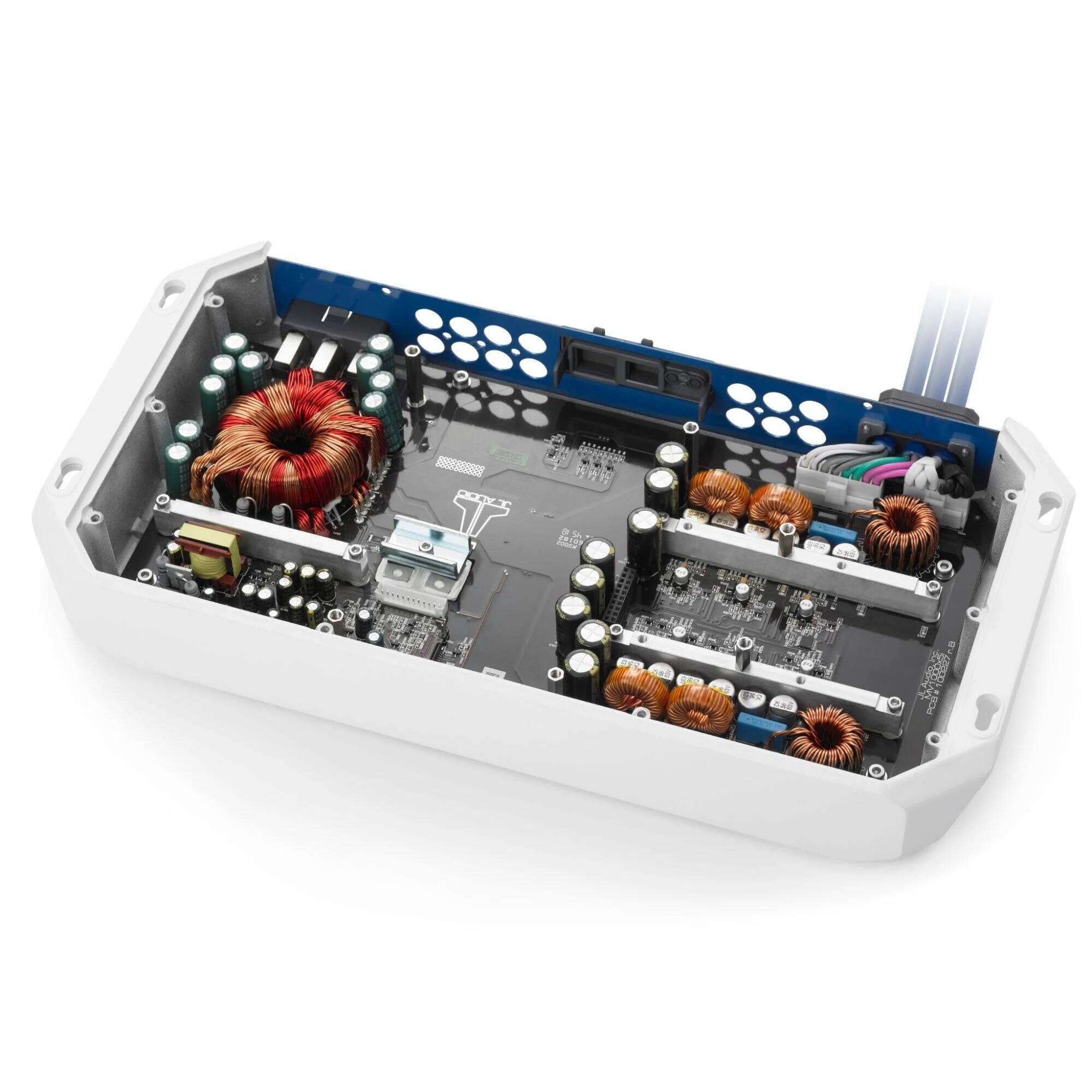

Its compact enclosure and corrosion-resistant design ensure long-term reliability, while advanced internal architecture provides excellent noise control, strong damping, and wide frequency response. The MV1000/5i is ideal for complete marine audio systems requiring both multi-channel speaker output and a dedicated subwoofer channel.
General Specifications
Channels Monoblock / 2 / 4 / 5 / 6 / 8 Amplifier Class Class D Operating Voltage 10–15 VDC Water And Dust Rating IPX2 (When Mounted Vertically With Connections Pointed Downward) Warranty 3 Years
Physical Dimensions
Height 52 mm (2.05") Width 355 mm (13.96") Depth 176 mm (6.93") Weight 2.54 kg (5.6 lbs)
Power Output – 5-Channel Configuration (RMS)
14.4 V @ 4 Ohm Main: 75 W x 4 / Sub: 400 W x 1 14.4 V @ 2 Ohm Main: 100 W x 4 / Sub: 600 W x 1 12.5 V @ 4 Ohm Main: 60 W x 4 / Sub: 360 W x 1 12.5 V @ 2 Ohm Main: 90 W x 4 / Sub: 600 W x 1
Audio Performance
Frequency Response – Main Channels 12 Hz – 24 kHz Frequency Response – Subwoofer Channel 12 Hz – 1 kHz Signal-to-Noise Ratio (Max Power) 99 dB Signal-to-Noise Ratio (1 W) Main: 80 dB / Sub: 72 dB Damping Factor @ 4 Ohm > 150 / 50 Hz Damping Factor @ 2 Ohm > 50 / 50 Hz THD+N < 1% @ 2 Ohm per Channel
Electrical Specifications
Input Voltage Range (RCA) 250 mV – 16 V RMS Fuse Rating 80 A Recommended Fuse Types AFS, AGU, MaxiFuse™ Minimum Power / Ground Wire Gauge 4 AWG
Technical Characteristics
Total Power 1000 W Voltage 12 V
Brand: JL Audio
Barcode: 0699440986519 -
