JL Audio XDM400/4 4-Channel Marine Amplifier delivers efficient, low-distortion Class D performance in a compact marine-ready design, ideal for powering full-range speakers with flexible channel options.
- Description
- Ask a Question
-

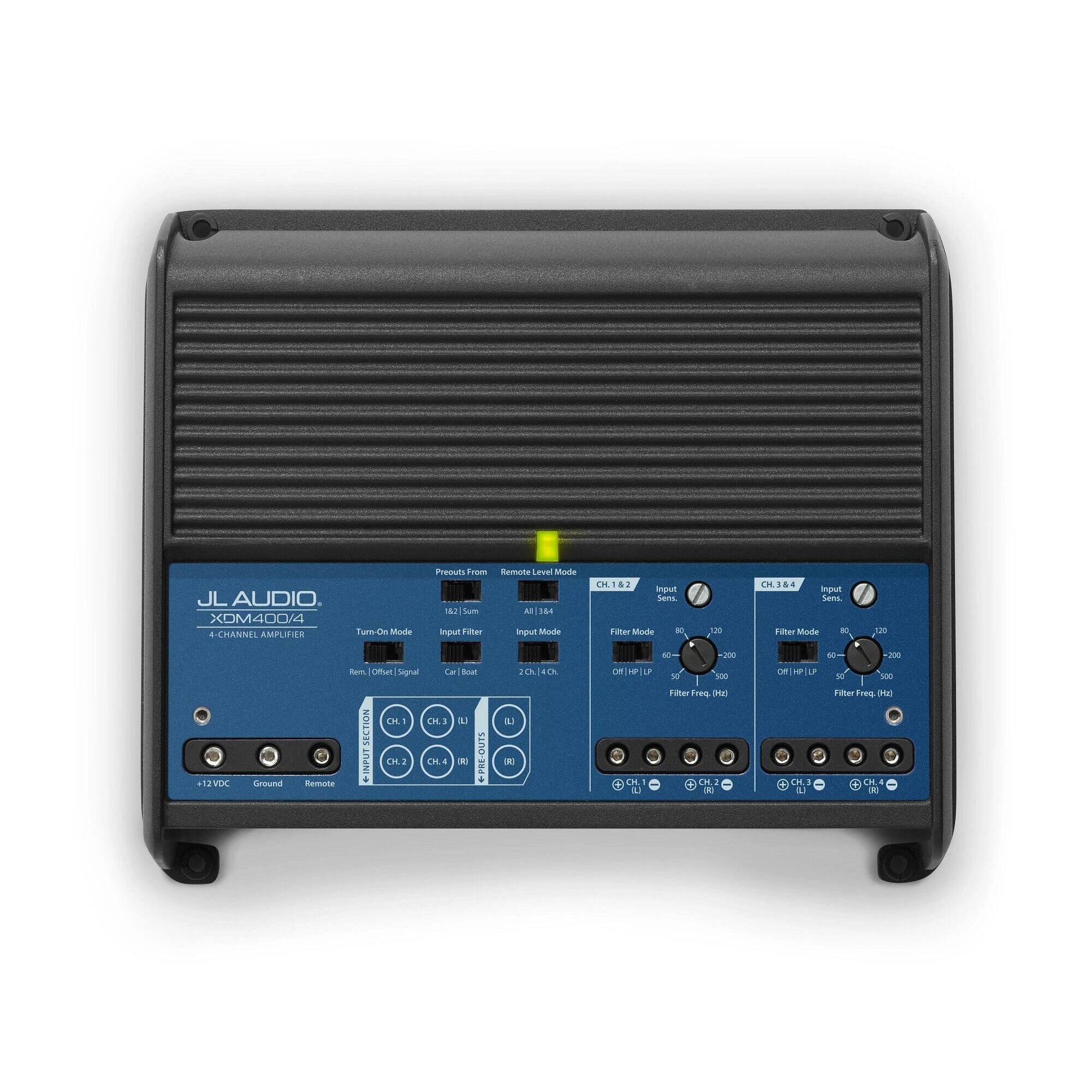

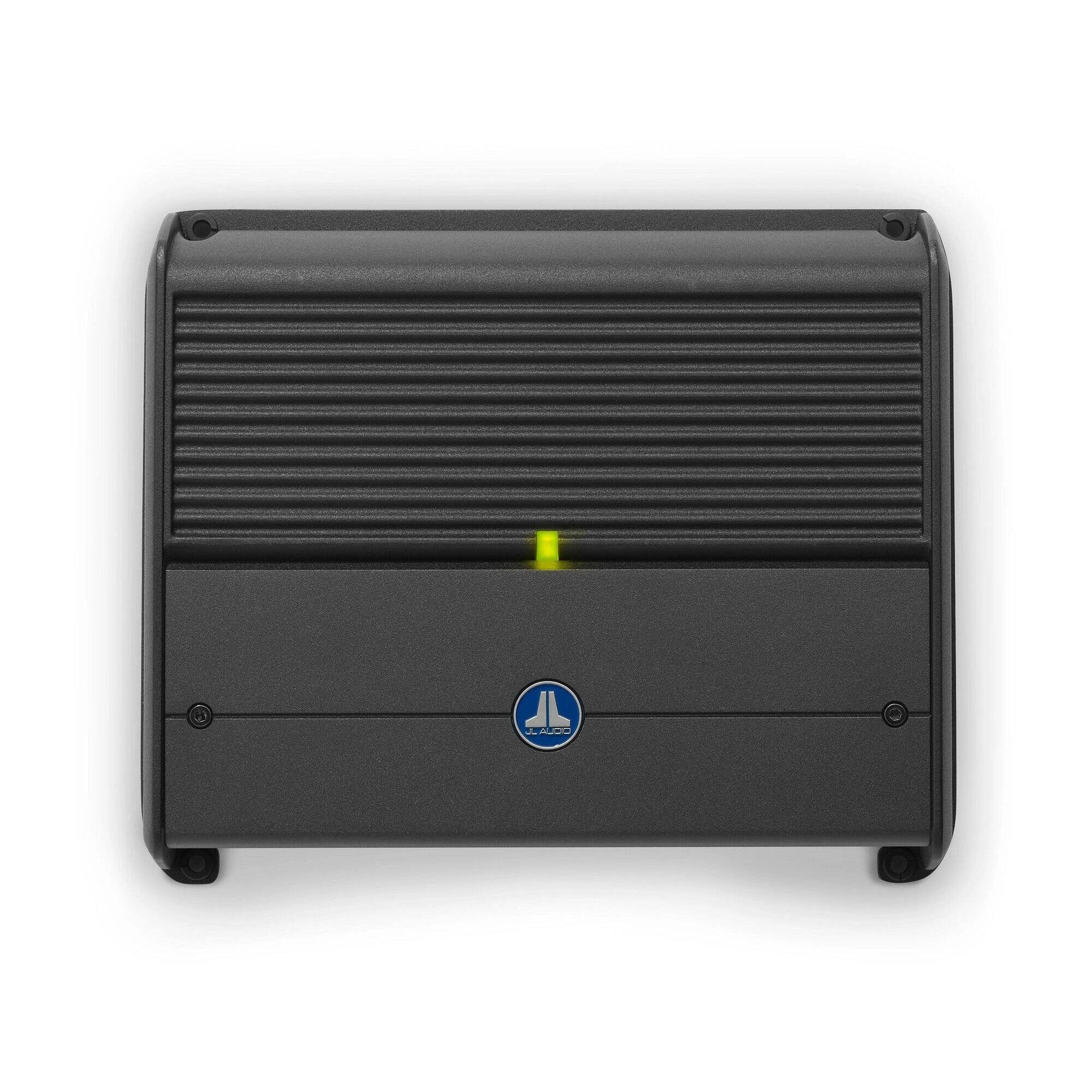

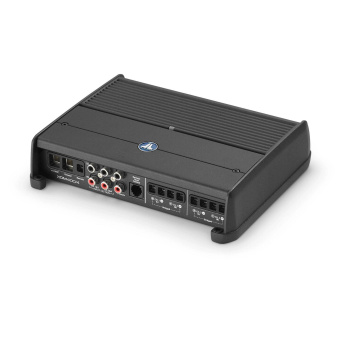

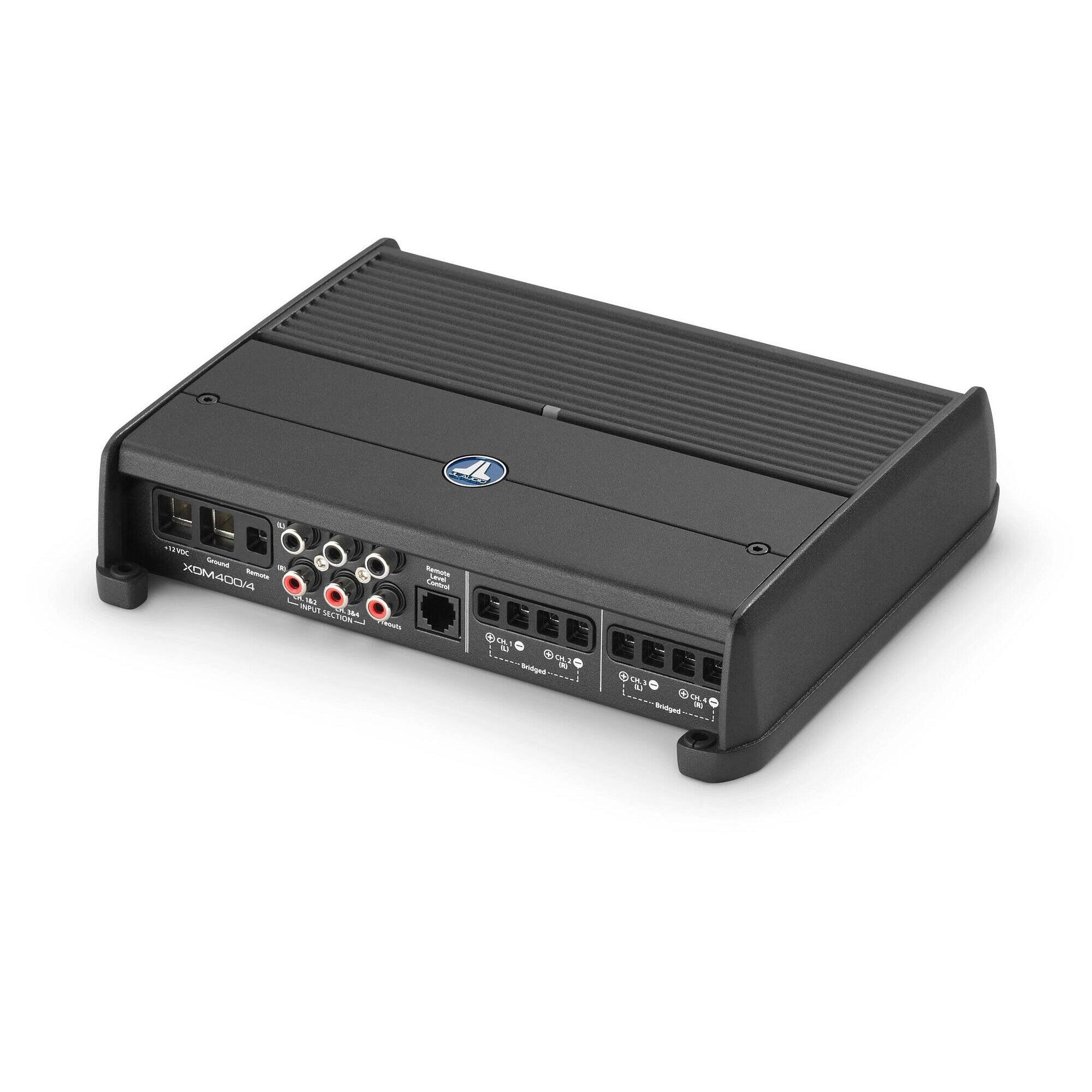

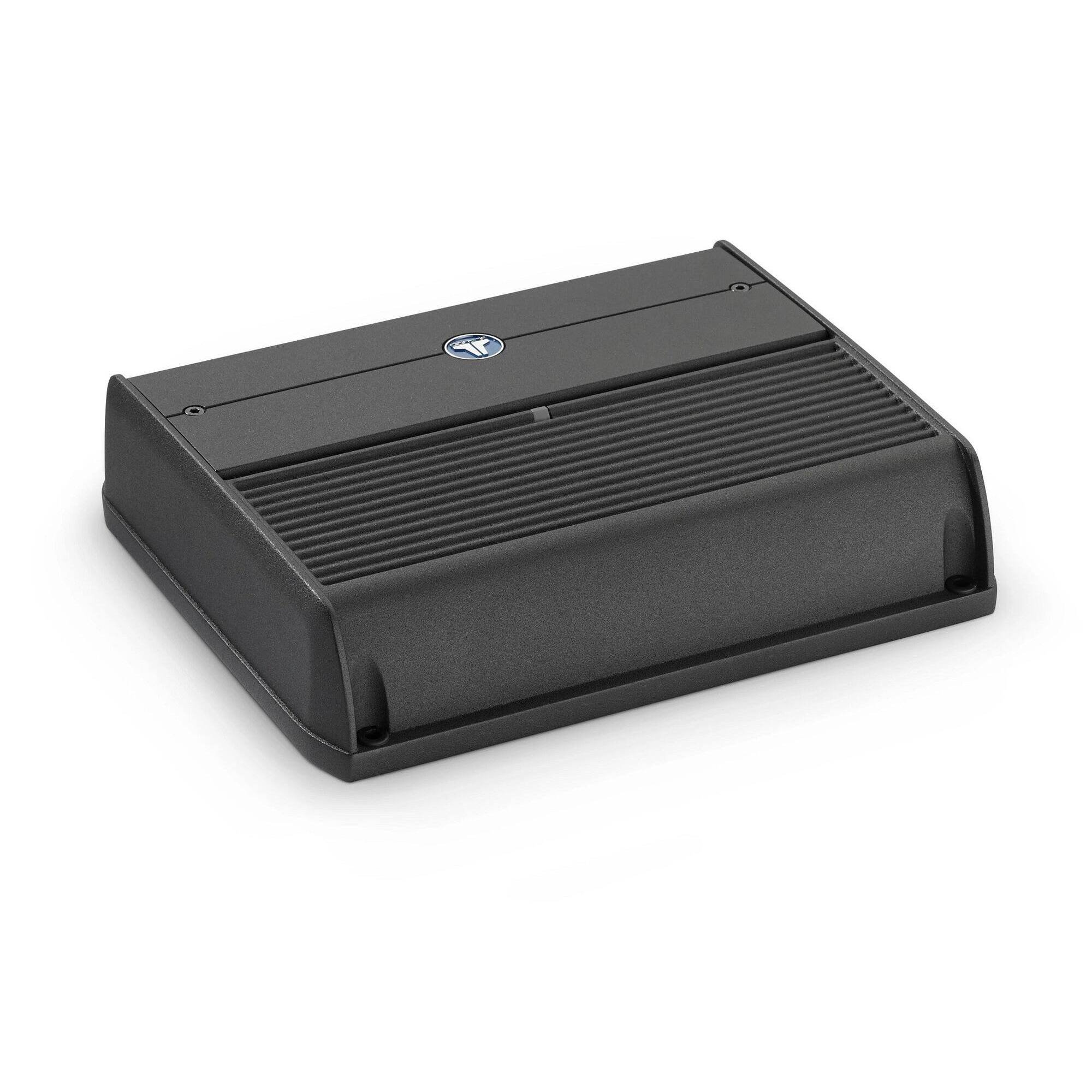

JL Audio 010-03115-00 - XDM400/4 4-Channel Marine Amplifier
The JL Audio XDM400/4 is a high-efficiency 4-channel marine amplifier designed to deliver clean, powerful sound in harsh marine environments. Using advanced Class D technology, it provides excellent audio performance with low distortion, high damping factor, and outstanding noise control.
Its compact marine-grade chassis is engineered for durability and reliable operation in 12 V systems. The XDM400/4 supports flexible channel configurations, including bridged operation, making it ideal for powering full-range speakers in boats and other marine applications.
General Specifications
Channels Monoblock / 2 / 3 / 4 / 5 / 6 / 8 Amplifier Class Class D Operating Voltage 11–14.5 VDC (12 V Models) Warranty 3 Years
Physical Dimensions
Height 52 mm (2.05") Width 216 mm (8.52") Depth 180 mm (7.09") Weight 2.18 kg (4.8 lbs)
Power Output – 4-Channel Configuration (RMS)
14.4 V @ 4 Ohm 75 W x 4 / 200 W x 2 (Bridged) 14.4 V @ 2 Ohm 100 W x 4 12.5 V @ 4 Ohm 60 W x 4 / 180 W x 2 (Bridged) 12.5 V @ 2 Ohm 90 W x 4
Audio Performance
Frequency Response (+0, -1 dB) 12 Hz – 22 kHz Signal-to-Noise Ratio (Max Power) > 104 dB Signal-to-Noise Ratio (1 W) > 84 dB Damping Factor @ 4 Ohm > 150 / 50 Hz Damping Factor @ 2 Ohm > 75 / 50 Hz THD+N < 1% @ 2 Ohm per Channel
Electrical Specifications
Input Voltage Range (RCA) 200 mV – 4 V RMS Fuse Rating 40 A Recommended Fuse Types AFS, AGU, MaxiFuse™ Minimum Power / Ground Wire Gauge 4 AWG
Technical Characteristics
Total Power 400 W Voltage 12 V
Brand: JL Audio
Barcode: 0699440986816 -
