JL Audio XDM600/6 is a high-efficiency 6-channel Class D marine amplifier designed for multi-speaker systems. It provides consistent 600 W total output with low distortion, flexible bridging options, and reliable performance in harsh marine conditions.
- Description
- Ask a Question
-

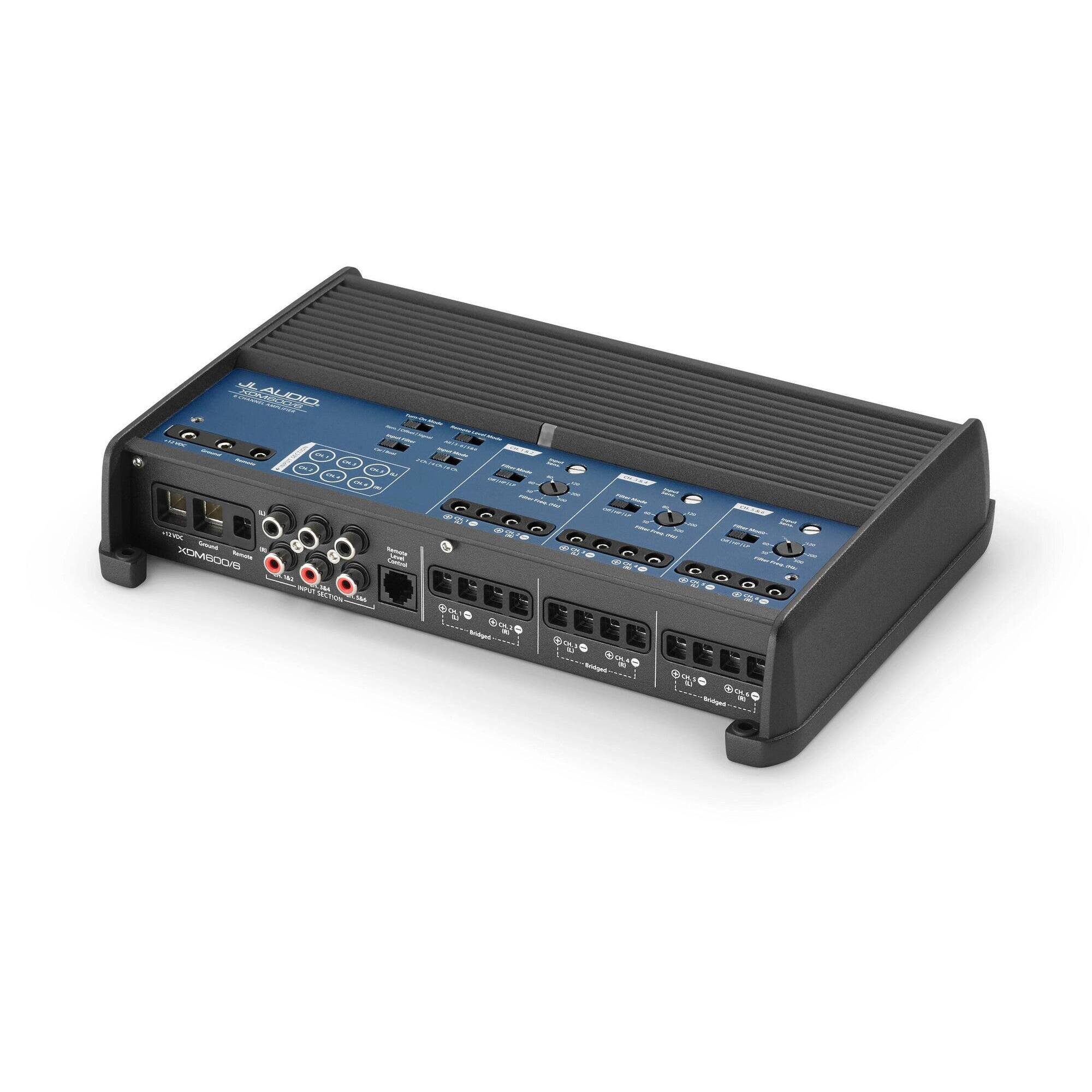

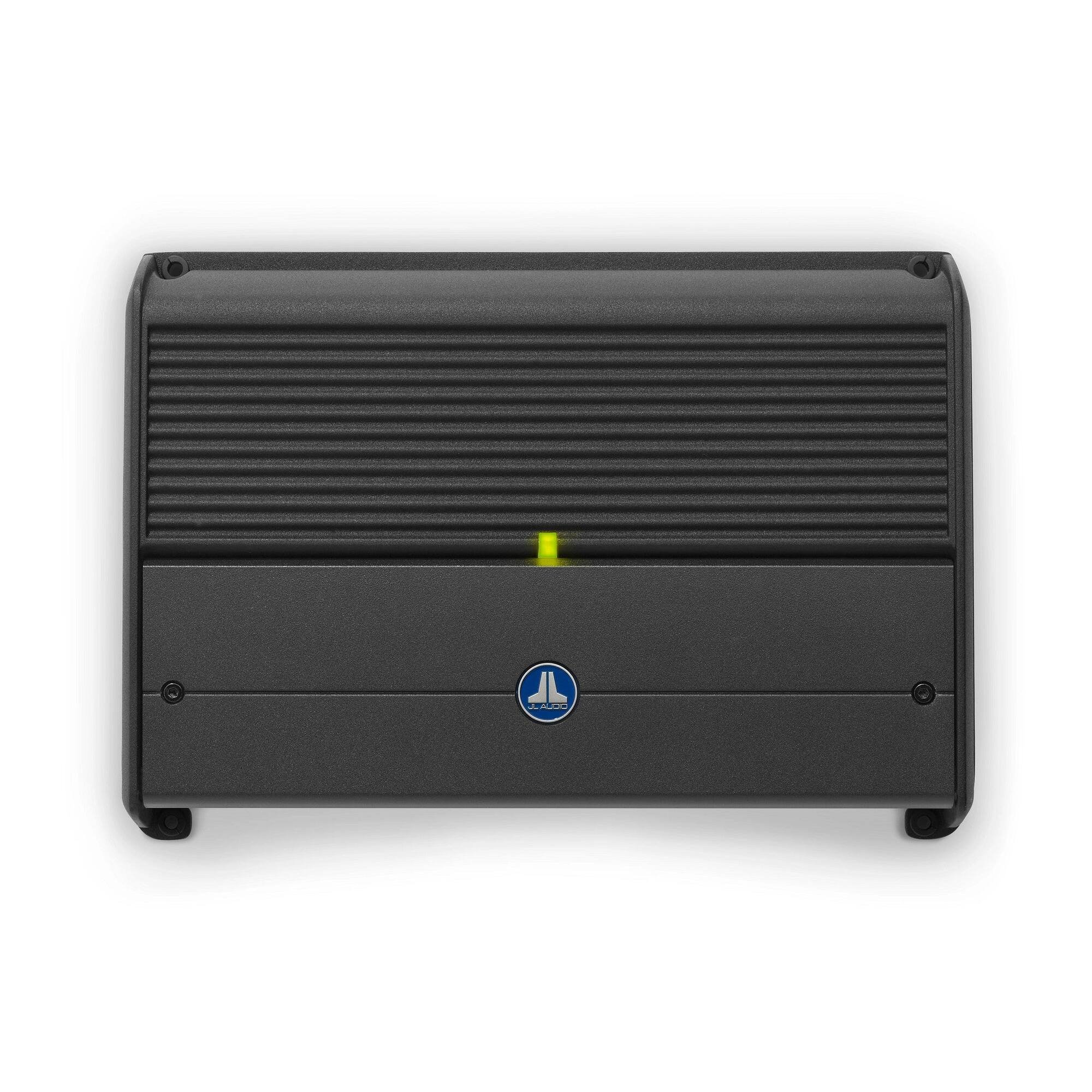

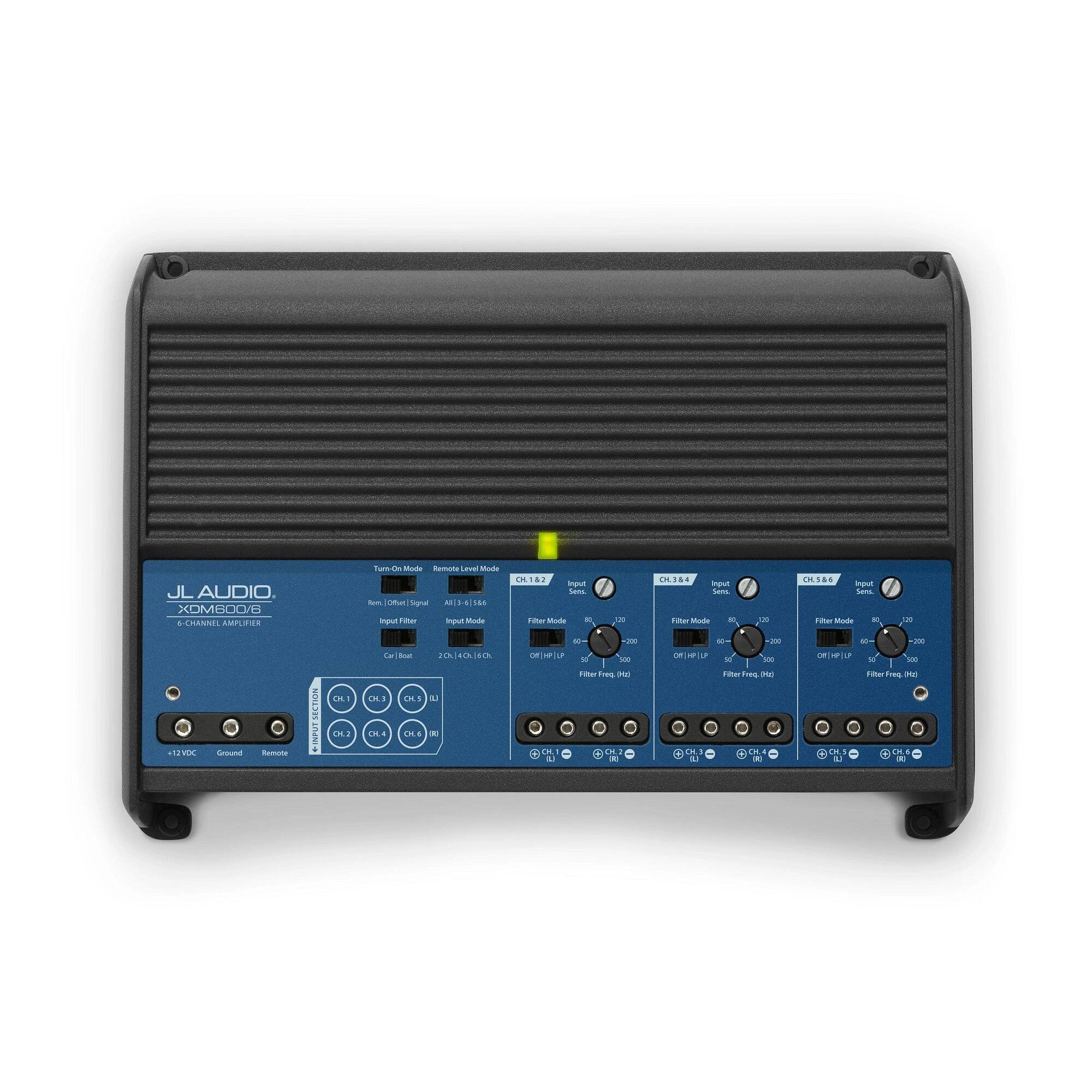

JL Audio 010-03117-00 - XDM600/6 Series Marine Amplifier 600W
The JL Audio XDM600/6 Series Marine Amplifier is a high-efficiency Class D solution engineered for powerful and reliable multi-channel marine audio systems. Delivering a total output of 600 W, this amplifier is designed to perform consistently in demanding environments while maintaining excellent sound clarity, low distortion, and high signal-to-noise performance. Its compact chassis supports flexible installation options, making it ideal for modern marine and mobile audio applications.
General Specifications
Channels Monoblock / 2 / 3 / 4 / 5 / 6 / 8 Amplifier Class Class D Operating Voltage 11–14.5 VDC (12 V Models) Warranty 3 Years
Physical Dimensions
Height 2.05" (52 mm) Width 6-Channel: 10.23" (260 mm) Depth 7.09" (180 mm) Weight 5.8 lbs (2.63 kg)
Rated Continuous Power (RMS)
14.4 V @ 4 Ω 75 W x 6 / 200 W x 3 (Bridged) 14.4 V @ 2 Ω 100 W x 6 12.5 V @ 4 Ω 60 W x 6 / 180 W x 3 (Bridged) 12.5 V @ 2 Ω 90 W x 6 28.8 V @ 4 Ω (24 V) 75 W x 6 / 200 W x 3 (Bridged) 28.8 V @ 2 Ω (24 V) 100 W x 6 25 V @ 4 Ω (24 V) 60 W x 6 / 180 W x 3 (Bridged) 25 V @ 2 Ω (24 V) 90 W x 6
Audio Performance
Signal-to-Noise Ratio (Rated Power) > 104 dB Signal-to-Noise Ratio (1 W) > 84 dB Damping Factor @ 4 Ω > 150 / 50 Hz Damping Factor @ 2 Ω > 75 / 50 Hz THD+N @ Rated Power < 1% @ 2 Ω per Channel Frequency Response 12 Hz – 22 kHz
Inputs And Electrical
Input Voltage Range (RCA) 200 mV – 4 V RMS Fuse Rating 50 A Recommended Fuse Type AFS, AGU or MaxiFuse™ Minimum Power/Ground Wire Gauge 4 AWG
Additional Information
Power 600 W Voltage 12 V
Brand: JL Audio
Barcode: 0699440986847 -
