JL Audio XDM500/3 is a compact 3-channel Class D marine amplifier delivering clean, efficient power for two full-range channels and a dedicated subwoofer. Designed for 12 V systems, it offers flexible configuration, low distortion, and reliable performance in demanding marine environments.
- Description
- Ask a Question
-

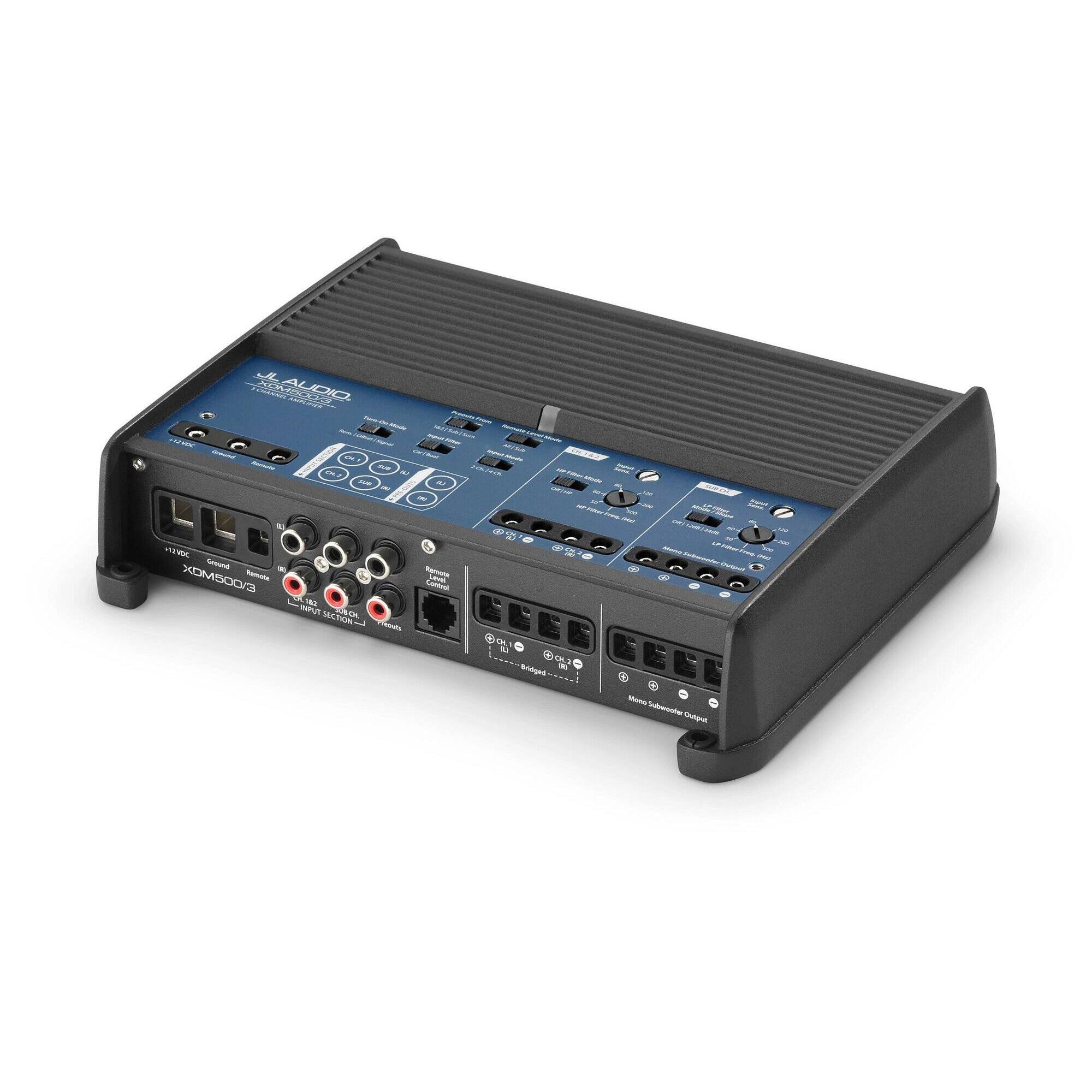

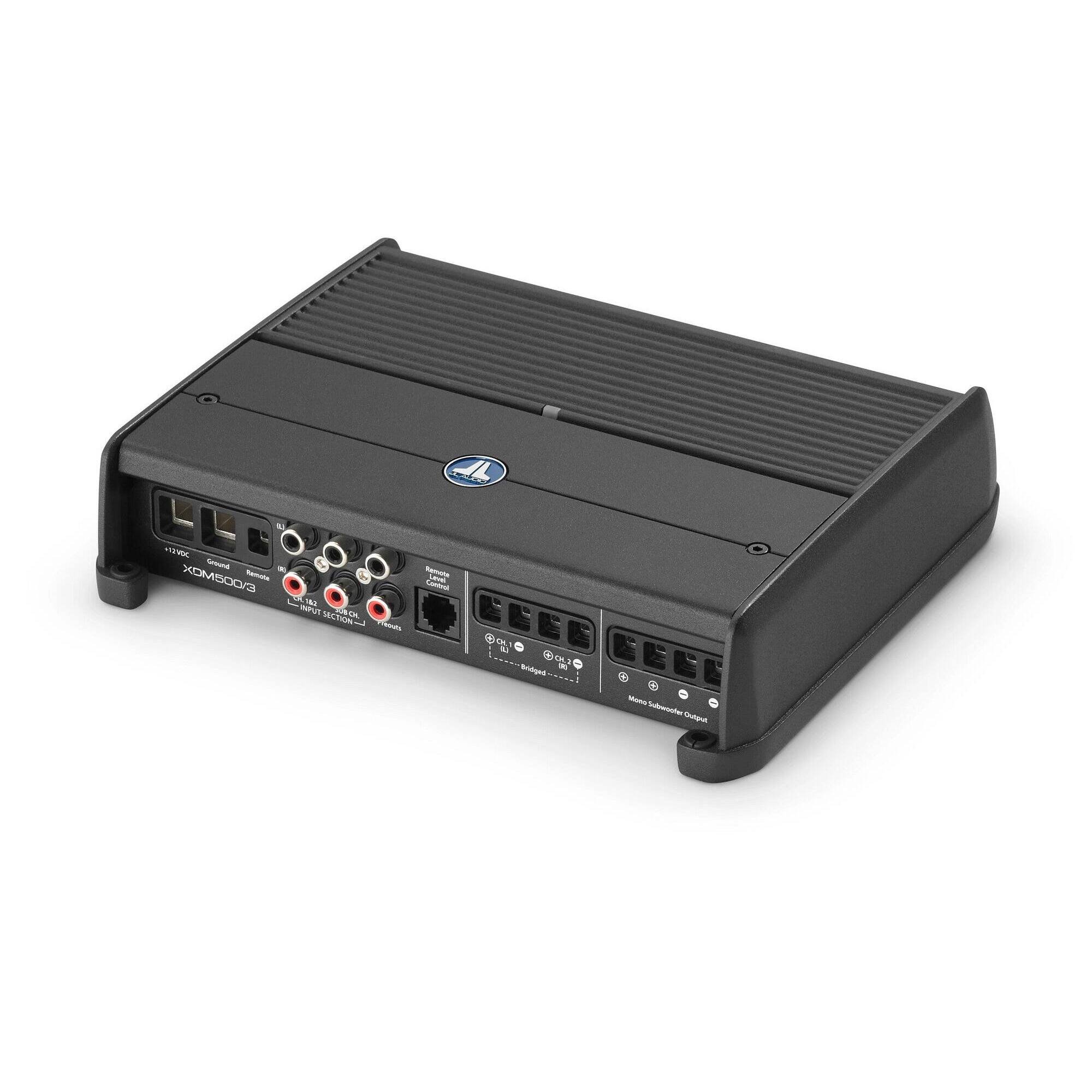

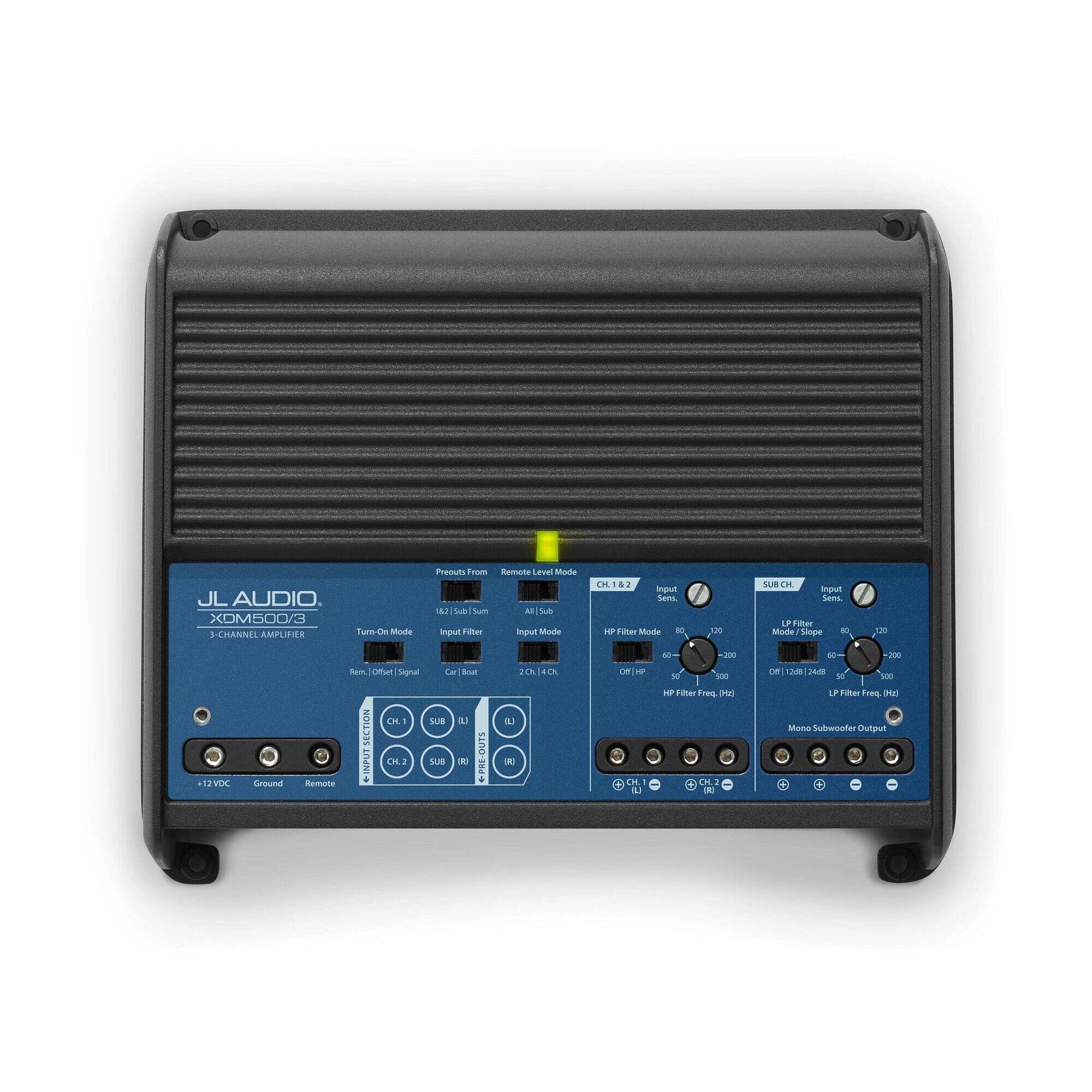

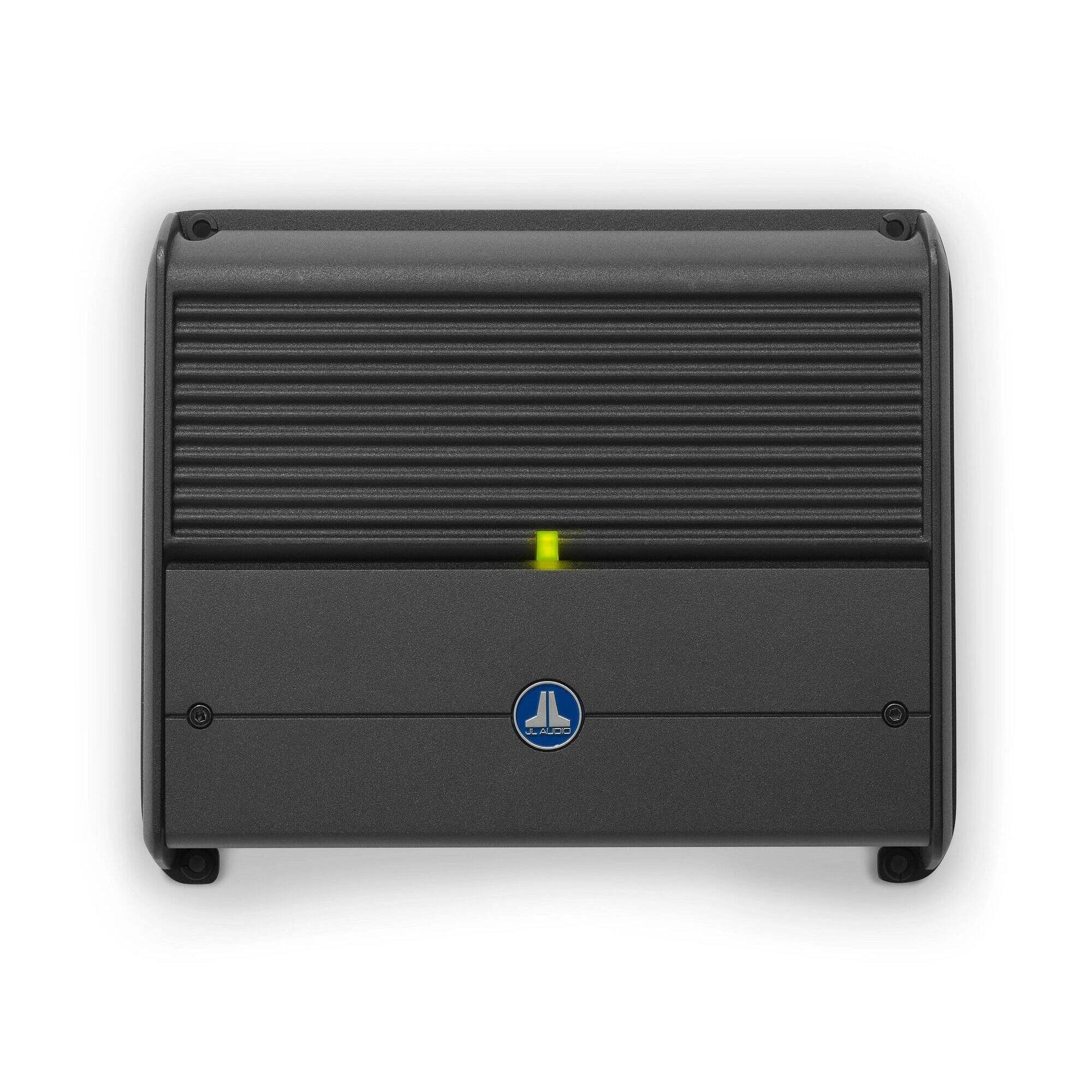

JL Audio 010-03343-00 - XDM500/3 3-Channel Amplifier 500W
The JL Audio XDM500/3 is a high-efficiency 3-channel marine amplifier designed to power full-range speakers and a dedicated subwoofer from a single compact chassis. Built with advanced Class D technology, it delivers clean, stable output with low distortion and excellent damping, making it ideal for demanding marine audio installations.
Engineered for 12 V systems, the XDM500/3 offers flexible configuration options and consistent performance across varying voltage conditions. Its marine-ready construction ensures reliable operation in challenging environments while maintaining high signal clarity.
General Specifications
Channels Monoblock / 2 / 3 / 4 / 5 / 6 / 8 Amplifier Class Class D Operating Voltage 11–14.5 VDC (12 V Models) Warranty 3 Years
Physical Dimensions
Height 52 mm (2.05") Width 216 mm (8.52") Depth 180 mm (7.09") Weight 2.18 kg (4.8 lbs)
Power Output – 3-Channel Configuration (RMS)
14.4 V @ 4 Ohm Main: 75 W x 2 / Sub: 180 W x 1 14.4 V @ 2 Ohm Main: 100 W x 2 / Sub: 300 W x 1 12.5 V @ 4 Ohm Main: 60 W x 2 / Sub: 180 W x 1 12.5 V @ 2 Ohm Main: 90 W x 2 / Sub: 300 W x 1
Audio Performance
Frequency Response – Main Channels 12 Hz – 22 kHz Frequency Response – Subwoofer Channel 10 Hz – 1 kHz Signal-to-Noise Ratio (Max Power) > 104 dB Signal-to-Noise Ratio (1 W) Main: > 84 dB / Sub: > 83 dB Damping Factor @ 4 Ohm > 120 / 50 Hz Damping Factor @ 2 Ohm > 60 / 50 Hz THD+N < 1% @ 2 Ohm per Channel
Electrical Specifications
Input Voltage Range (RCA) 200 mV – 4 V RMS Fuse Rating 50 A Recommended Fuse Types AFS, AGU, MaxiFuse™ Minimum Power / Ground Wire Gauge 4 AWG
Technical Characteristics
Total Power 500 W Voltage 12 V
Brand: JL Audio
Barcode: 0699440986823 -
