ID
1341276
$ 1,365.88
1-2 weeks delivery time
-
+
JL Audio XDM800/8v2 is an 8-channel Class D marine amplifier engineered for high-output, multi-zone audio systems. It delivers strong, clean power with excellent damping control, flexible configurations, and dependable operation in demanding marine environments.
- Description
- Ask a Question
-

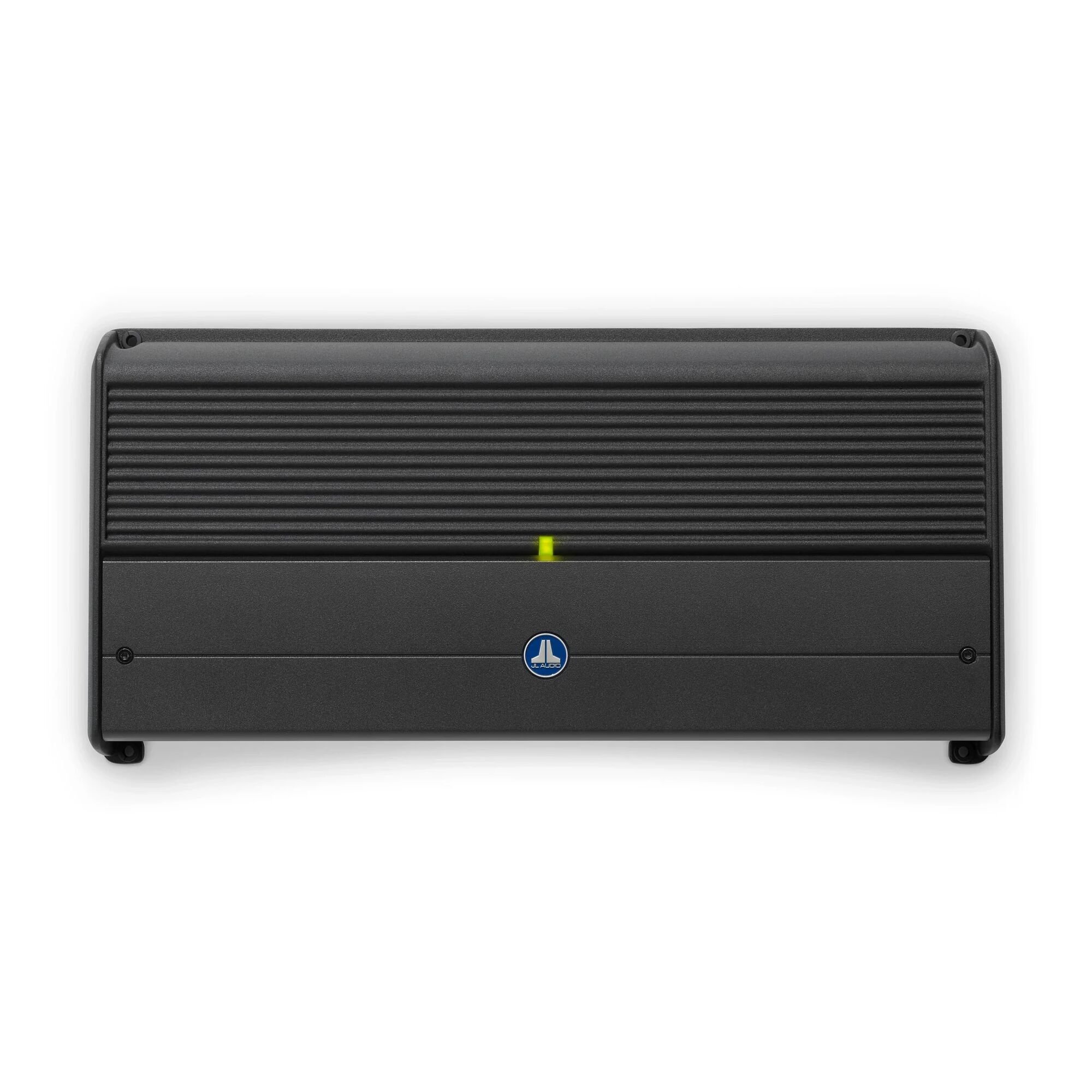

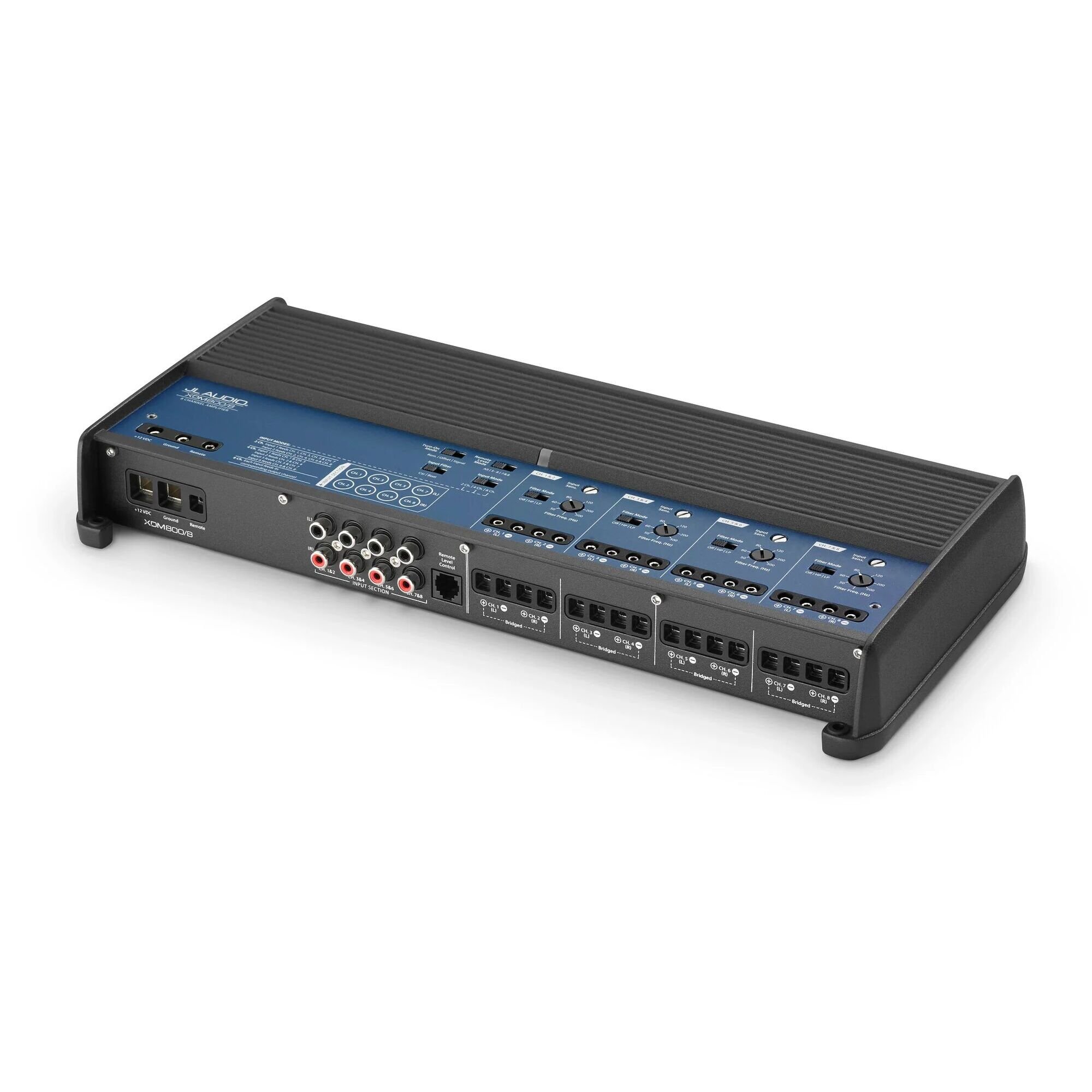

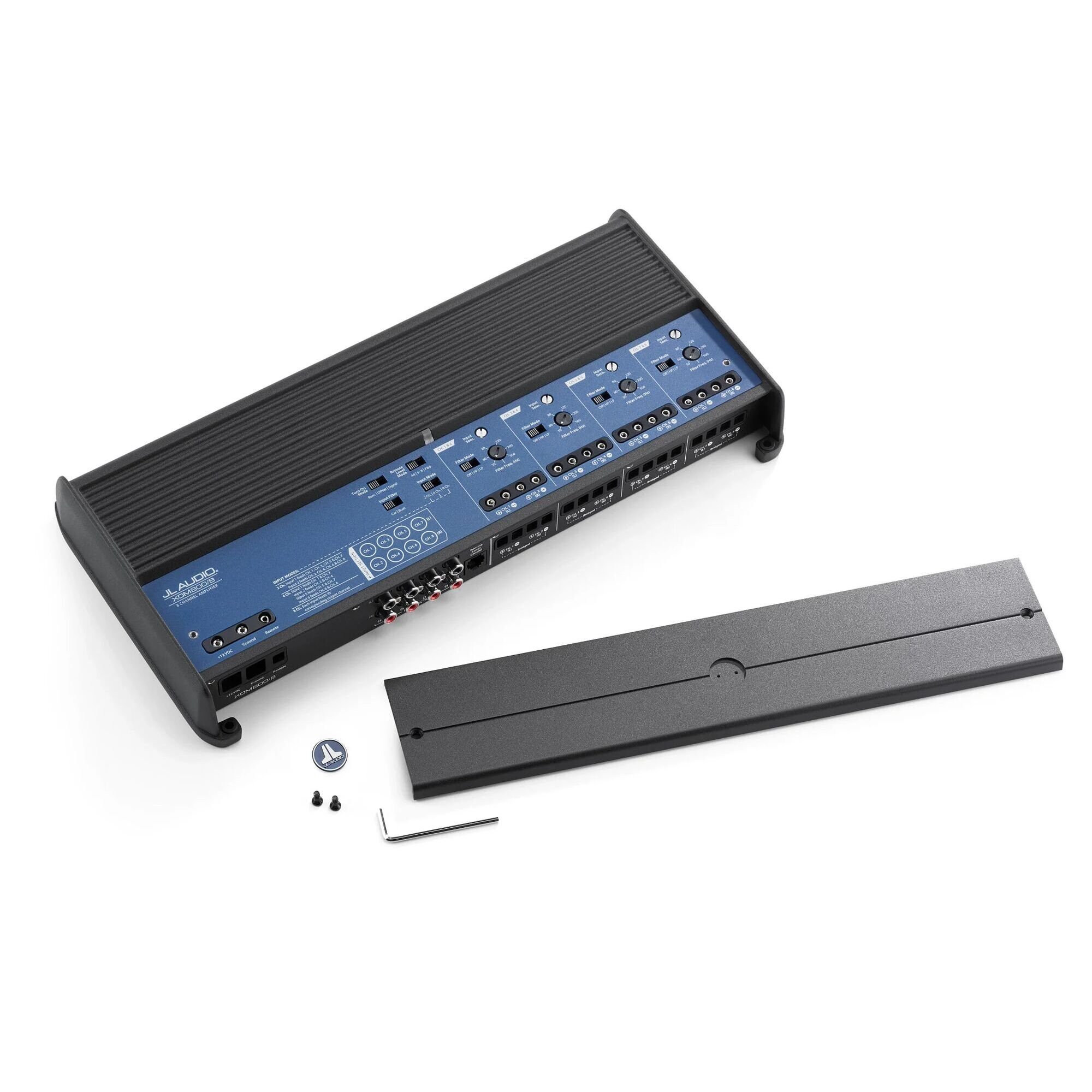

JL Audio 010-03119-00 - XDM800/8v2 Series Marine Amplifier
The JL Audio XDM800/8v2 Series Marine Amplifier is a compact and efficient Class D amplifier engineered for high-output multi-channel marine audio systems. Designed to deliver consistent power with excellent clarity, this 8-channel amplifier supports a wide range of system configurations while maintaining low distortion, strong damping control, and reliable operation in demanding marine environments.
General Specifications
Channels Monoblock / 2 / 3 / 4 / 5 / 6 / 8 Amplifier Class Class D Operating Voltage 11–14.5 VDC (12 V Models) Warranty 3 Years
Physical Dimensions
Height 2.05" (52 mm) Width 8-Channel: 14.73" (374 mm) Depth 7.09" (180 mm)
Rated Continuous Power (RMS)
14.4 V @ 4 Ω 75 W x 8 / 200 W x 4 (Bridged) 14.4 V @ 2 Ω 100 W x 8 12.5 V @ 4 Ω 60 W x 8 / 180 W x 4 (Bridged) 12.5 V @ 2 Ω 90 W x 8 28.8 V @ 4 Ω (24 V) 90 W x 8 / 180 W x 4 (Bridged) 28.8 V @ 2 Ω (24 V) 100 W x 8 25 V @ 4 Ω (24 V) 90 W x 8 / 180 W x 4 (Bridged) 25 V @ 2 Ω (24 V) 100 W x 8
Audio Performance
Signal-to-Noise Ratio (Rated Power) > 104 dB Signal-to-Noise Ratio (1 W) > 84 dB Damping Factor @ 4 Ω > 150 / 50 Hz Damping Factor @ 2 Ω > 75 / 50 Hz THD+N @ Rated Power < 1% @ 2 Ω per Channel Frequency Response 12 Hz – 22 kHz
Inputs And Electrical
Input Voltage Range (RCA) 200 mV – 4 V RMS Fuse Rating 80 A Recommended Fuse Type AFS, AGU or MaxiFuse™ Minimum Power/Ground Wire Gauge 4 AWG
Brand: JL Audio
Barcode: 0699440986861 -
