JL Audio XDM700/5 is a powerful 5-channel Class D amplifier delivering 700 W for full systems with main speakers and a dedicated subwoofer. Its compact design, clean output, and wide voltage support make it suitable for advanced marine and mobile audio setups.
- Description
- Ask a Question
-

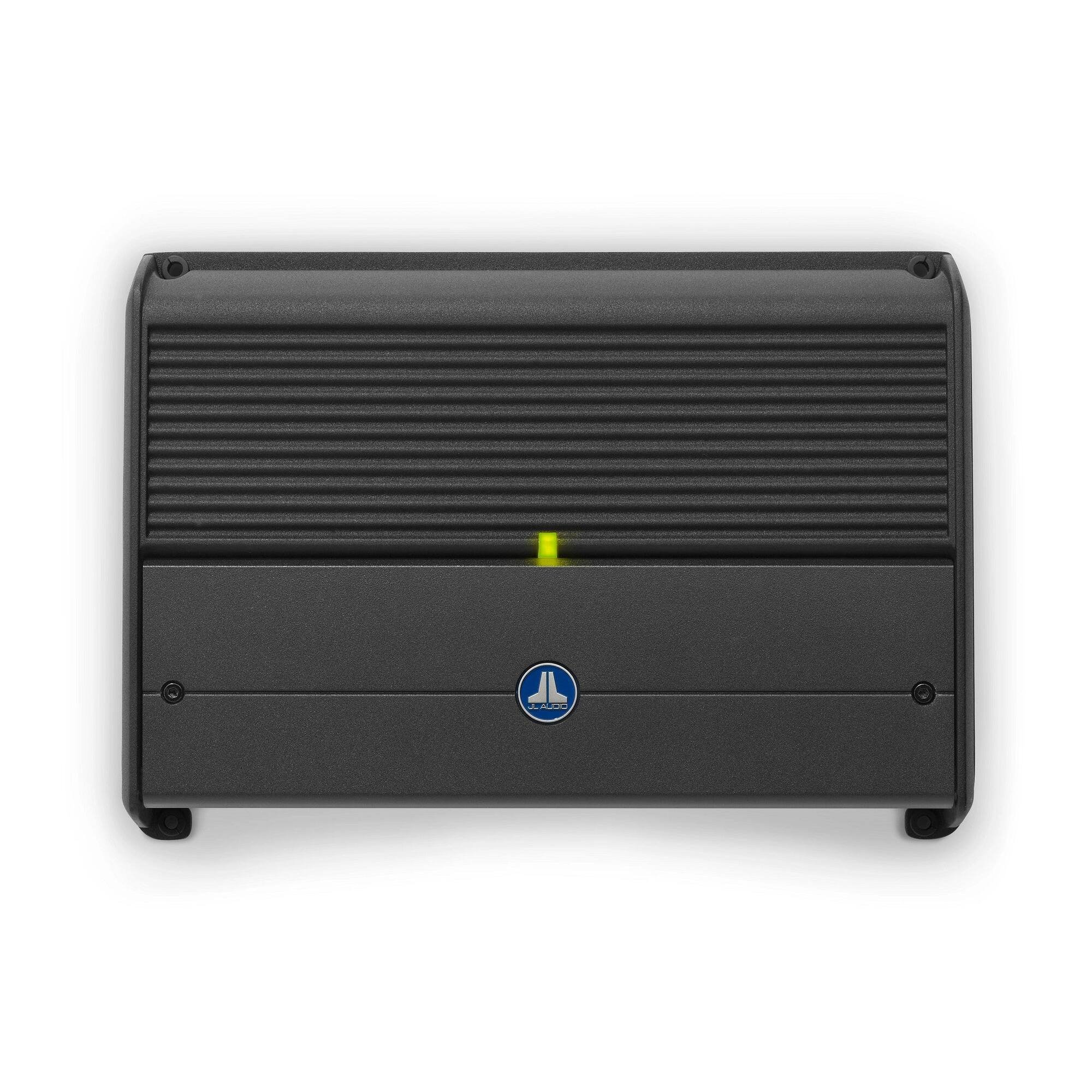

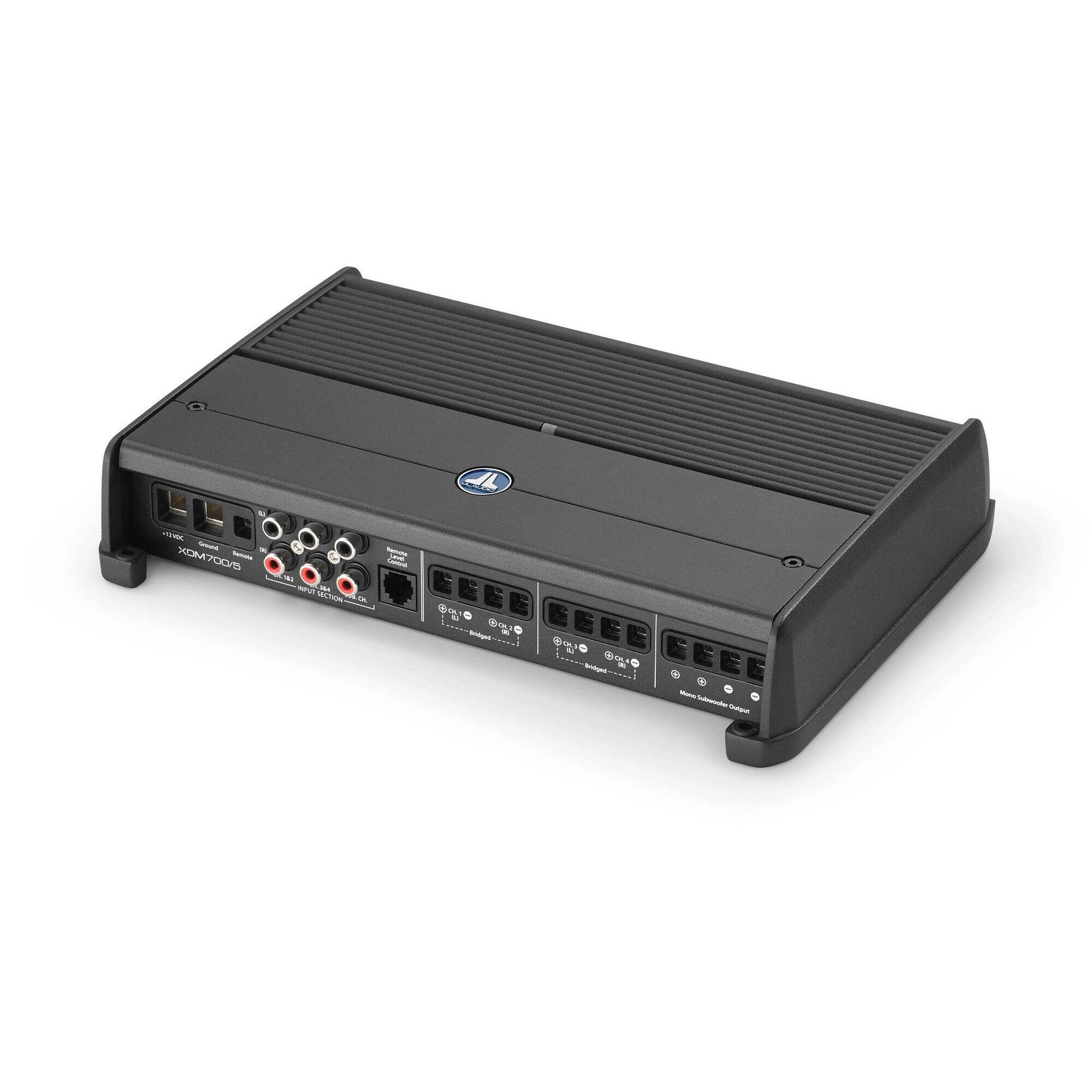

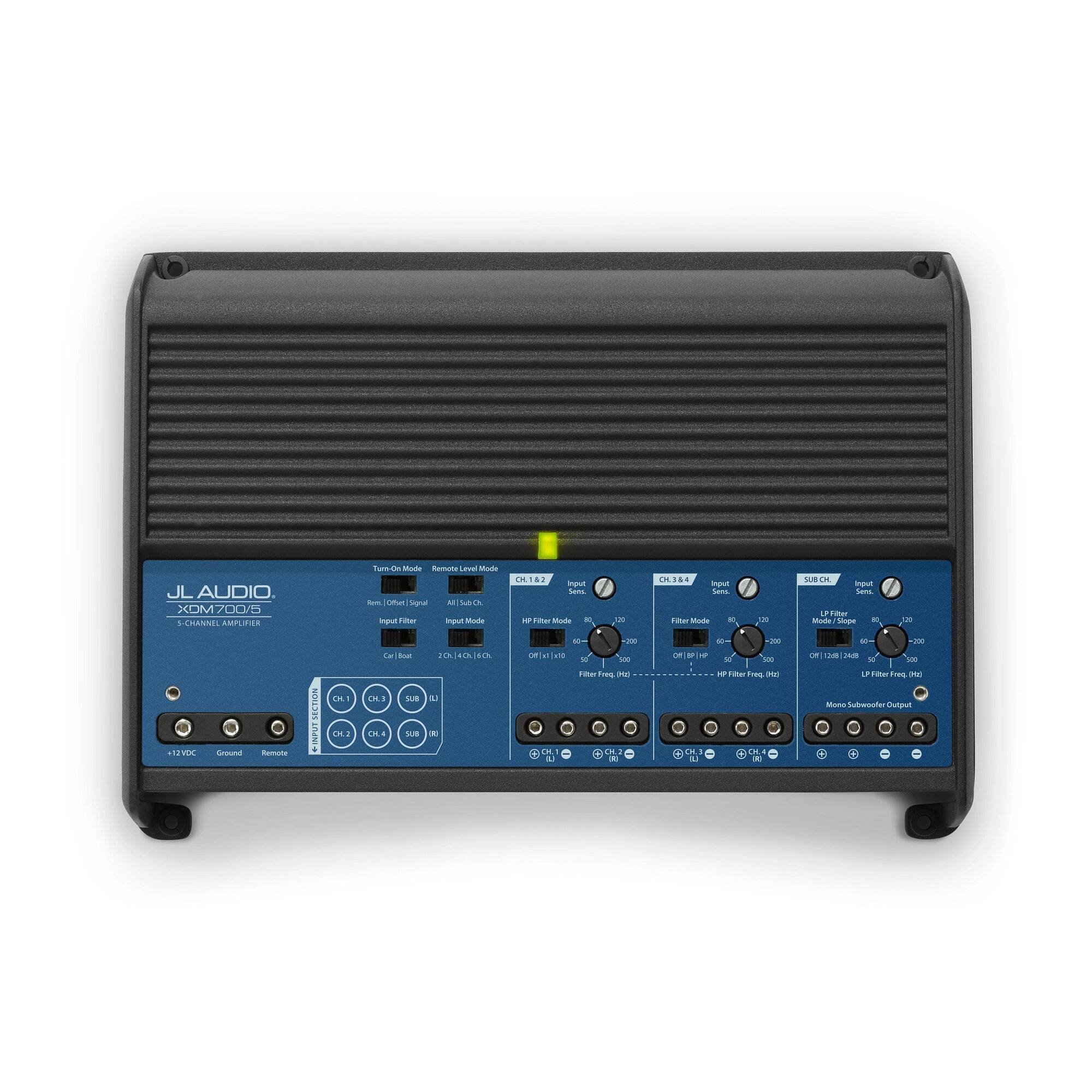

JL Audio 010-03118-00 - 5-Channel Amplifier XDM700/5 700W
The JL Audio XDM700/5 is a high-performance 5-channel Class D amplifier designed to power complete audio systems with clarity and efficiency. With a total output of 700 W, it delivers strong multi-channel performance for main speakers and a dedicated subwoofer channel. Its compact chassis, wide voltage compatibility, and low distortion design make it an excellent solution for advanced mobile and marine audio installations.
General Specifications
Channels Monoblock / 2 / 3 / 4 / 5 / 6 / 8 Amplifier Class Class D Operating Voltage 11–14.5 VDC (12 V Models) Warranty 3 Years
Physical Dimensions
Height 2.05" (52 mm) Width 5-Channel (700 W): 10.23" (260 mm) Depth 7.09" (180 mm) Weight 6.15 lbs (2.79 kg)
Rated Continuous Power (RMS)
14.4 V @ 4 Ω Main: 75 W x 4 / Sub: 180 W x 1 14.4 V @ 2 Ω Main: 100 W x 4 / Sub: 300 W x 1 12.5 V @ 4 Ω Main: 60 W x 4 / Sub: 180 W x 1 12.5 V @ 2 Ω Main: 90 W x 4 / Sub: 300 W x 1
Audio Performance
Signal-to-Noise Ratio (Rated Power) Main Channels: > 104 dB / Subwoofer: > 103 dB Signal-to-Noise Ratio (1 W) Main Channels: > 84 dB / Subwoofer: > 83 dB Damping Factor @ 4 Ω > 150 / 50 Hz Damping Factor @ 2 Ω > 75 / 50 Hz THD+N @ Rated Power < 1% @ 2 Ω per Channel Frequency Response Main: 12 Hz – 22 kHz / Sub: 10 Hz – 1 kHz
Inputs And Electrical
Input Voltage Range (RCA) 200 mV – 4 V RMS Fuse Rating 60 A Recommended Fuse Type AFS, AGU or MaxiFuse™ Minimum Power/Ground Wire Gauge 4 AWG
Additional Information
Total Power 700 W Voltage 12 V
Brand: JL Audio
Barcode: 0699440986854 -
