$ 1,305.97
1-2 weeks delivery time
-
+
JL Audio XDM1000/5v2 Marine Amplifier provides up to 1000 W of clean, reliable Class D power in a rugged marine-grade chassis, supporting flexible multi-channel and subwoofer configurations.
- Description
- Ask a Question
-

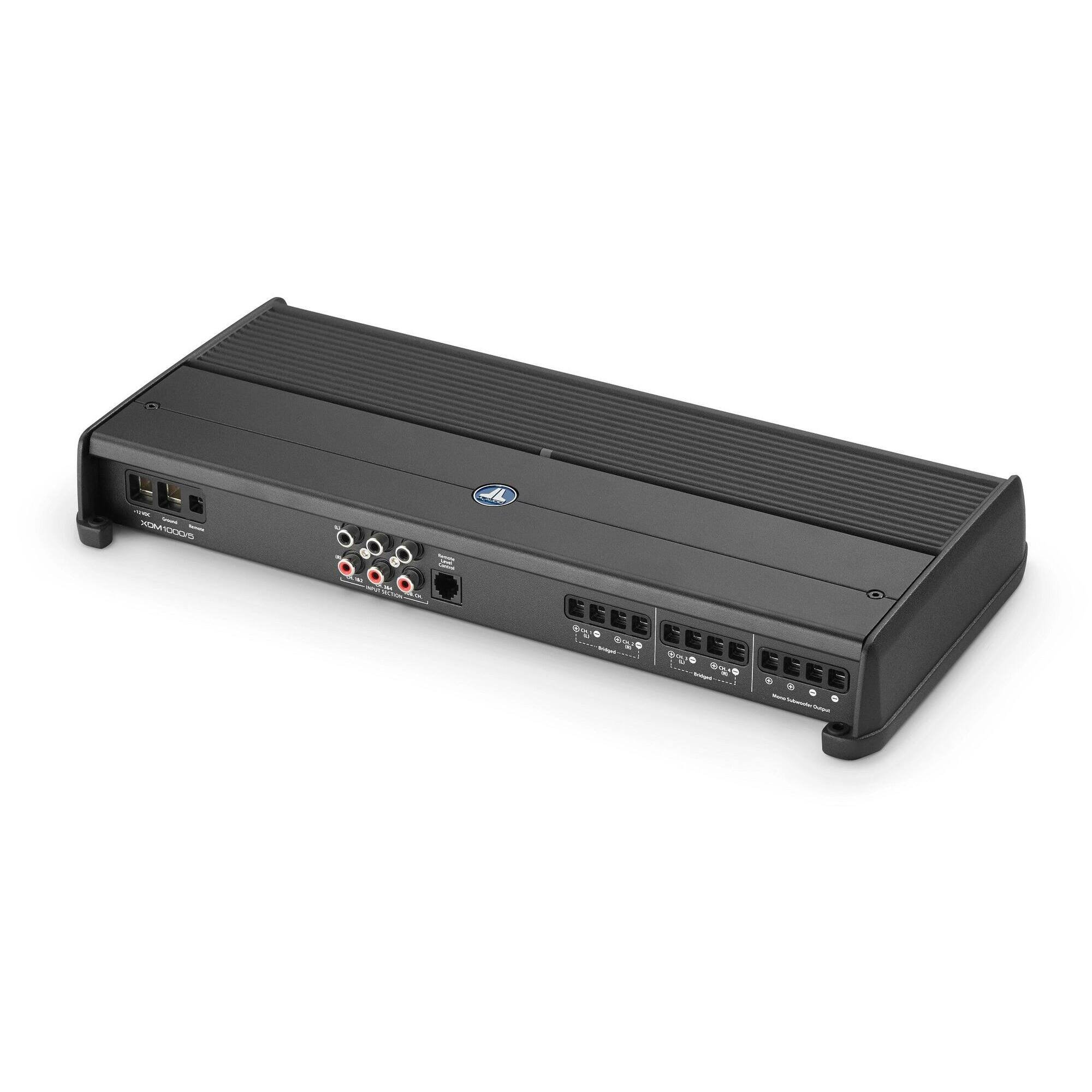

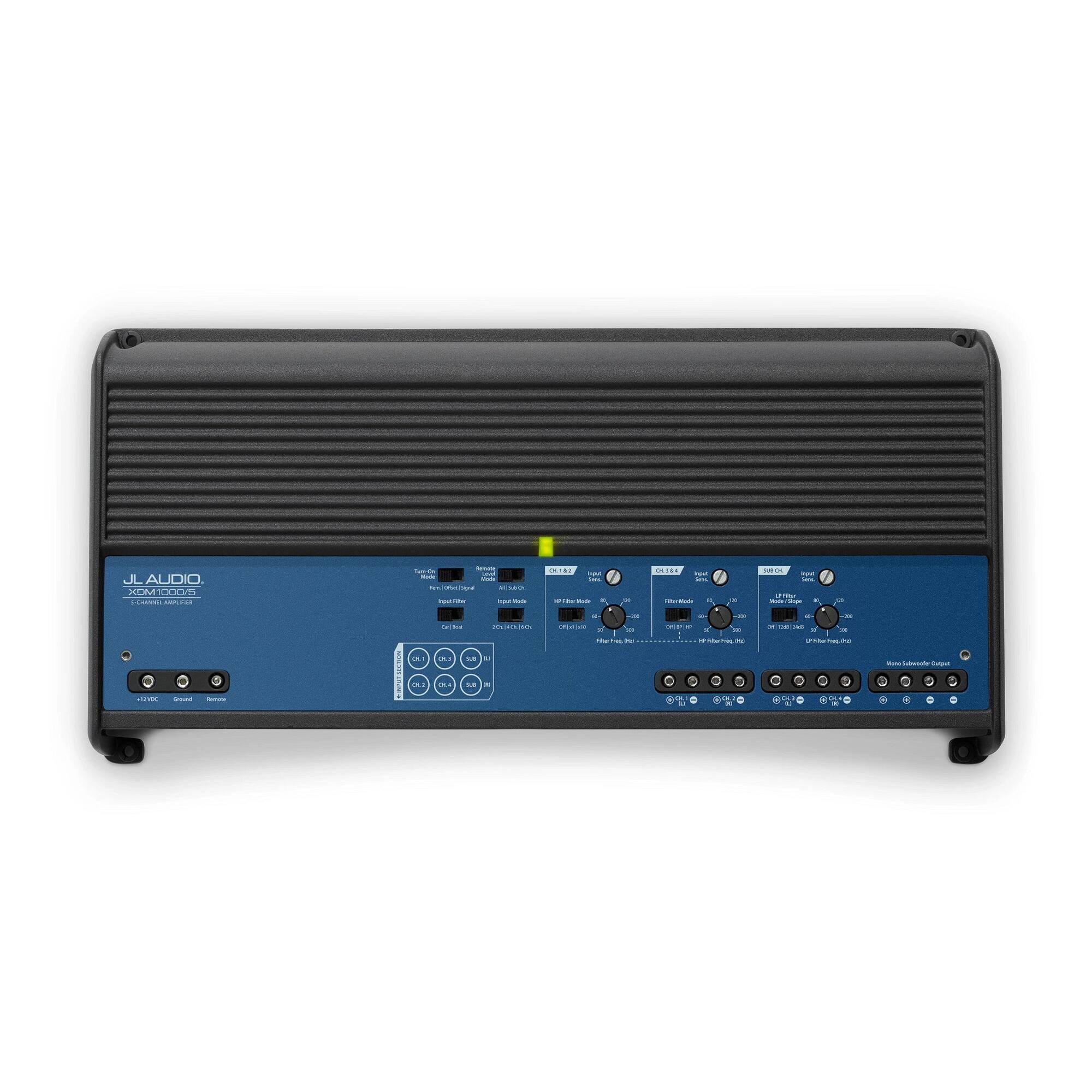

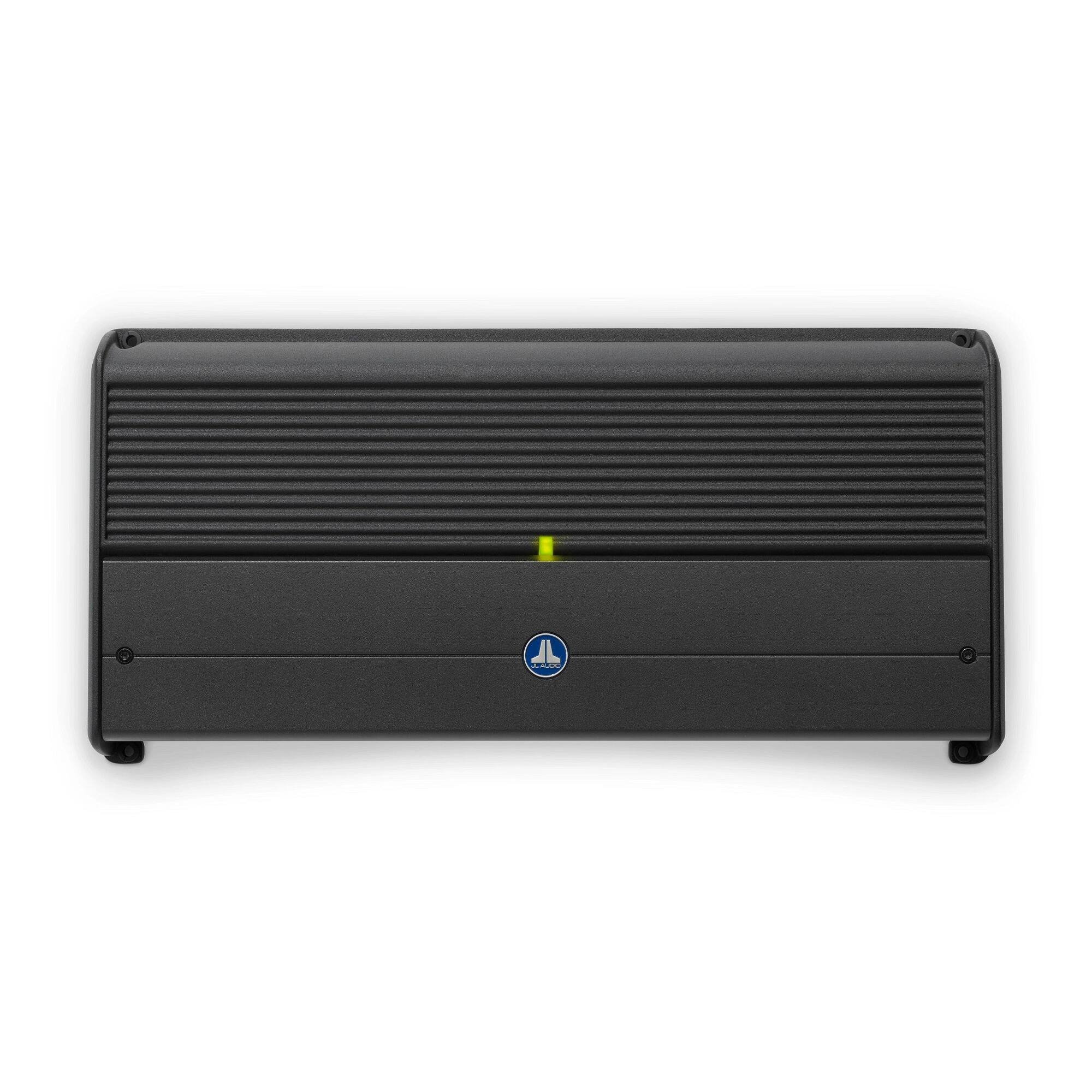

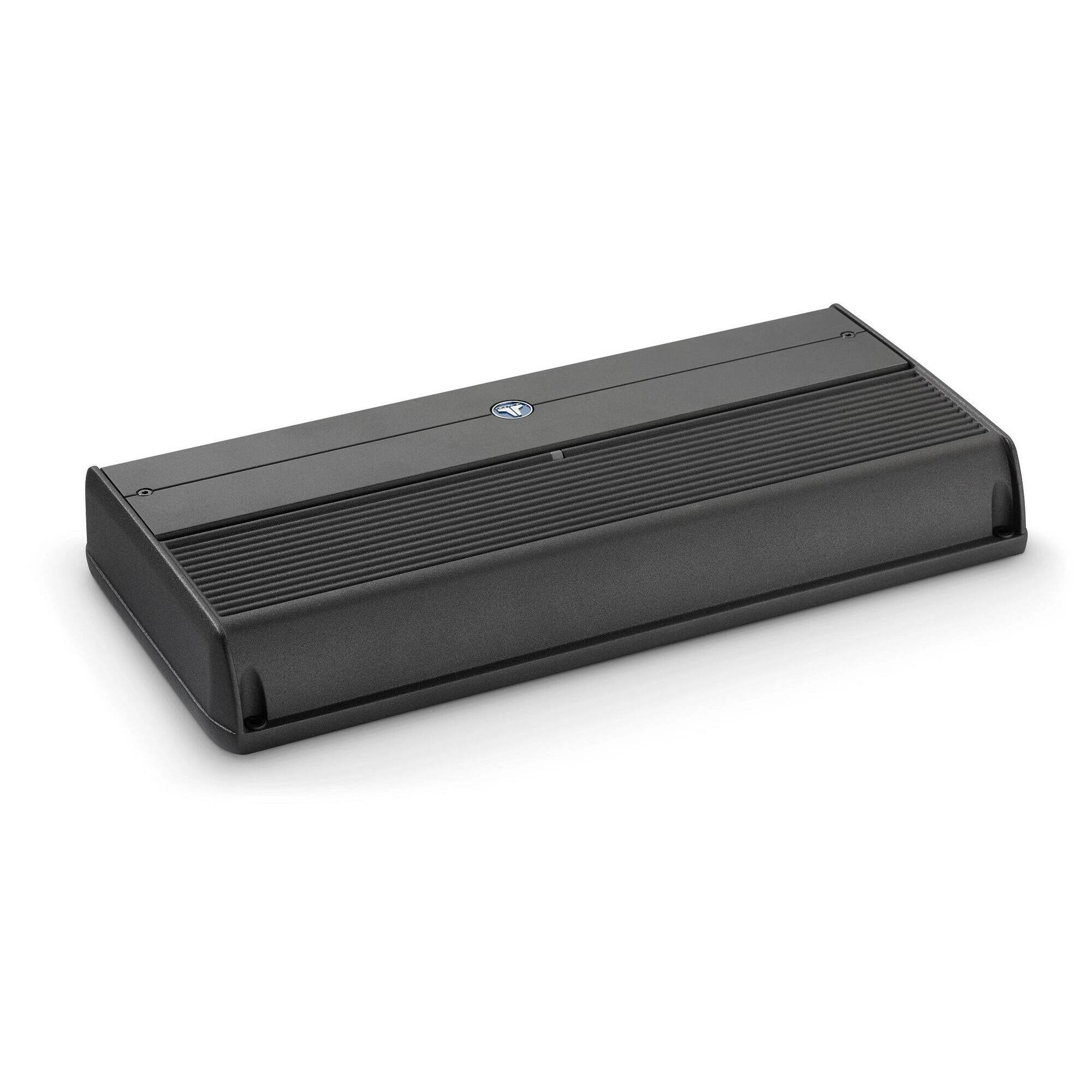

JL Audio 010-03113-00 - XDM1000/5v2 Series Marine Amplifier
The JL Audio XDM1000/5v2 series marine amplifier is engineered to deliver powerful, clean, and reliable audio performance in harsh marine environments. Built with efficient Class D amplification, it supports a wide range of system configurations, making it ideal for complex multi-speaker and subwoofer installations.
Its rugged marine-grade construction ensures long-term durability, while advanced internal design provides excellent noise control, high damping factor, and stable output across varying voltage conditions. The XDM1000/5v2 is designed for 12 V systems and delivers up to 1000 W of total power.
General Specifications
Channels Monoblock / 2 / 3 / 4 / 5 / 6 / 8 Amplifier Class Class D Operating Voltage 11–14.5 VDC (12 V Models) Warranty 3 Years Color Black
Physical Dimensions
Height 52 mm (2.05") Width 374 mm (14.73") Depth 180 mm (7.09") Weight 5-Channel (1000 W): 6.15 lbs (2.79 kg)
Power Output – 5-Channel Configuration (RMS)
14.4 V @ 4 Ohm Main: 75 W x 4 / Sub: 400 W x 1 14.4 V @ 2 Ohm Main: 100 W x 4 / Sub: 600 W x 1 12.5 V @ 4 Ohm Main: 60 W x 4 / Sub: 360 W x 1 12.5 V @ 2 Ohm Main: 90 W x 4 / Sub: 600 W x 1
Audio Performance
Frequency Response – Main Channels 12 Hz – 22 kHz Frequency Response – Subwoofer Channel 10 Hz – 1 kHz Signal-to-Noise Ratio (Max Power) > 104 dB Signal-to-Noise Ratio (1 W) Main: > 84 dB / Sub: > 83 dB Damping Factor @ 4 Ohm > 150 / 50 Hz Damping Factor @ 2 Ohm > 75 / 50 Hz THD+N < 1% @ 2 Ohm per Channel
Electrical Specifications
Input Voltage Range (RCA) 200 mV – 4 V RMS Fuse Rating 80 A Recommended Fuse Types AFS, AGU, MaxiFuse™ Minimum Power / Ground Wire Gauge 4 AWG
Technical Characteristics
Total Power 1000 W Voltage 12 V
Brand: JL Audio
Barcode: 010-03113-00 -
